TL866 series programmer has been designed and developed in 2010 by Haikou Xingong Electronic Co., in China. The XGecu brand was created in 2014. After more than ten years of development, through competitive price and high quality, XGecu TL866 series product rapidly occupies vast market and enjoys enormous growth potential.

Since the majority enter to the market, XGecu TL866 series product is praised by agents and hundreds of thousands of customers, known as "Cost-effective brand of universal programmer" in the maintenance industry.

In 2022, the new model T48 was launched. The T48 is the upgraded version of the TL866II. Based on the second generation, the T48 added support for mainstream ICs such as EMMC, high-capacity NAND, etc. The total number of supported ICs has exceeded 34,000. Overall, the new model has received good feedback from customers since its release.

On New Year's Day 2025, we have just launched new model, XGecu T76 USB3.0 100M Universal Programmer. T76 will cover all ICs that T48/T56 can support. Next, we'll spend more time on gradual software improvements. Kindly wait patiently for the updates.

In the future, XGecu will repay the love of our customers with continuous improvement and innovation, better product quality and after-sales service.

Important Notice:


Due to current high tariff policies, we advise customers from the United States to exercise caution when placing orders.
For orders from US, please note that the processing time may extend to 10 business days. We sincerely appreciate your understanding and patience.

April 27, 2025

XGecu T76 Universal Programmer

XGecu USB3.0 Type C
T76 Original 100M Universal Programmer
Powerful and high-performance design
Stronger, More Stable, Faster
New design, leading innovation
EMMC5.1 with actual transfer speed
of up to 140MB/s (8.4GB/min)

XGecu T76 Programmer

View all

Adapters for T76

View all

XGecu USB3.0 TYPE C T76 100M Universal Programmer

XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
  • Load image into Gallery viewer, XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
  • Load image into Gallery viewer, XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
  • Load image into Gallery viewer, XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
  • Load image into Gallery viewer, XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
  • Load image into Gallery viewer, XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
  • Load image into Gallery viewer, XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
  • Load image into Gallery viewer, XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
  • Load image into Gallery viewer, XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
  • Load image into Gallery viewer, XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
  • Load image into Gallery viewer, XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester
  • Load image into Gallery viewer, XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester

XGecu T76 USB3.0 Universal Programmer support EEPROM NOR NAND EMMC MCU GAL;Minpro/TL866II/T56 programmer Replacement IC tester

XGecu
$139.00
$139.00
$0.00
Sold out

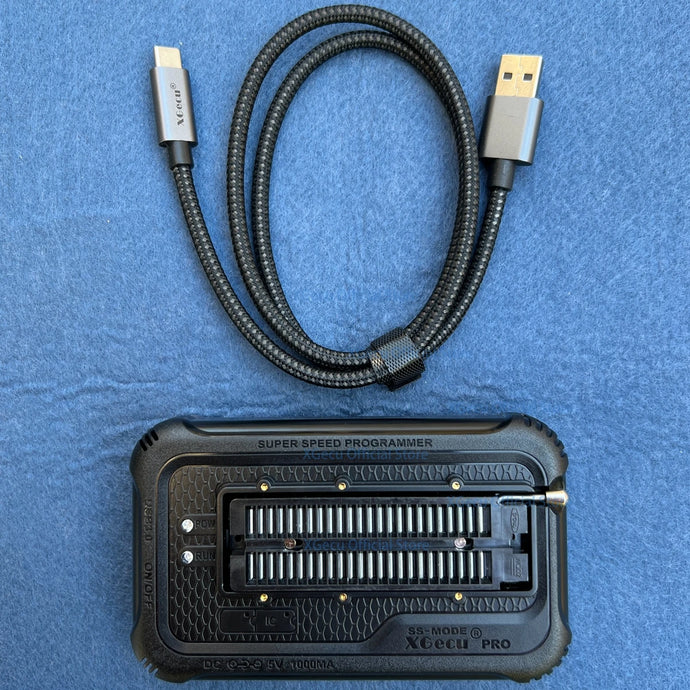

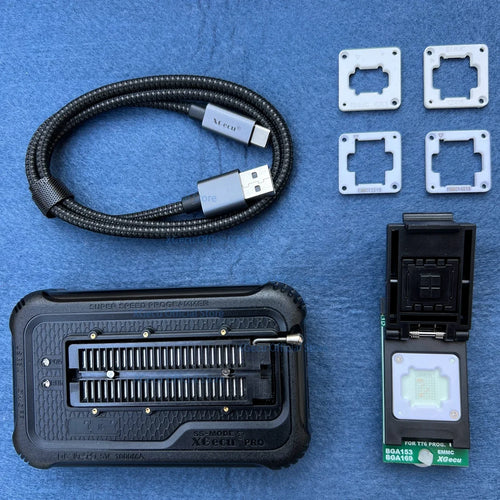

Package includes:
One pcs XGecu T76 Programmer
One pcs USB 3.0 cable










T76 Original 100M Universal Programmer: Your Expert in Chip Programming

Product Overview

Tired of cumbersome chip programming? The T76 Original 100M Universal Programmer brings you an unprecedented efficient, convenient, and reliable chip programming experience! It integrates high performance, wide compatibility, and user-friendly design, making it the ideal choice for electronic engineers, repair technicians, and DIY enthusiasts. This programmer adopts a USB 3.0 Type-C interface, boasting ultra-fast data transfer capabilities and outstanding stability, saving you valuable time and effort.

Key Advantages That Will Move You

1. Ultra-Strong Chip Compatibility:
    The T76 not only supports common EEPROM, EPROM, and FLASH chips on the market but also features robust microcontroller and programmable logic device (GAL/CPLD) support, with the capability to customize and add new chip models. Whether you're dealing with serial, parallel ROM, SPI NAND, or even EMMC/EMCP chips, the T76 handles them with ease.
    *   Supports 26, 27, 28, 29, 37, 39, 49, 50 series parallel ROM, EPROM, EEPROM;
    *   Supports 24, 25, 35, 45, 85, 93, 95 series serial EEPROM;
    *   Supports P-NAND FLASH, customizable to add new chip models;
    *   Supports SPI NAND (SD NAND/SD cards);

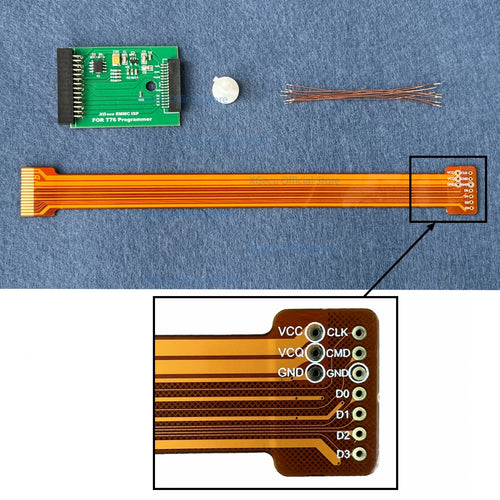

    *   Supports EMMC/EMCP;
    *   Supports microcontroller series programming;
    *   Supports GAL/CPLD programmable logic device programming;
    *   Supports VGA tool and VGA ISP programming;
    *   Supports SRAM chip testing;
    * High-performance 54/74F/LS/HC CMOS4000 series IC logic test.
    Note: The initial version of the software, with blue font features have not been added to complete, will be completed in the subsequent software upgrades, the completion of all the time is estimated to be 2-3 months!
2024.12.11

2. New Architecture, Double the Speed:
    The T76 features a high-performance 32-bit RISC-V MCU + FPGA controller, paired with a high-speed USB 3.0 Type-C interface. This configuration provides data transfer speeds up to 140MB/sec (EMMC 5.1 actual transfer rate), multiple times faster than traditional programmers! Whether you are reading or writing data, you will experience lightning-fast operation.
    *   EMMC 5.1 actual transfer rate up to 140MB/sec (8.4GB/minute).
    *   SPI NAND read speed up to 18MB/s.
    *   64 Gb P-NAND read speed of 30MB/S.

3. Superior Performance, Stable and Reliable:
    The T76 employs a high-density board design and comes with a high-quality USB 3.0 aluminum gray braided cable, ensuring stable and reliable signal transmission. In addition, the T76 offers comprehensive power protection mechanisms, including over-voltage, over-current, reverse connection protection, and low-voltage warnings, allowing you to program with peace of mind, worry-free.
    *   30% more internal components than T56, with a higher density board design.
    *   Adopts a high-quality USB 3.0 Type-C aluminum gray braided cable for stable and reliable signal transmission.
    *   VCC voltage adjustable from 1.2V to 6.5V (64-level adjustable), and VPP voltage adjustable from 6.5V to 25V (64-level adjustable).
    *   IO communication signal voltage adjustable from 1.2V to 3.6V (64-level adjustable).
    *   VCC current limit adjustable from 120mA to 450mA, VPP current limit at 150mA, both with overcurrent protection.
    *   Supports 5V <1A power supply, with a static power consumption of just 150mA (tested in standby mode).
    *   Offers comprehensive external power multi-protection, including over-voltage, reverse connection, over-current, and low-voltage tips.

4. One Device for Multiple Uses, Save on Costs:

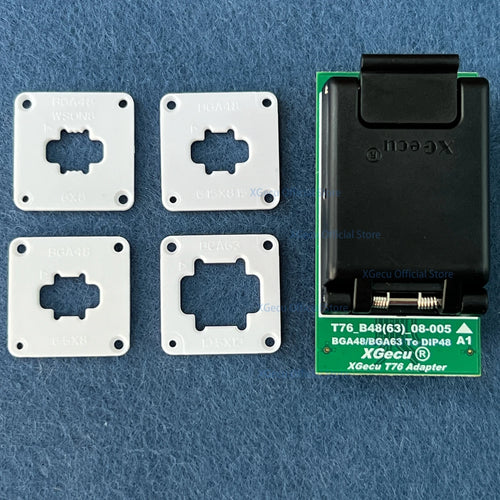

    The T76 is equipped with a high-quality BGA adapter, featuring a 4-layer board design and 2u gold-plated pins, along with anti-interference shielding grounding and spring-loaded probe IC sockets, ensuring reliable connections and a long service life. A single BGA adapter can cover a variety of chips, saving you the cost of purchasing multiple adapters.
    *   BGA48 and BGA63 two-in-one adapter reduces costs and improves quality.
    *   Easy to use with a single adapter.
    *   Adapters with impedance matching and shielding design improve read/write stability.
    *   Features six additional 2mm gold-plated grounding contacts for enhanced stability.

5. Innovative Design, Convenient Operation:
    The T76 has 76 external IO pins, 48 of which are full-function IO pins and 28 of which are dedicated IO pins. These IO pins simultaneously support high-speed/high-voltage/high-current applications, giving you more flexibility to connect and program various chips. More importantly, thanks to its innovative design, the adapter requirements for the T76 are greatly reduced. One adapter can theoretically support chips with up to 68 pins (included) in the same package, greatly reducing adapter usage cost and complexity.

More Features You Can't Miss

*Compact and Portable:
  With dimensions of only 12mm x 7mm x 2.8mm, the T76 is lightweight and portable, allowing you to perform chip programming anytime, anywhere.

*No External Power Supply Required:
  No external power supply is required for all chip programming operations, making it simple and convenient.

Order Now and Start Your Efficient Programming Journey

What are you waiting for?

The T76 Original 100M Universal Programmer will become an indispensable and reliable assistant for your work and study! Whether you are an electronic engineer, a repair technician, or a DIY enthusiast, the T76 can bring you an unprecedented efficient, convenient, and reliable chip programming experience.

After-Sales Service

*  We provide professional after-sales service.
   The new product has just been released, if you encounter any problems during use, please feel free to contact us at any time.













New Model XGecu T48 (TL866 3rd generation)

Cool and Portable, Easy to use;
40PIN industrial high-quality Socket: Pluggable/ Replaceable;
16PIN Multi-functional ISP;
Total 56-channel dedicated IO;
56-channel high-speed high-voltage isolation;
32-bit MCU 120MHZ, 4-layer PCB Design;
USB2.0 HS 480MHZ;
Support VPP voltage up to 25V;
Support NAND EMMC capacity up to 256GB
Programming Stability Faster Reliability

V12.78 Original XGecu NEW T48 [TL866-3G]Programmer Support 34600+ ICs for SPI/Nor/NAND Flash/EMMC BGA153/162/169/100/221 TSOP/SOP/PLCC
V12.78 Original XGecu NEW T48 [TL866-3G]Programmer Support 34600+ ICs for SPI/Nor/NAND Flash/EMMC BGA153/162/169/100/221 TSOP/SOP/PLCC
V12.78 Original XGecu NEW T48 [TL866-3G]Programmer Support 34600+ ICs for SPI/Nor/NAND Flash/EMMC BGA153/162/169/100/221 TSOP/SOP/PLCC
V12.78 Original XGecu NEW T48 [TL866-3G]Programmer Support 34600+ ICs for SPI/Nor/NAND Flash/EMMC BGA153/162/169/100/221 TSOP/SOP/PLCC
V12.78 Original XGecu NEW T48 [TL866-3G]Programmer Support 34600+ ICs for SPI/Nor/NAND Flash/EMMC BGA153/162/169/100/221 TSOP/SOP/PLCC
V12.78 Original XGecu NEW T48 [TL866-3G]Programmer Support 34600+ ICs for SPI/Nor/NAND Flash/EMMC BGA153/162/169/100/221 TSOP/SOP/PLCC
  • Load image into Gallery viewer, V12.78 Original XGecu NEW T48 [TL866-3G]Programmer Support 34600+ ICs for SPI/Nor/NAND Flash/EMMC BGA153/162/169/100/221 TSOP/SOP/PLCC
  • Load image into Gallery viewer, V12.78 Original XGecu NEW T48 [TL866-3G]Programmer Support 34600+ ICs for SPI/Nor/NAND Flash/EMMC BGA153/162/169/100/221 TSOP/SOP/PLCC
  • Load image into Gallery viewer, V12.78 Original XGecu NEW T48 [TL866-3G]Programmer Support 34600+ ICs for SPI/Nor/NAND Flash/EMMC BGA153/162/169/100/221 TSOP/SOP/PLCC
  • Load image into Gallery viewer, V12.78 Original XGecu NEW T48 [TL866-3G]Programmer Support 34600+ ICs for SPI/Nor/NAND Flash/EMMC BGA153/162/169/100/221 TSOP/SOP/PLCC
  • Load image into Gallery viewer, V12.78 Original XGecu NEW T48 [TL866-3G]Programmer Support 34600+ ICs for SPI/Nor/NAND Flash/EMMC BGA153/162/169/100/221 TSOP/SOP/PLCC
  • Load image into Gallery viewer, V12.78 Original XGecu NEW T48 [TL866-3G]Programmer Support 34600+ ICs for SPI/Nor/NAND Flash/EMMC BGA153/162/169/100/221 TSOP/SOP/PLCC

V12.78 Original XGecu NEW T48 [TL866-3G]Programmer Support 34600+ ICs for SPI/Nor/NAND Flash/EMMC BGA153/162/169/100/221 TSOP/SOP/PLCC

$49.00
$49.00
$0.00
Sold out

XGecu Official Store!!!
Professional after-sale service!!!
100% Original!!!

T48 (TL866-3G) programmer manufacturer,
Haikou Xingong Electronics Co., Ltd.

Official website:
www.xgecu.com/EN

T48 (TL866-3G) English manual download link: (similar as TL866II/T56)
xgecu.com/MiniPro/T56_TL866II%20USER%20GUIDE.pdf

Latest software download link (will be updated in the future):
www.mediafire.com/folder/hfg5kfj7euw5j/xgecu
(If you cannot download or downloading speed is very slow, please send message to us, we will send to your mail box)

T48 Support Device List:
www.xgecu.com/MiniPro/T48_List.txt
(please note: before buying, make sure the models you want to program are in the support list!)
Please note: The new model has just been launched and the software is much to be improved, so please contact us to resolve at first if you have any questions and suggestions.

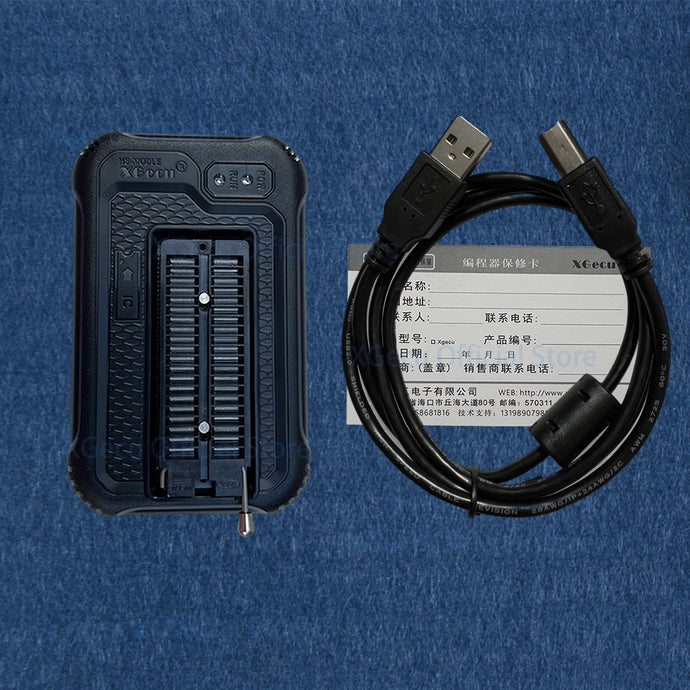

Package include:
One T48 Programmer
One USB cable
One Warranty Card

Description:

With 40-pin industrial high-quality ZIF Socket (Pluggable/replaceable), newest model T48 (TL866-3G) programmer is the improvement of TL866II Plus programmer. Based on 32-bit MCU with 120MHZ and 4-layer PCB design, this professional T48 programmer support high-capacity NAND EMMC up to 256GB and programming speed is much higher. Suppport high-voltage chips, VPP Maximum up to 25V, that is what TL866II cannot achieve. Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small (size is almost the same as TL866II), code-runs much faster, support multilanguage menu (English, Chinese, Russian, Polish, German, Spanish, Portuguese, Turkish, Czech, Italian), it can automatically identify the operating system to install and run under Windows XP,2003,2008,Vista  Win7 WIN8 WIN10 WIN11. Overall, T48 offers significantly improved performance and excellent value for money.
