17-in-1 SMD Adapter Support SOP8 SOP16 WSON8 TSSOP8 XSON8 DFN8 USON8 WLCSP TDFN8 BGA12 BGA8 BGA24 TO DIP8 Conversion NOR SPI FLASH NAND

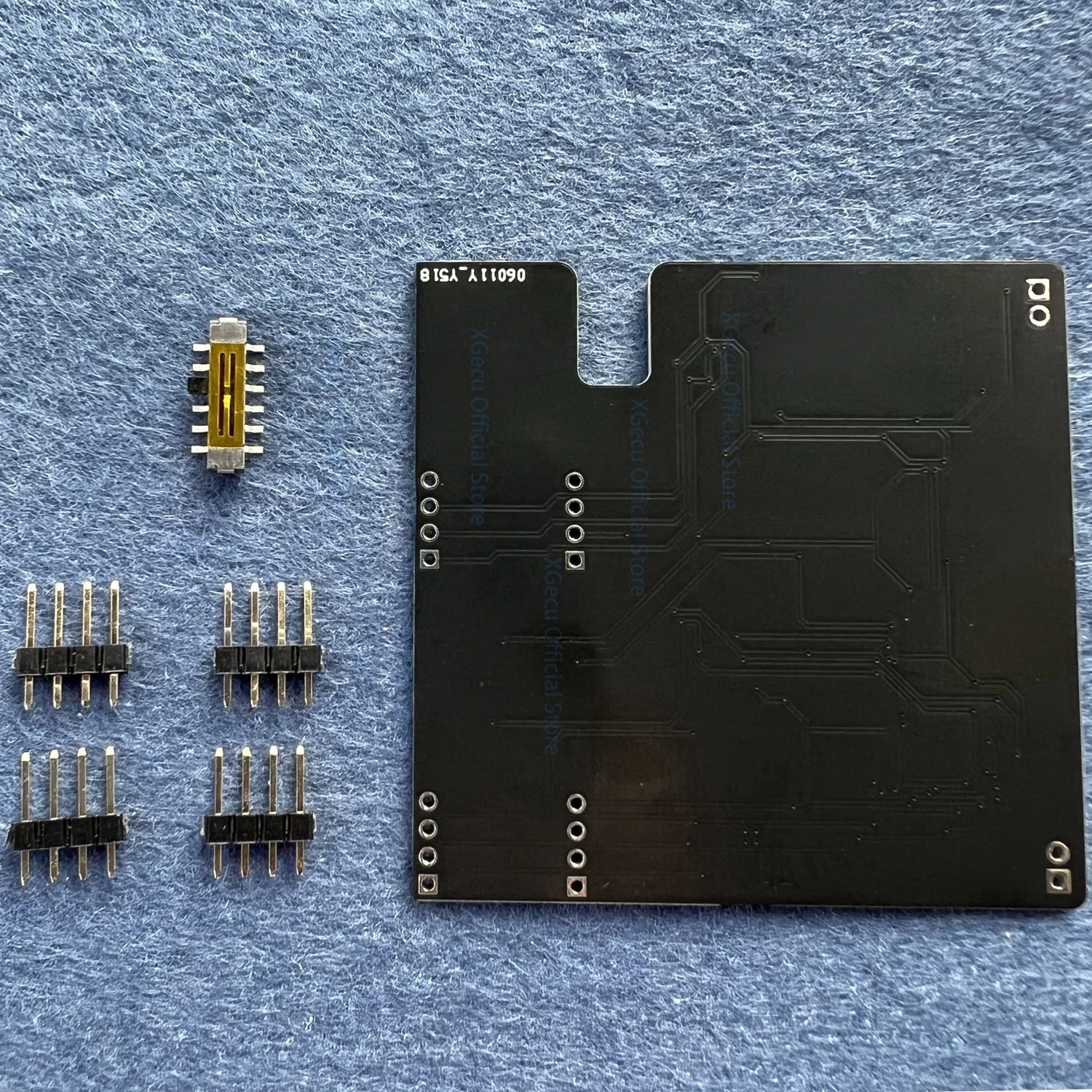

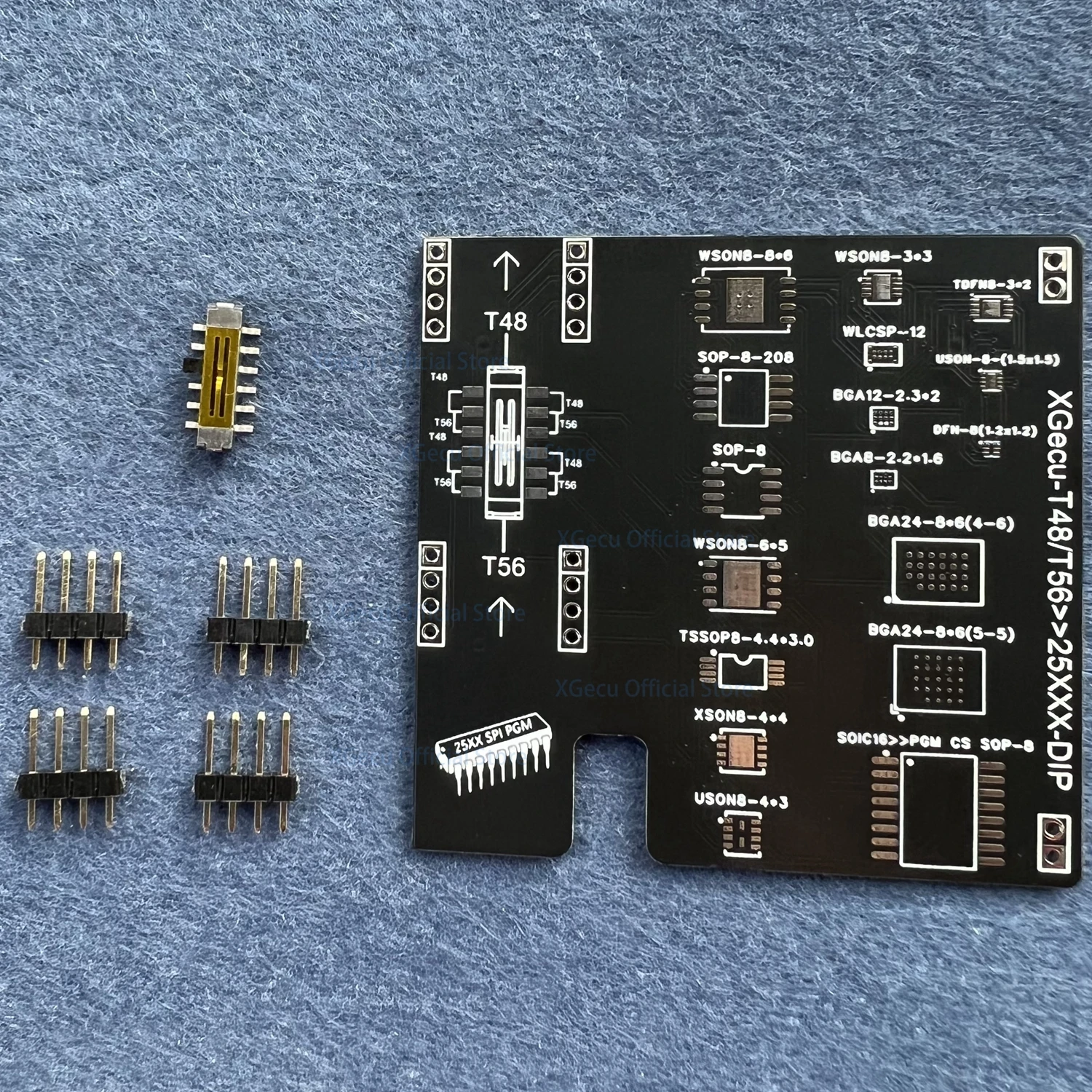

Note: Components are unsoldered. You need to solder the pins and switches yourself.

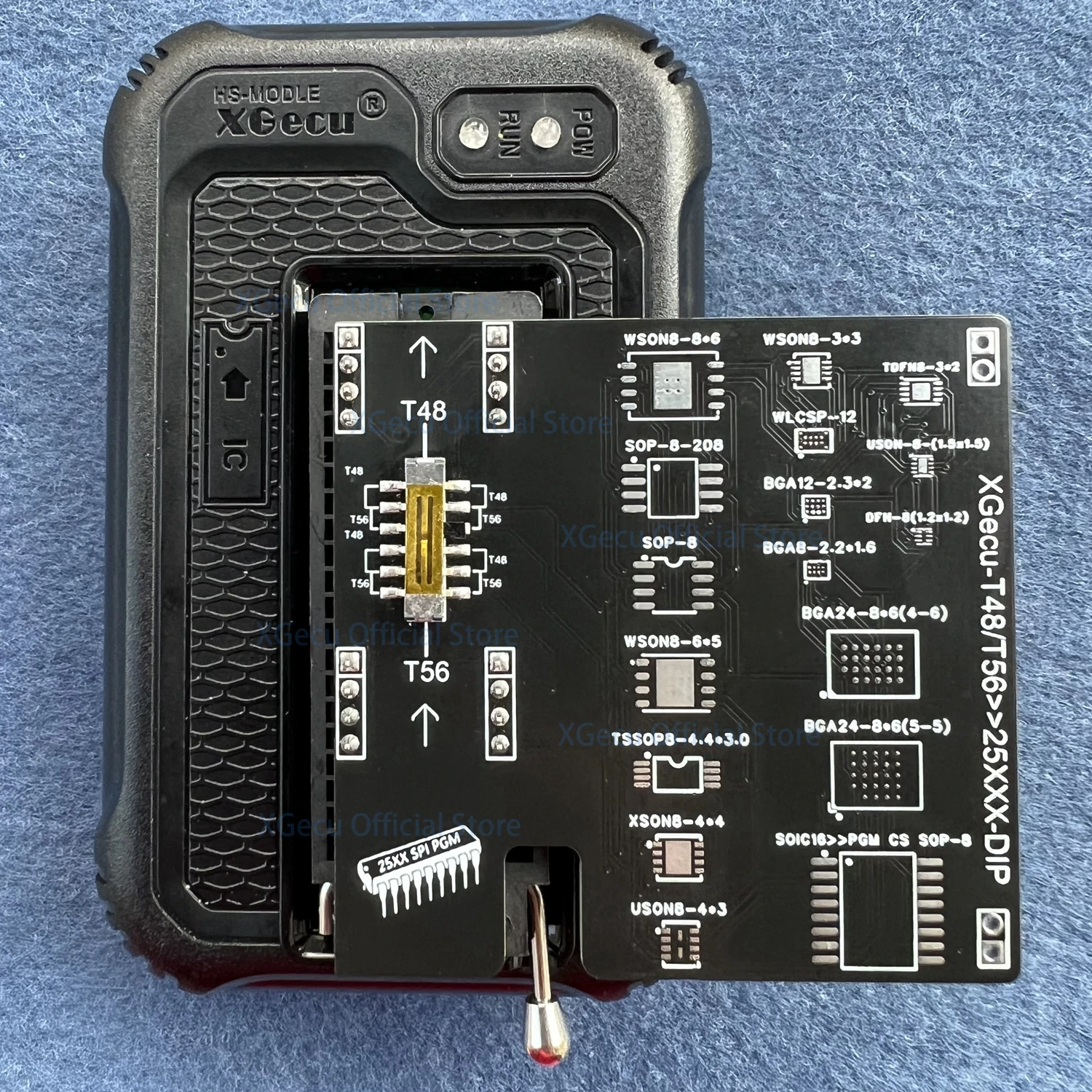

Description:Support 17 kinds of different packages memory chip conversion to DIP8 package, through a small switch to convert the T48 or T56 programmer to use, the use of high-quality PCB board, easy to use, inexpensive, very suitable for amateur use, can save you a lot of money.

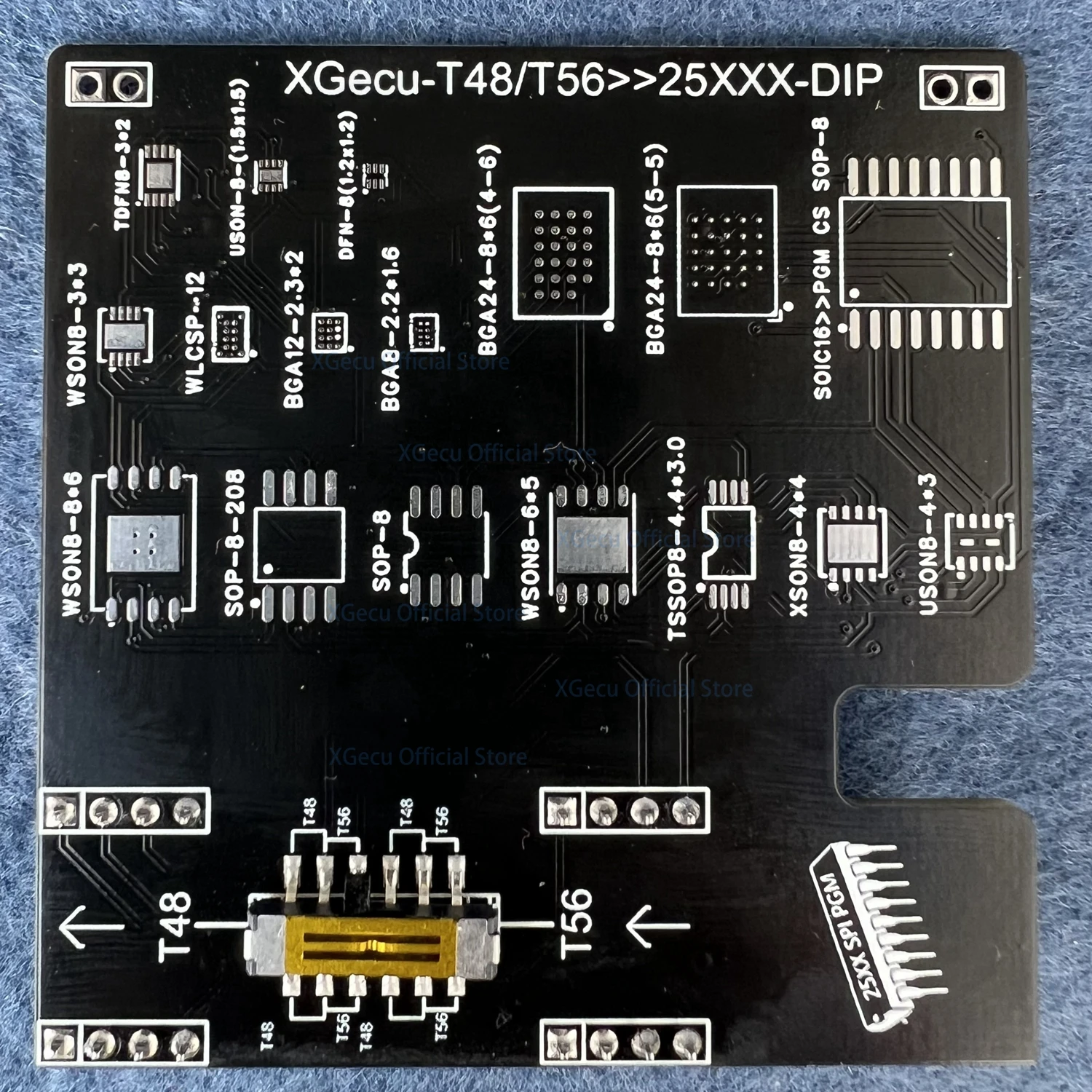

List of 17 IC packages supported:
1.SOP8 150mil
2.SOP8 200mil
3.SOP16 300mil
4.WSON8 8*6
5.WSON8 6*5
6.TSSOP8 4.4*3.0
7.XSON8 4*4
8.USON8 4*3
9.WSON8 3*3
10.WLCSP-12
11.BGA12 2.3*2
12.BGA8 2.2*1.6
13.BGA24 8*6(4-6)
14.BGA24 8*6(5-5)
15.TDFN8 3*2
16.USON8 1.5*1.5
17.DFN8 1.2*1.2
