T48 (TL866-3G) programmer manufacturer,
Haikou Xingong Electronics Co., Ltd.
Official website:
www.xgecu.com/EN
T48 (TL866-3G) English manual download link: (similar as TL866II/T56)
xgecu.com/MiniPro/T56_TL866II%20USER%20GUIDE.pdf
Latest software download link (will be updated in the future):
www.mediafire.com/folder/hfg5kfj7euw5j/xgecu
(If you cannot download or downloading speed is very slow, please send message to us, we will send to your mail box)
T48 Support Device List:
www.xgecu.com/MiniPro/T48_List.txt
(please note: before buying, make sure the models you want to program are in the support list!)
Please note: The new model has just been launched and the software is much to be improved, so please contact us to resolve at first if you have any questions and suggestions.
Description:
With 40-pin industrial high-quality ZIF Socket (Pluggable/replaceable), newest model T48 (TL866-3G) programmer is the improvement of TL866II Plus programmer. Based on 32-bit MCU with 120MHZ and 4-layer PCB design, this professional T48 programmer support high-capacity NAND EMMC up to 256GB and programming speed is much higher. Suppport high-voltage chips, VPP Maximum up to 25V, that is what TL866II cannot achieve. Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small (size is almost the same as TL866II), code-runs much faster, support multilanguage menu (English, Chinese, Russian, Polish, German, Spanish, Portuguese, Turkish, Czech, Italian), it can automatically identify the operating system to install and run under Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11. Overall, T48 offers significantly improved performance and excellent value for money.
XGecu T48 (TL866-3G) hardware Parameters:
* 32-bit MCU with 120MHZ, 4-layer PCB Design, USB2.0 HS 480MHZ
* Volume: 10X6.5X2.8 cm (almost the same as TL866II)
* 16 channel ISP
Total 56-channel dedicated IO
56-channel high-speed high-voltage isolation
* VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable.
* Power consumption: 5V <500MA. Static power consumption: 60mA. Without external power supply interface.
* Self-test function, self-test each pin of VPP/VCC/GND/IO
* Suitable for developers and maintenance personnel, can do small batch production for high capacity chips, support simultaneously working with 4 Programmers on each computer.
*Support operating Systems: Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11

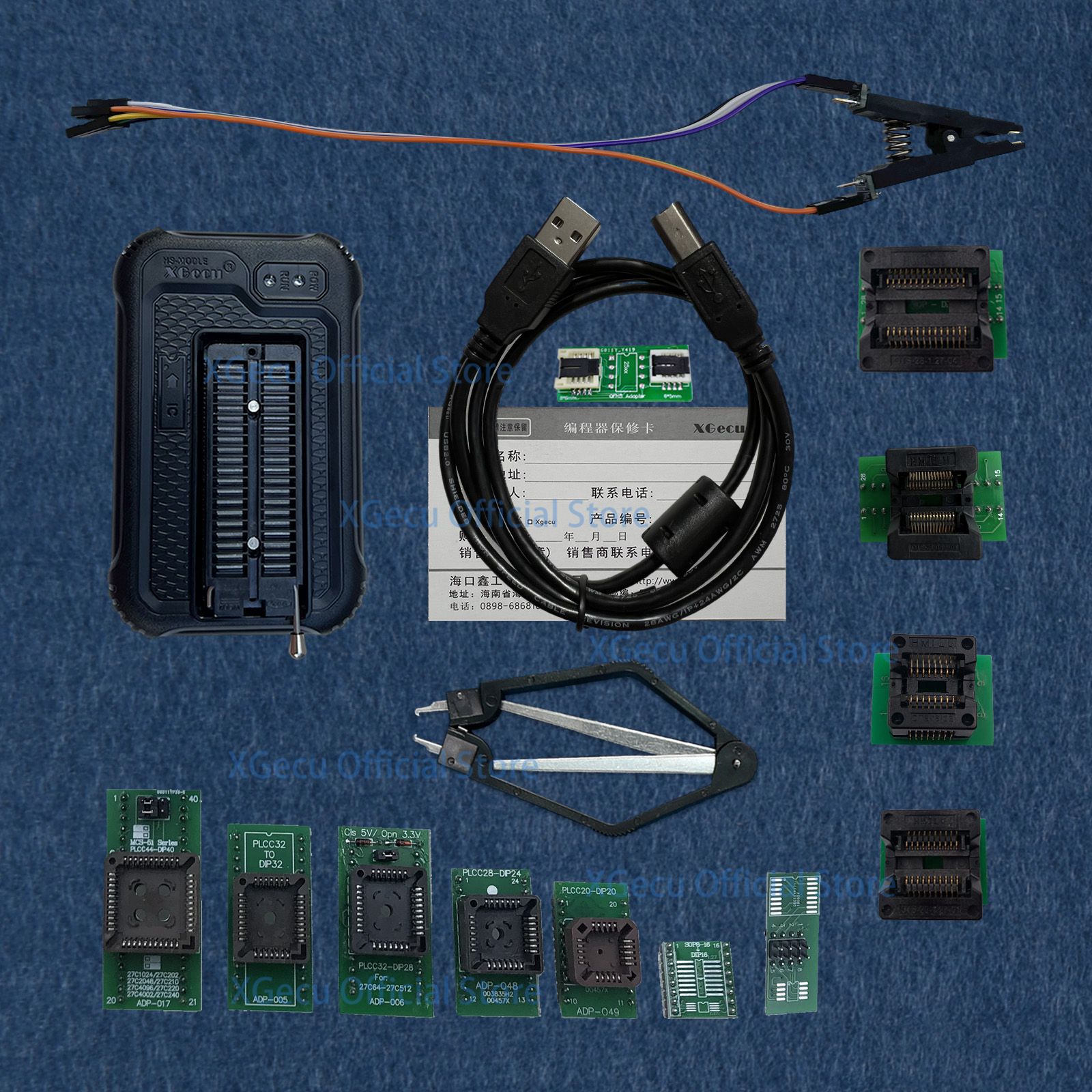

Package include:
One T48 Programmer
One USB cable
One Warranty Card
One QFN8 two-in-one adapter (no need to desolder, for both size 6*5MM and 8*6MM chips)
One SOP20-DIP20 200mil ZIF adapter (Functionally equivalent to 4 adapters: SOP8 200mil, SOP14 200mil, SOP16 200mil and SOP20 200mil)
One SOP28-DIP28 300mil ZIF adapter (Functionally equivalent to 4 adapters: SOP16 300mil, SOP20 300mil and SOP24 300mil and SOP28 300mil)
One SOP16-DIP16 150mil ZIFadapter (Functionally equivalent to 3 adapters: SOP8 150mil, SOP14 150mil and SOP16 15mil)
One TSSOP28-DIP28 170mil ZIF adapter (Functionally equivalent to 5 adapters: SOP8 170mil, SOP16 170mil, SOP20 170mil, SOP24 170mil, SOP28 170mil)
One SOIC 8-16 SMD adapter
One TSSOP8 and SOP16 SMD adapter

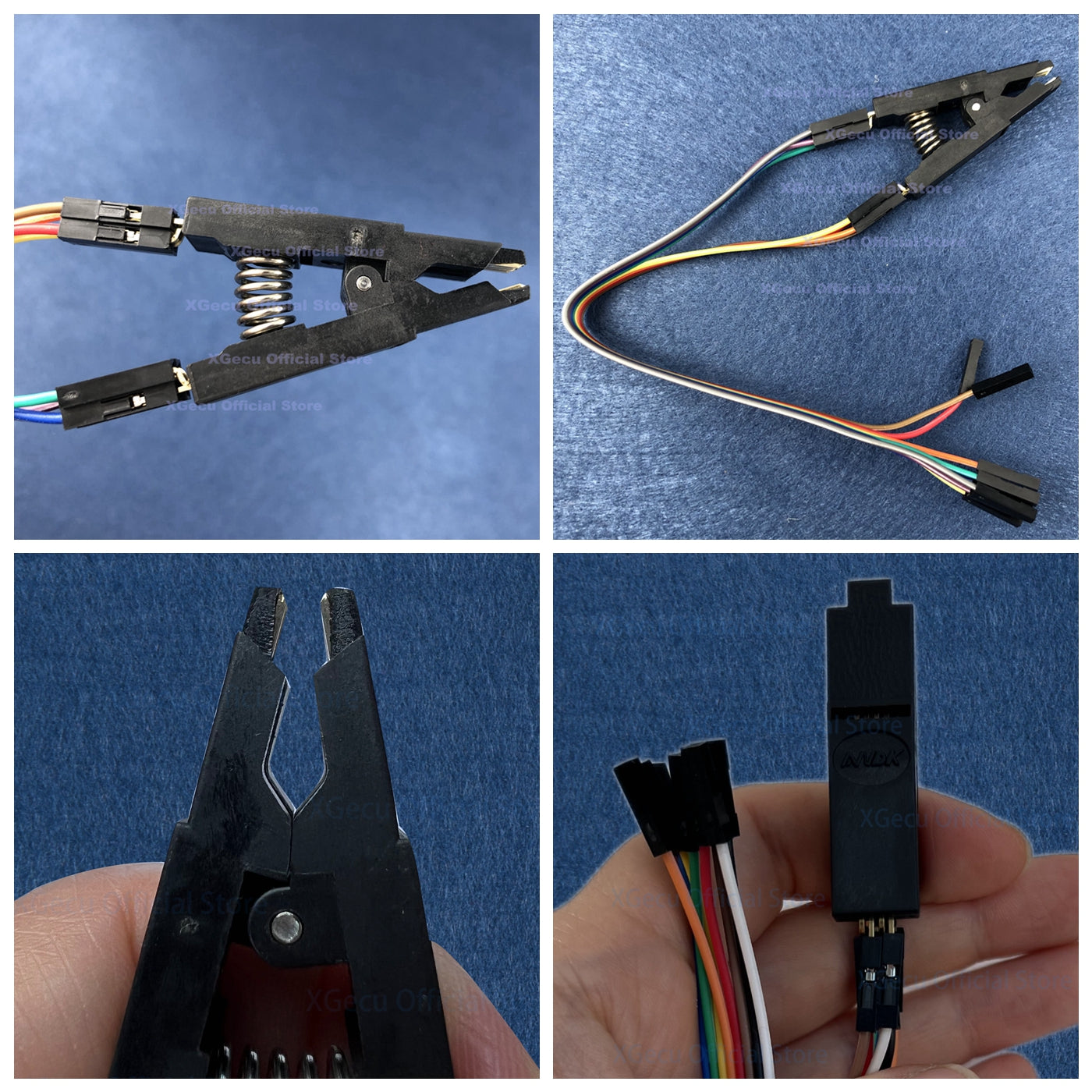

One ANDK SOIC SOP8 IC test clip/ IC clamp
One PLCC44-DIP40 2-in-1 adapter
One PLCC32-DIP32 adapter
One PLCC32-DIP28 adapter (support low voltage IC)
One PLCC28-DIP24 adapter
One PLCC20-DIP20 adapter
One PLCC IC extractor
