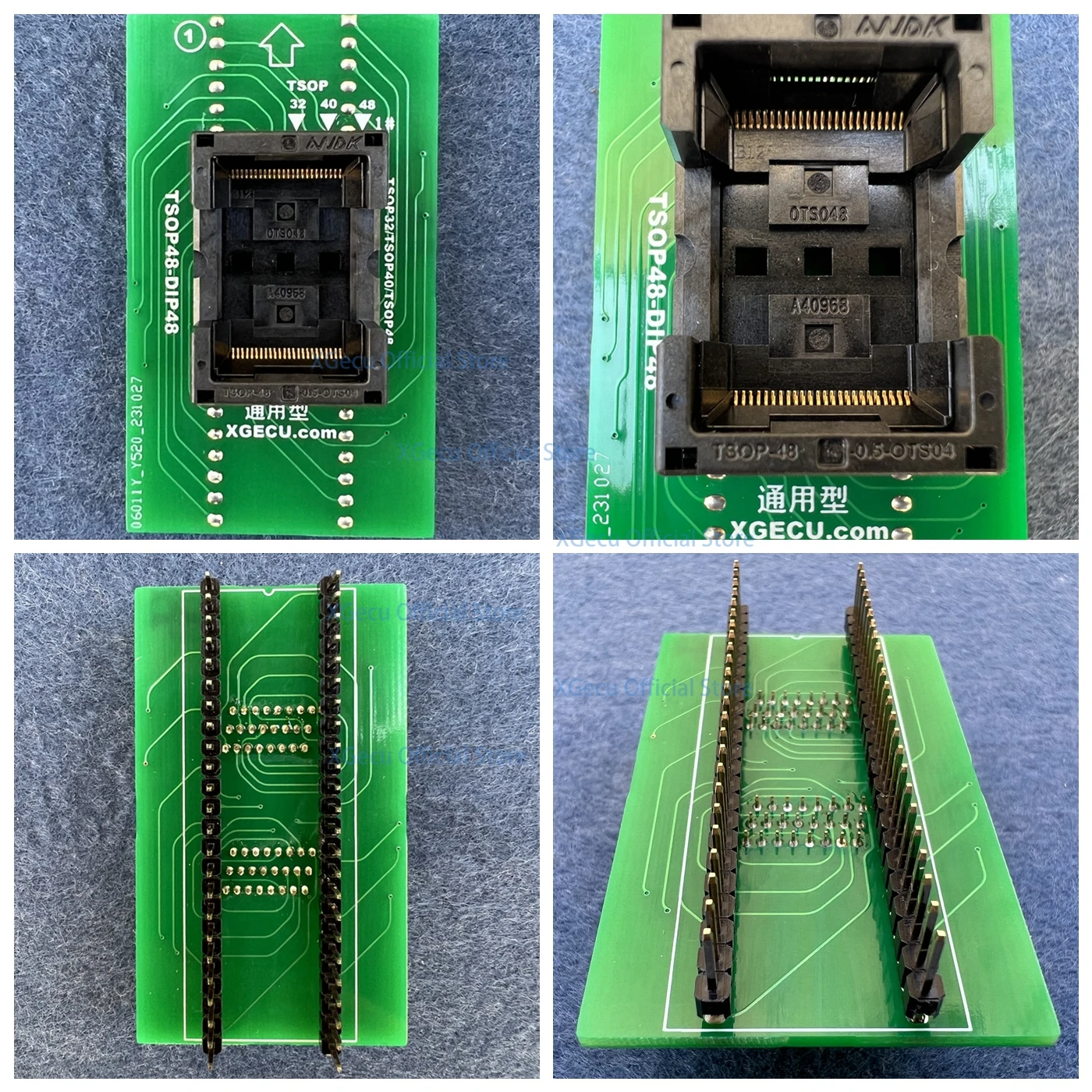

XGECU TSOP48-DIP48 Adapter SN-ADP-048-0.5/70-0065 / SA247/ for 48 pin ZIF universal programmer e.g. T56 RT809H TNM5000 TNM7000 Dataman beeprog+
China ANDK socket,model TSOP48-0.5-OTS04 ,good quality and cheap

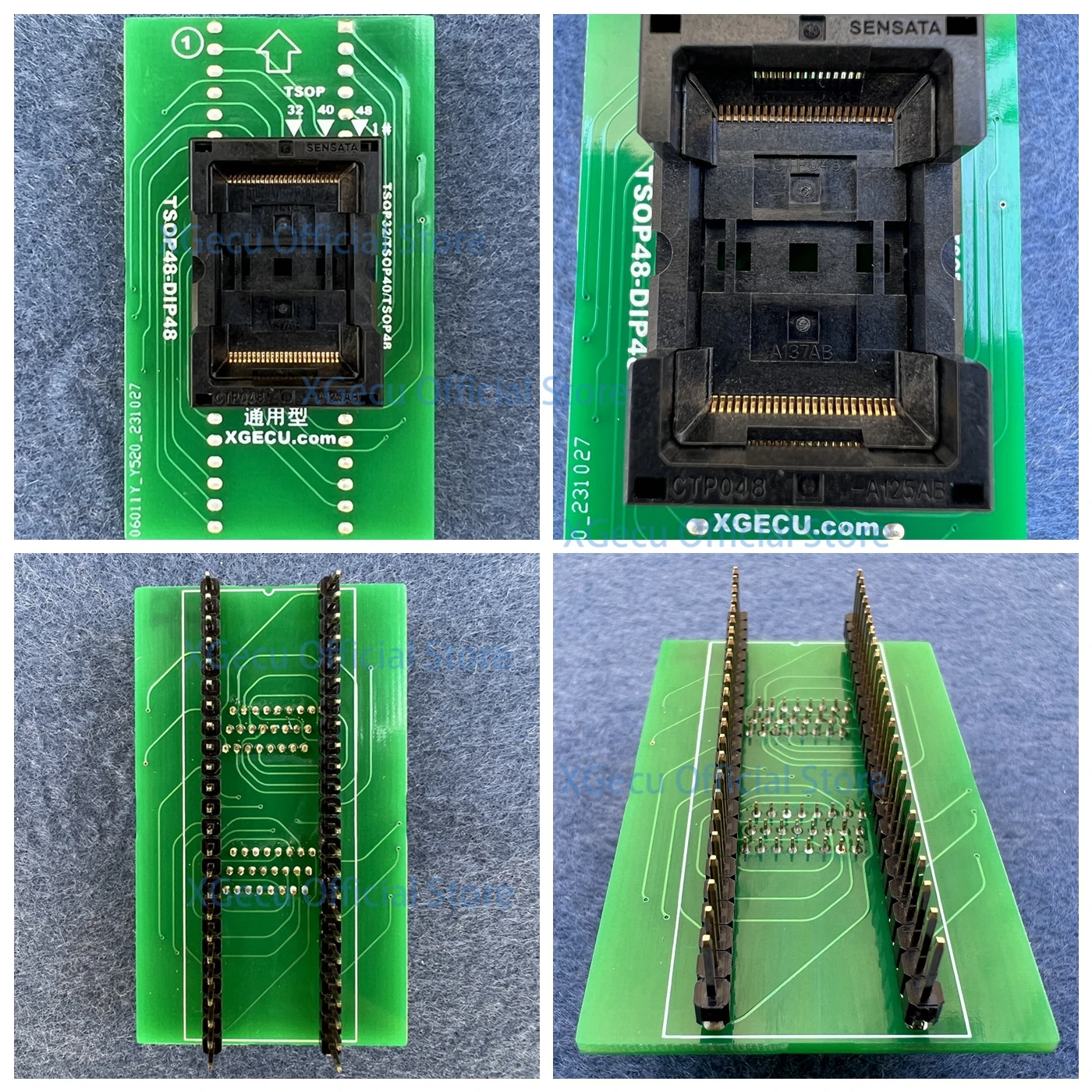

Or original US SENSATA socket, model CTP048-A125AB , top quality, long life.
Ord. no.: 70-0065 or SA247 or SN-ADP-048-0.5
Socket: ZIF TSOP48, OpenTop type
Bottom: 2 rows, 2x 24 pins, square, 0.6x0.6mm, rows spacing 600mil
Class: Universal
Subclass: DIL/TSOP
Description:
Body: 12mm x 18.4mm
Pitch: 0.5mm
XGECU TSOP48-DIP48 adapters are designed using the programmer's original circuitry to maximize wiring optimization, reduce noise, and performance due to the common double-layer PCB TSOP48 -56 adapters, which are the best partners for burning NOR and NAND with T56 programmers.
It is widely used in many different programmers with 48-pin ZIF socket. It can be used on:
XGecu T56 / RT809H / TNM5000 TNM7000 / Dataman / top2048 / top2049 / Superpro / ELNEC / Wellon programmer / EasyPRo and many other 48 pin ZIF universal programmers.
Please note: This adapter will not work on T48/TL866II Plus/TL866A/TL866CS programmer and all 40-pin ZIF programmers.
Please note: This adapter cannot be used on programmer Labtool 48/UXP, because its pin correspondence is different from other universal programmers.
Package include:
one pcs XGECU TSOP48-DIP48 adapter with ANDK socket or SENSATA socket
