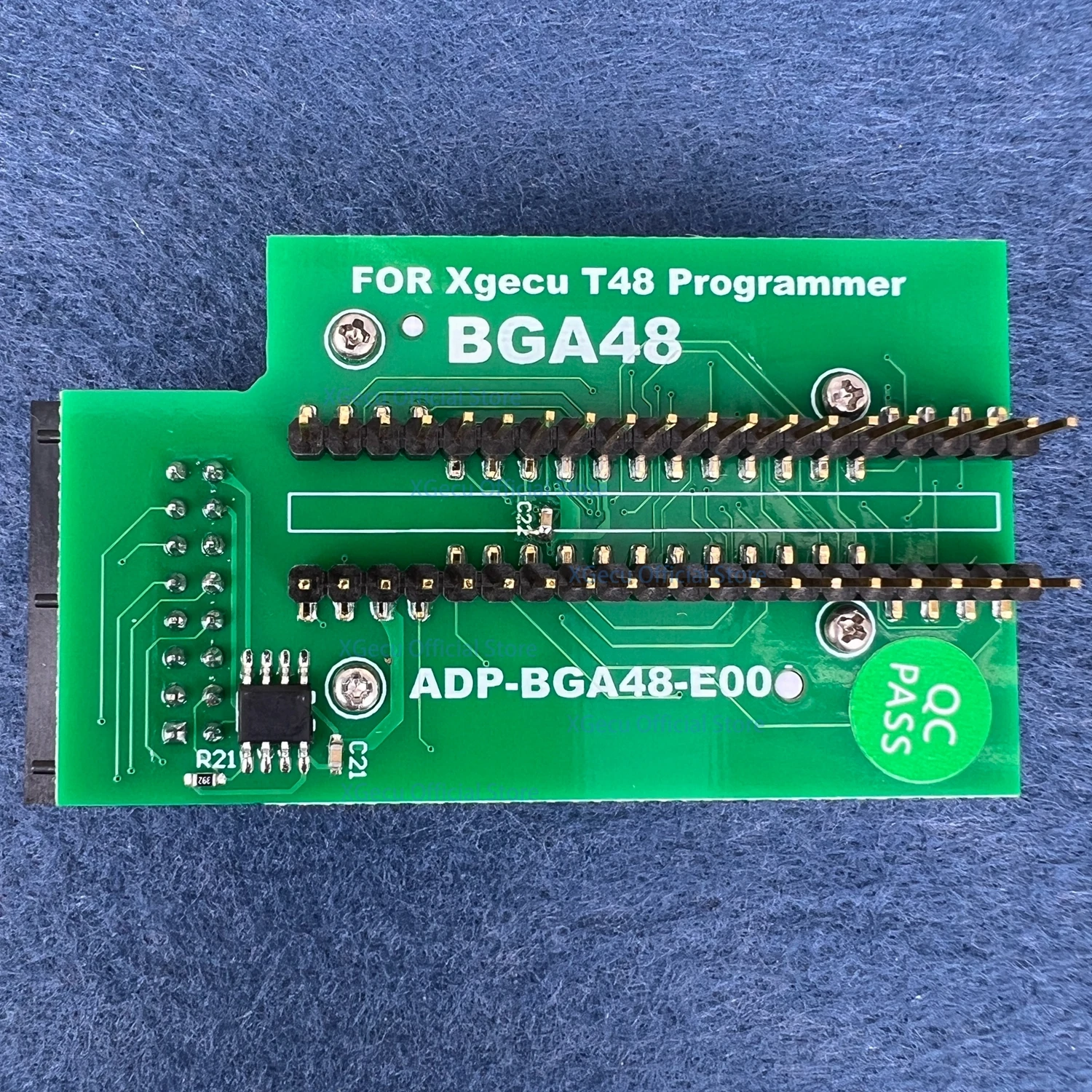

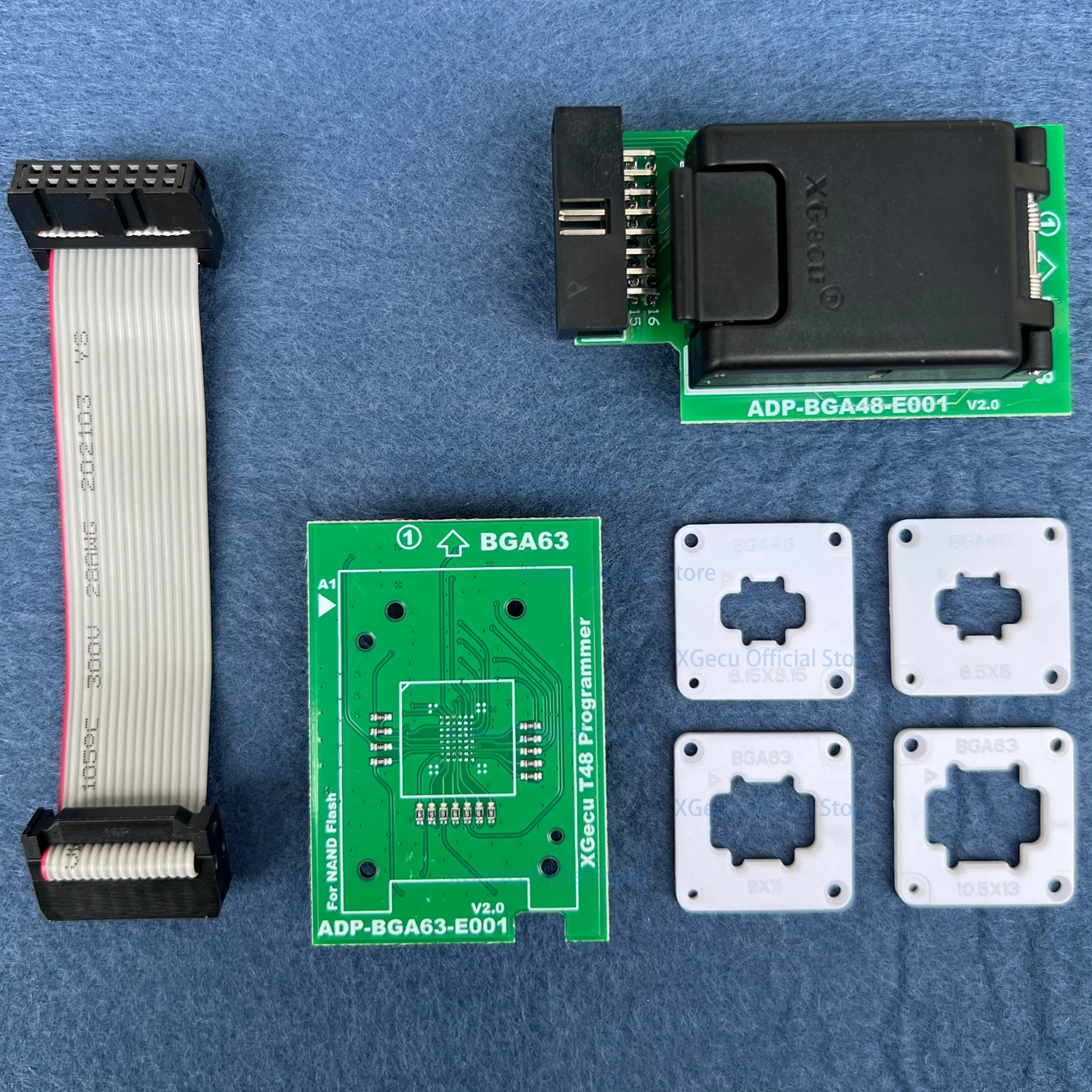

100% Original XGecu BGA48 - DIP48 BGA63 - DIP48 two in one Adapter kit IC Socket ADP-BGA48-E001 ADP-BGA63-E001 only can work on XGecu T48 programmer
This is the special BGA48 / BGA63 two-in-one adapter kit for XGecu T48 programmer.
Please note: This adapter only can work on XGecu T48 programmer, other programmers cannot use it!!!
Support BGA48 package chips.

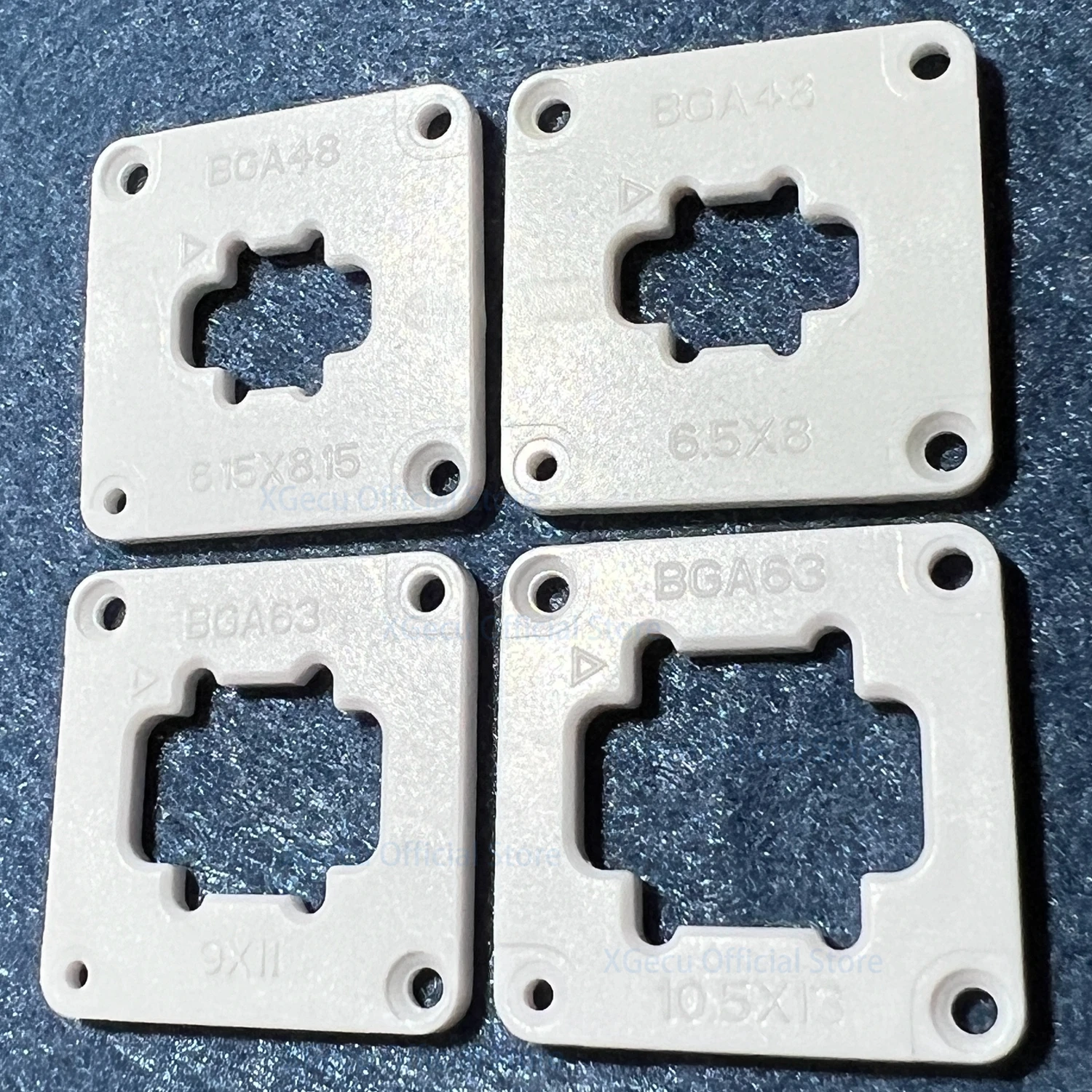

Applicable IC Size: 6*8MM, 6.15*8.15MM, 6.5*8MM
Pitch: 0.8MM

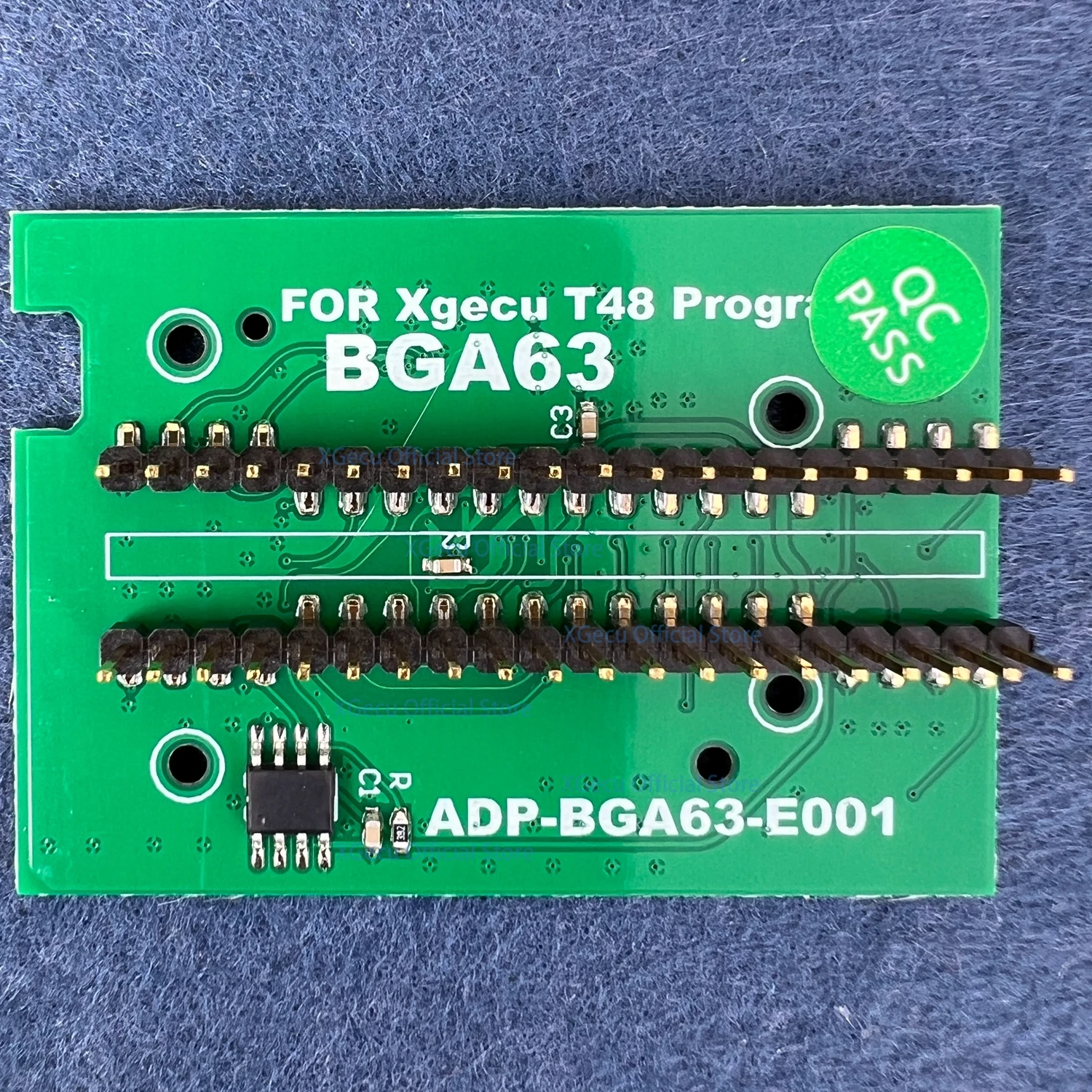

Support BGA63 package chips.
Applicable IC Size: 9*11MM, 10.5*13MM
Pitch: 0.8MM

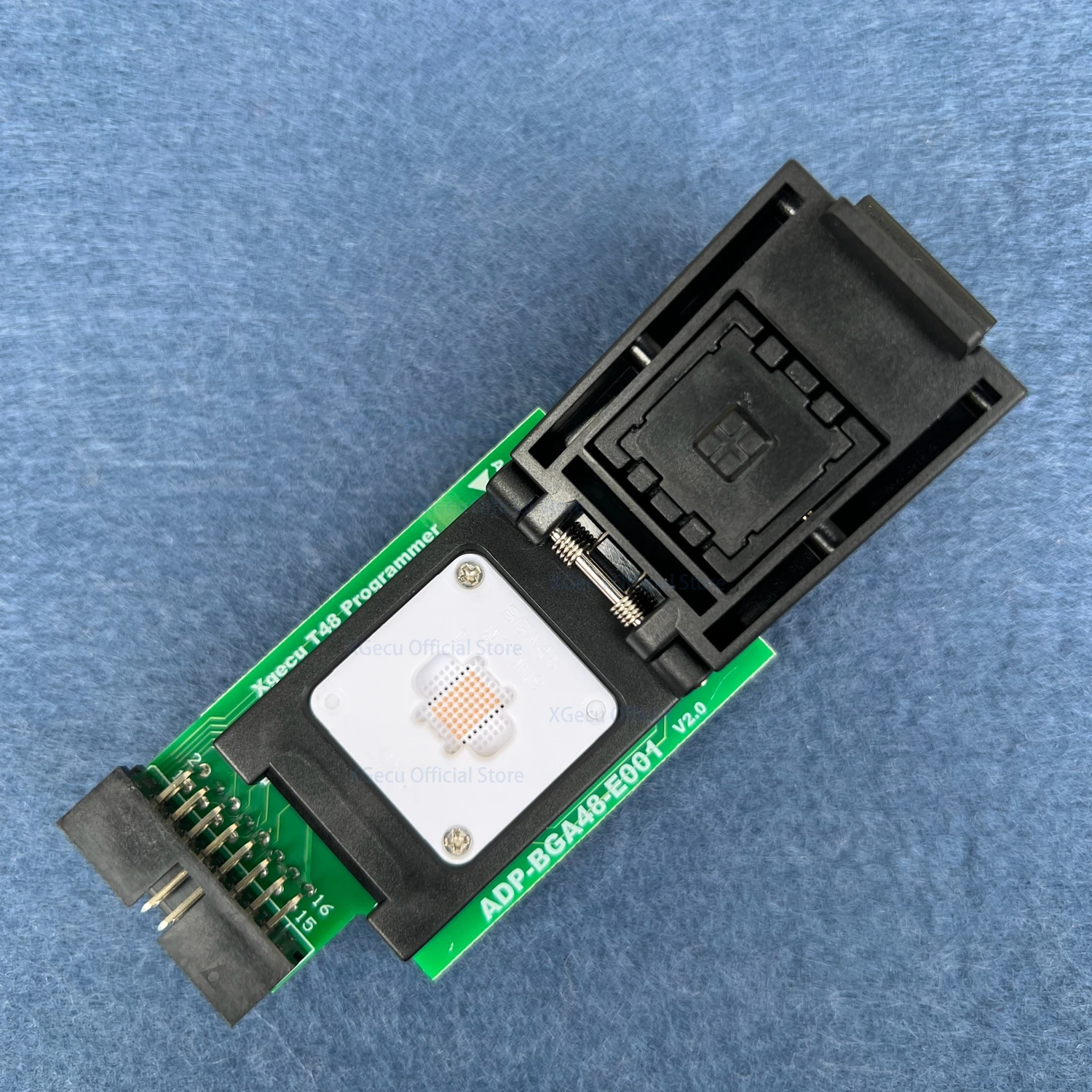

with Dual Head Spring-loaded test Probe Holder
High Quality
Easy to use
Long Service life
High Frequency
Probe replaceable
Self-developed high-precision mould to create a higher stability, longer life
Please note: The price of the probe is more than 10 times the price of the elastic steel clip, the probe is generally only used in high-end test holder!
Please note: It is strictly prohibited to use washboard water and halogen-containing solvents to clean the BGA socket, which will cause the material to melt and be scrapped!!!

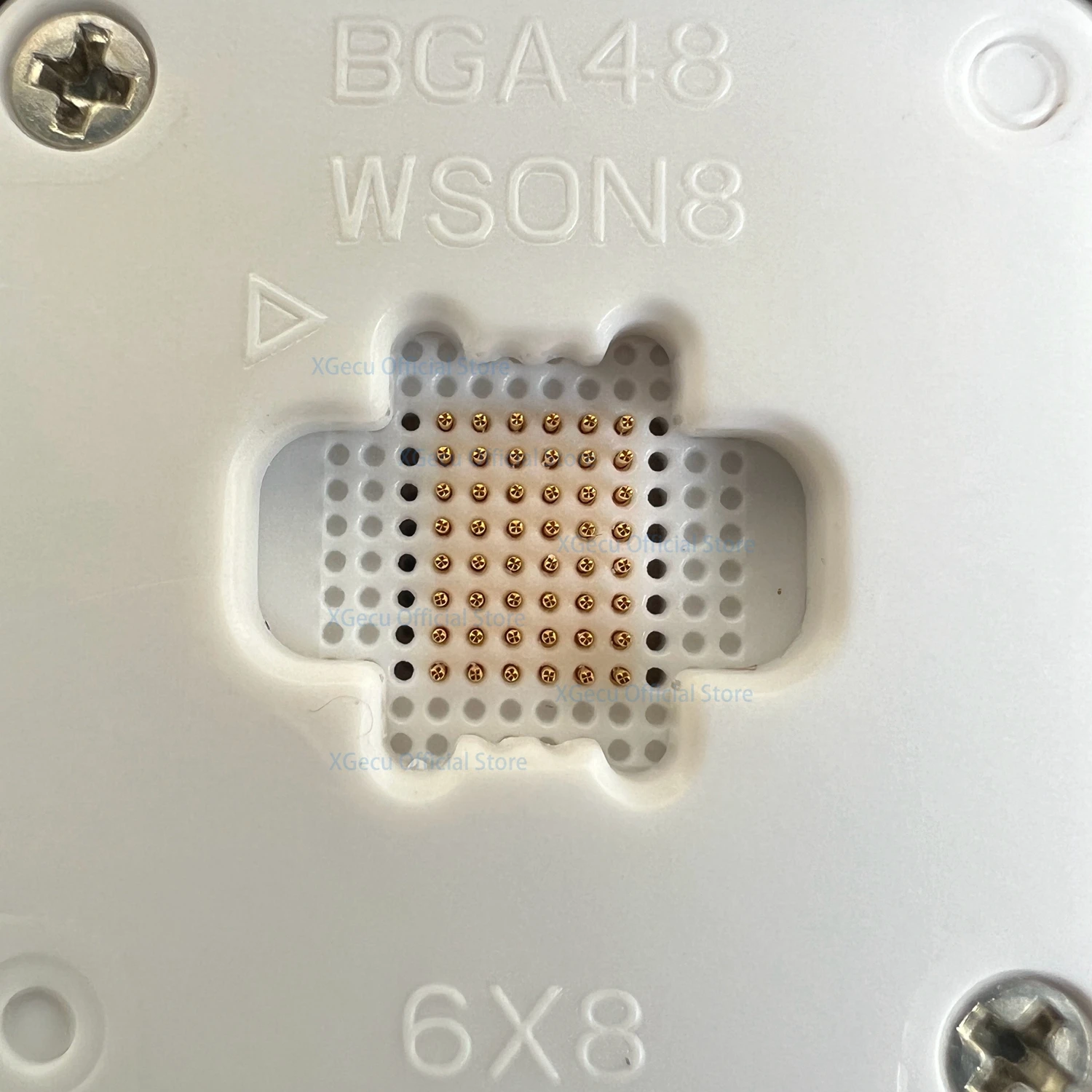

Advantages of XGecu BGA probe holders:
●Reliable contact, long service life of the probe, theoretically up to 100,000 times.
●High positioning accuracy, the chip can be tested with or without ball implantation.
●Probe can be replaced by yourself, which can greatly reduce the user's cost of use.
●Self-developed high-precision mould production, very high cost-effective
