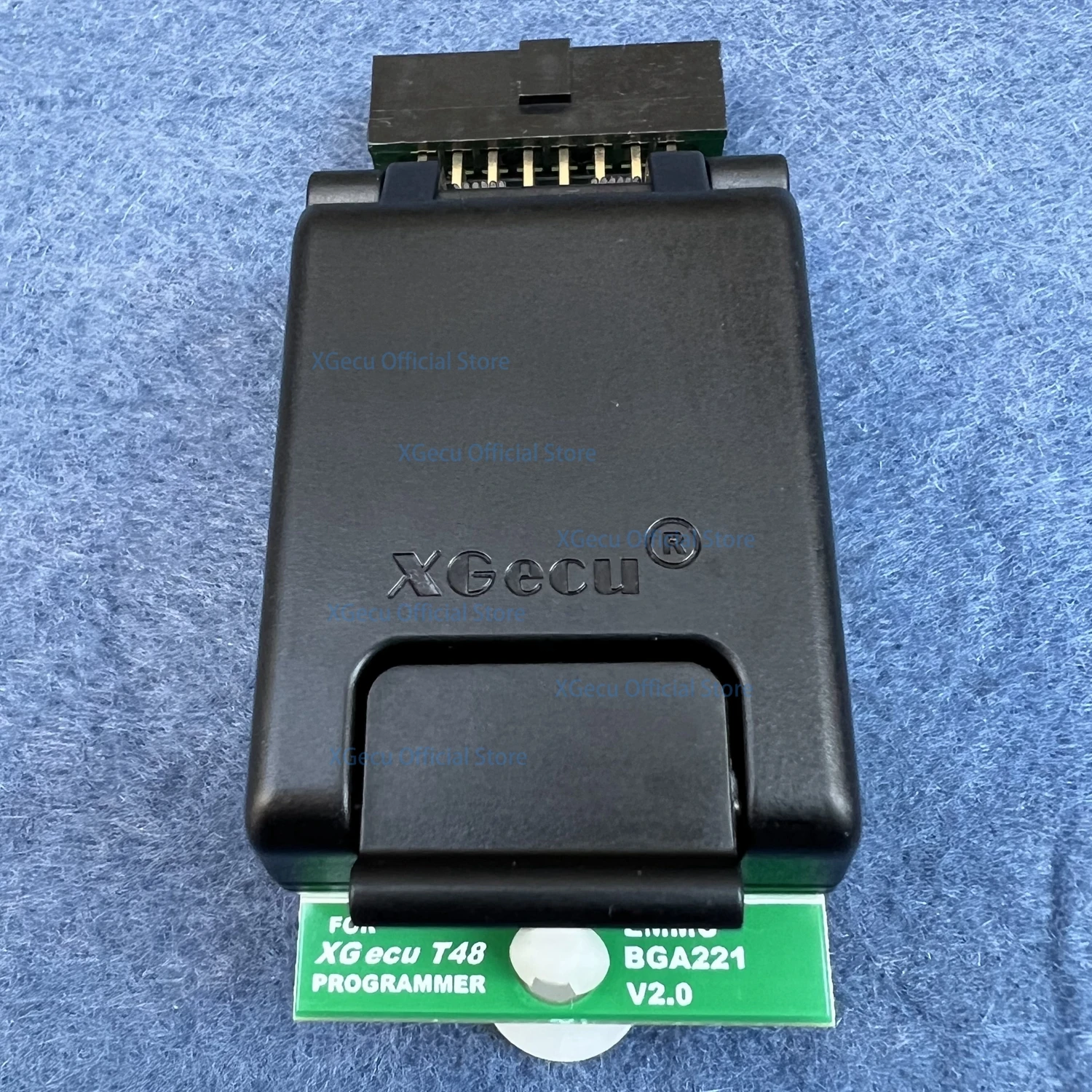

100% V2.0 original XGecu T48 EMMC BGA High Speed programming Adapter kit / IC Socket
Please note: These adapters only can work on XGecu T48 programmer! Cannot use this adapter kit on other programmers, such as TL866CS, TL866A, TL866II or T56 !!!

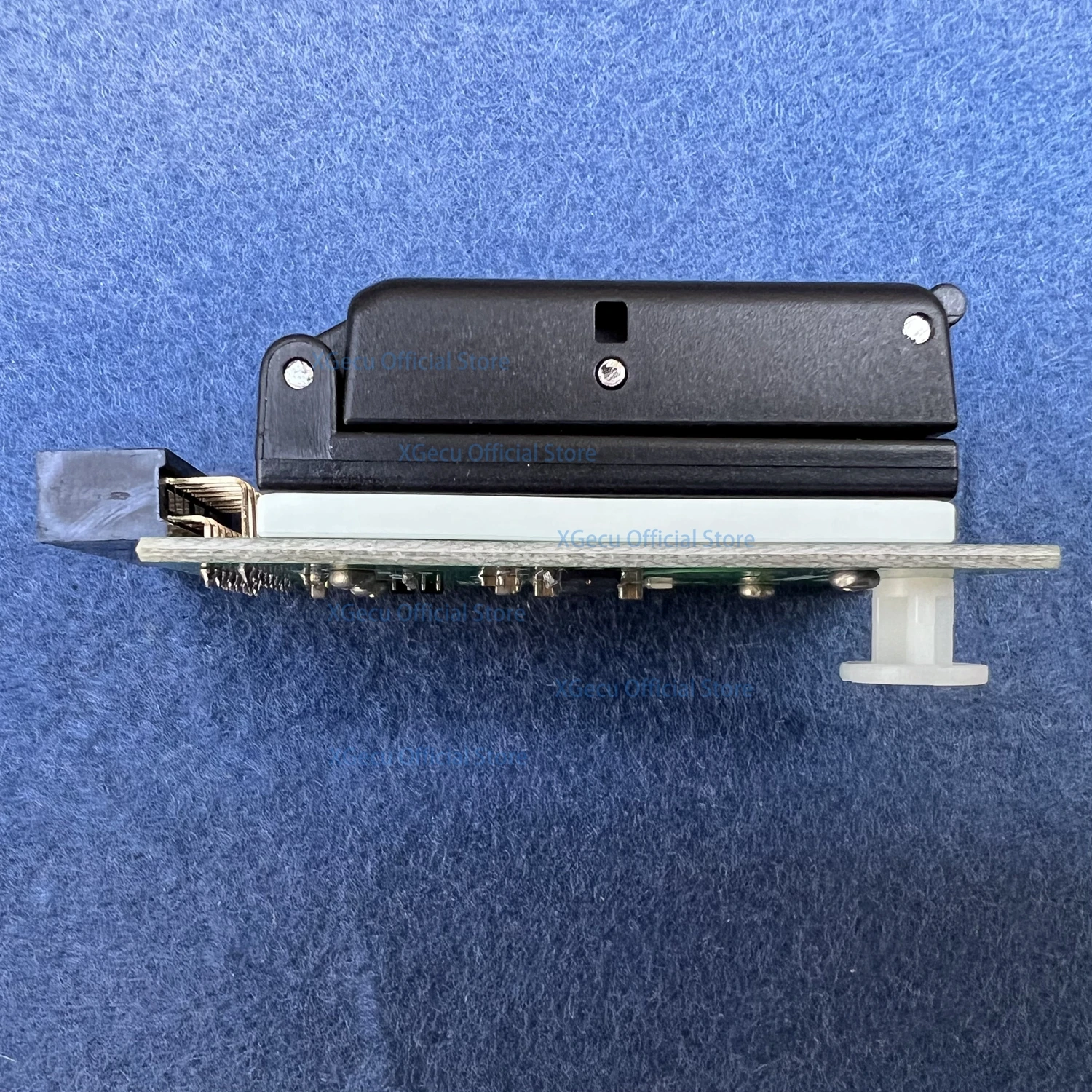

New V2.0 Dual Head Probe Holder, Reliable contact with ICs, Long service life, High Frequency, Probe replaceable
Self-developed high-precision mould to create a higher stability, longer life
Please note: The price of the probe is more than 10 times the price of the elastic steel clip, the probe is generally only used in high-end test holder!
Please note: It is strictly prohibited to use washboard water and halogen-containing solvents to clean the BGA socket, which will cause the material to melt and be scrapped!!!
Advantages of XGecu BGA probe holders:
●Reliable contact, long service life of the probe, theoretically up to 100,000 times.
●High positioning accuracy, the chip can be tested with or without ball implantation.
●Probe can be replaced by yourself, which can greatly reduce the user's cost of use.
●Self-developed high-precision mould production, very high cost-effective
This is the special BGA five-in-one adapter kit for XGecu T48 programmer, with secure encryption chips and anti-interference circuit on PCB board, need to get from manufacturer, cannot DIY.

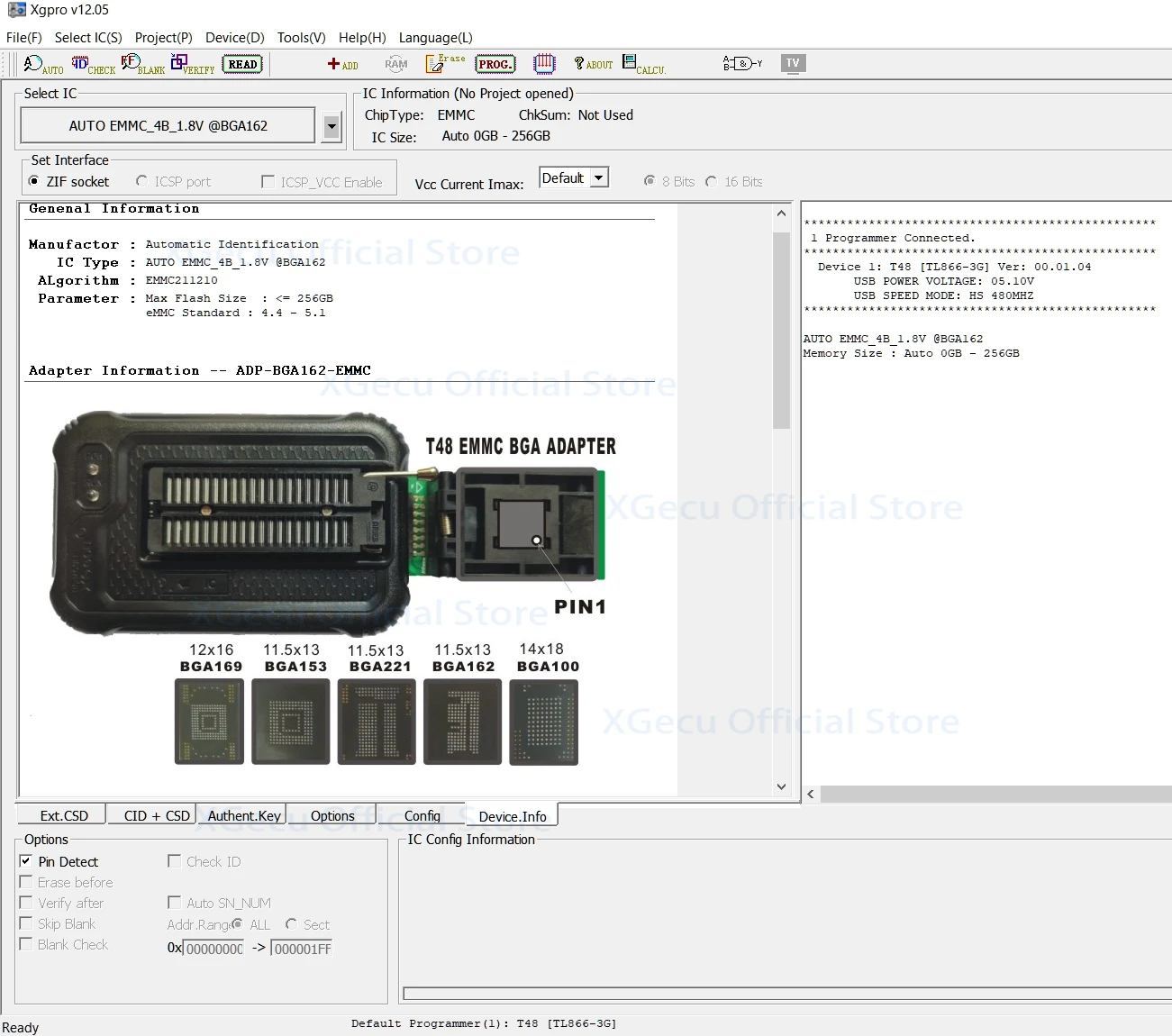

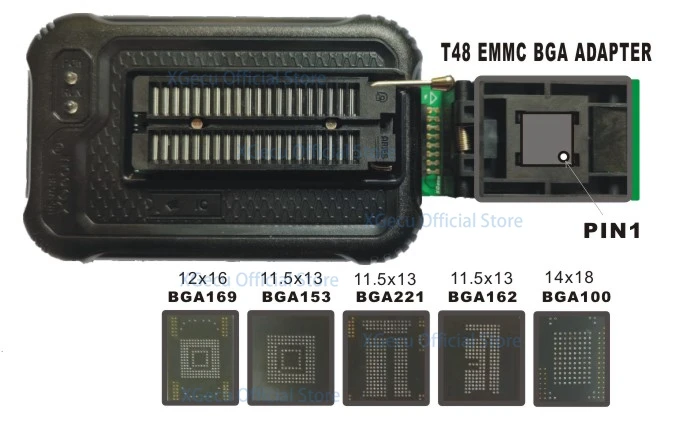

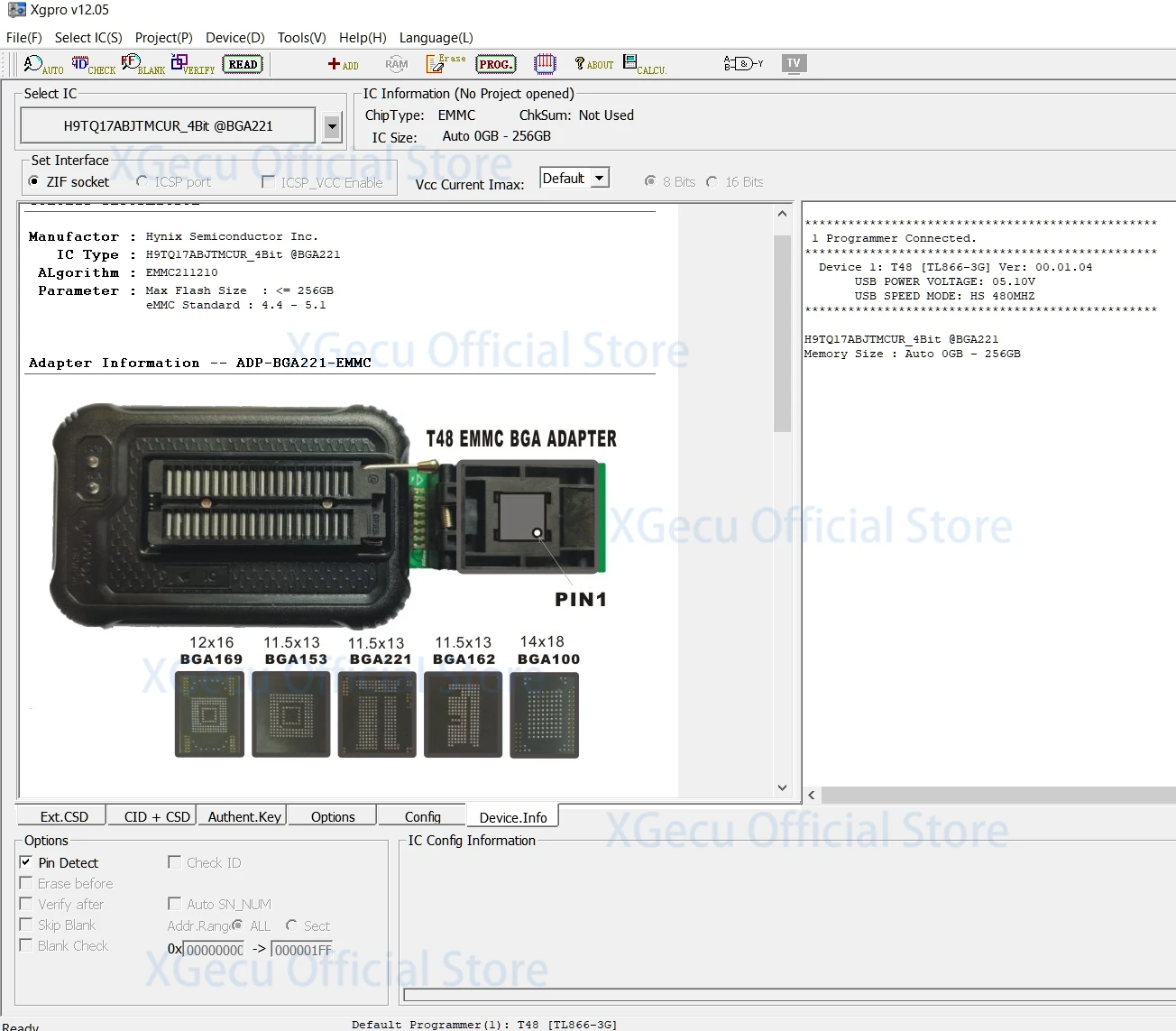

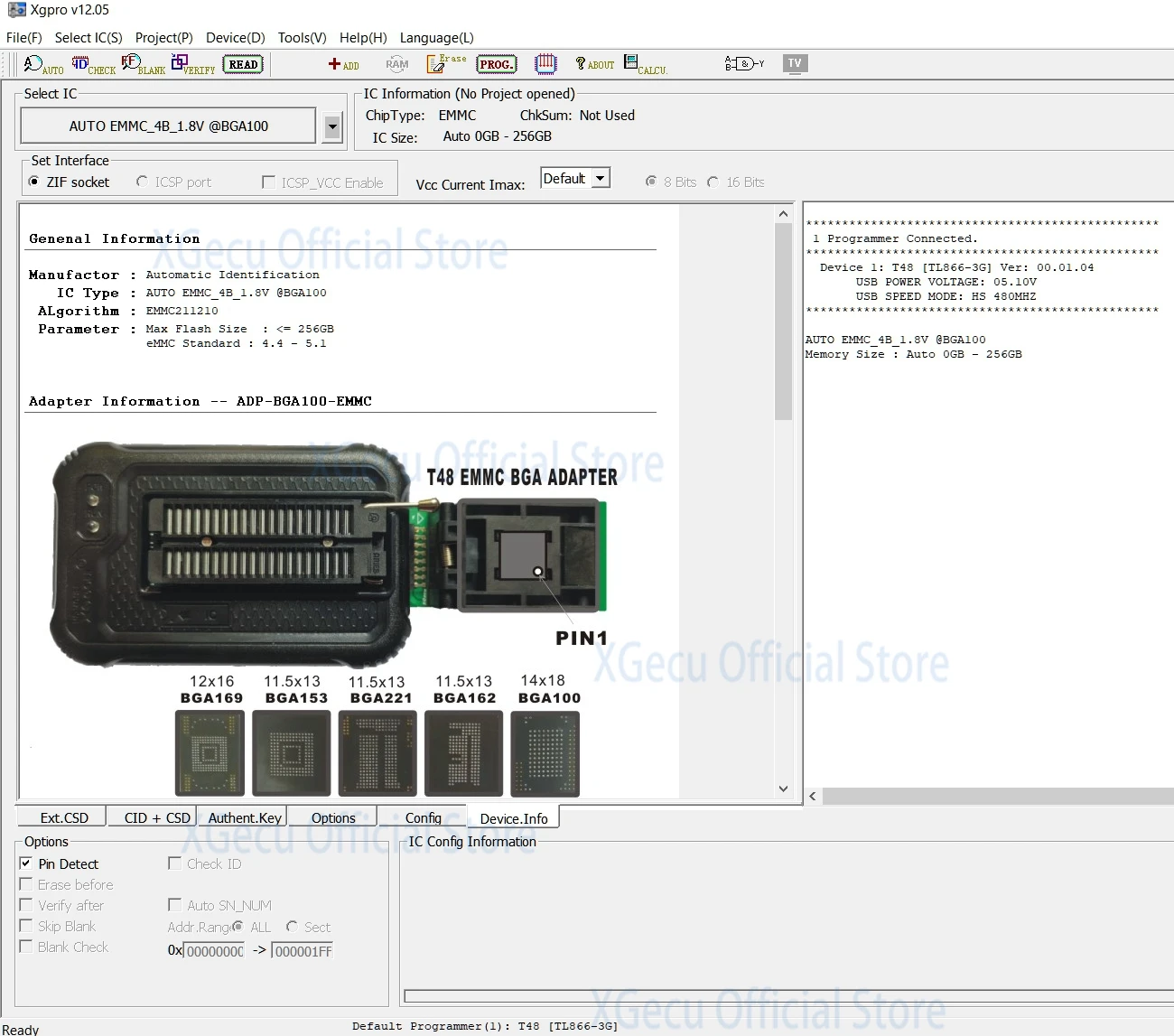

Five-in-one design, assigned for high-speed programming EMMC BGA153/ BGA169 BGA221 BGA162 BGA100 chips.
T48 programmer support list :
www.xgecu.com/MiniPro/T48_List.txt
(Before buying, please make sure the chip models you want to program are in support list!)
Package includes:
One pcs BGA100 adaprer (with one pcs limit frame: 14X18 mm)
One pcs BGA162 adapter (with one pcs limit frame: 11.5X13 mm)
One pcs BGA 221 adapter (with one pcs limit frame: 11.5X13 mm)
One pcs BGA153/169 adapter (with one pcs limit frame: 11.5x13mm)
Two pcs limit frames:
10x11 mm
12x16mm
