English manual download link:
www.xgecu.com/MiniPro/T56_TL866II%20USER%20GUIDE.pdf
XGecu T56 Latest software download link: (will be updated in the future)
www.mediafire.com/folder/hfg5kfj7euw5j/xgecu
(If you cannot download or downloading speed is very slow, please send message to us, we will send to your mail box)
XGecu T56 Support Device List:
www.xgecu.com/MiniPro/T56_List.txt
(please note: before buying, make sure the models you want to program are in the support list!)
Package include:
One pcs XGecu T56 Programmer
One pcs USB cable
One pcs ICSP cable
18pcs parts as below:
One QFP32 to DIP32 adapter
One QFP44-DIP44 adapter

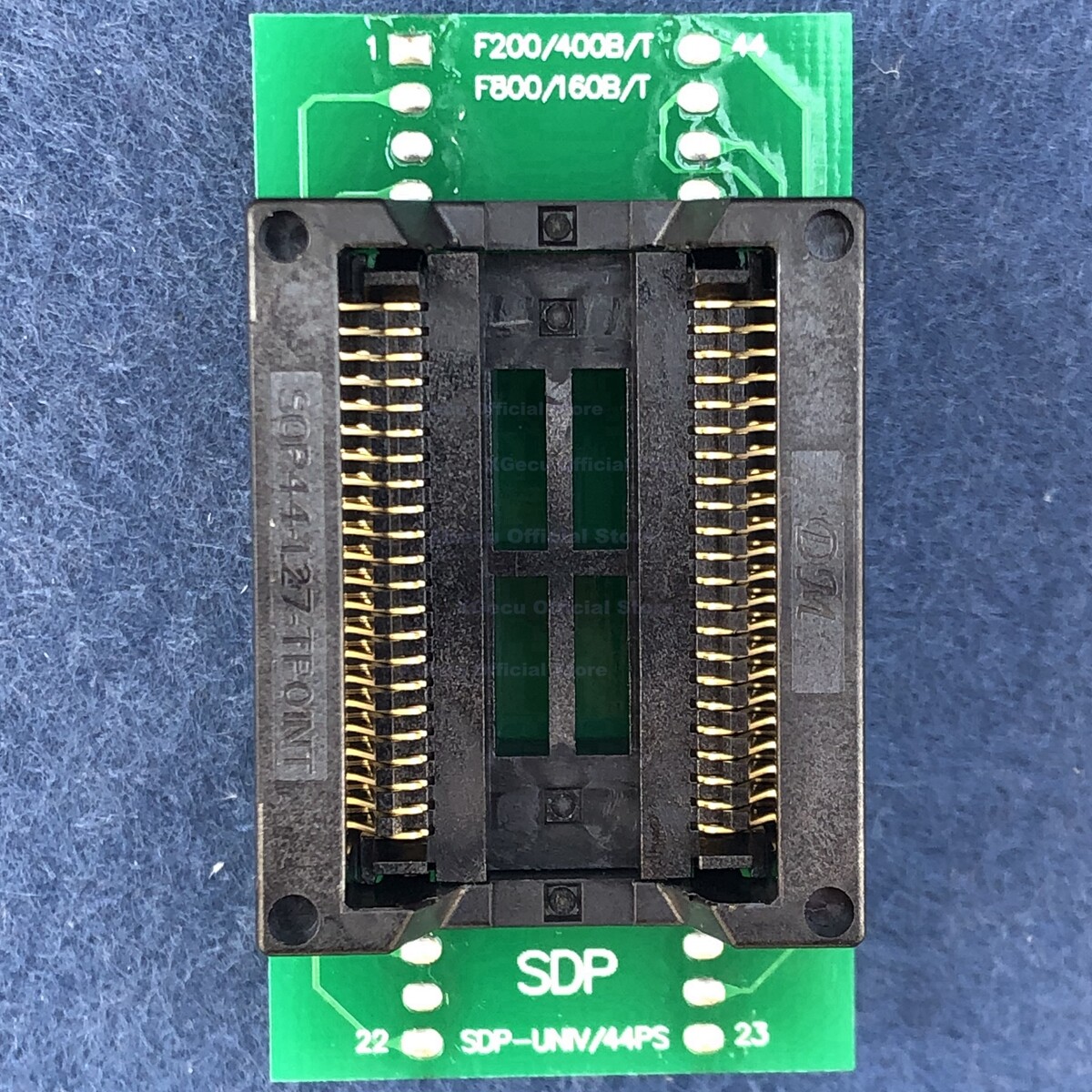

One SOP44-DIP44 adapter
One SOP20-DIP20 200mil ZIF adapter
One SOP28-DIP28 300mil ZIF adapter
One SOP16-DIP16 150mil ZIFadapter
One TSSOP28-DIP28 170mil ZIF adapter
One QFN8 two-in-one adapter (for both 6*5MM and 8*6MM chips)
One TSOP32-DIP32 Universal SMD Adapter (Equivalent to CNV-TSOP-EP1M32 Circuit)

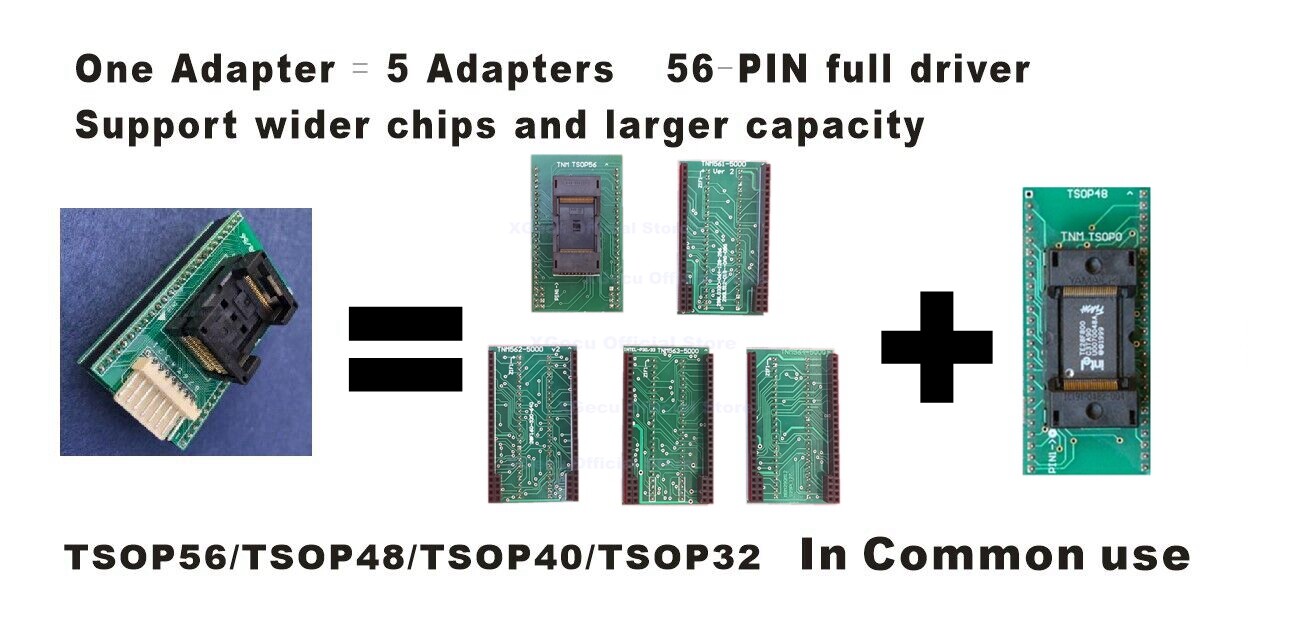

One TSOP32/40/48/56 ZIF adapter (SN-ADP-056-0.5) with 8-pin cable
One SOP56 SMD adapter (ADP-SSO-056-0.8) with 8-pin cable
One PLCC IC extractor

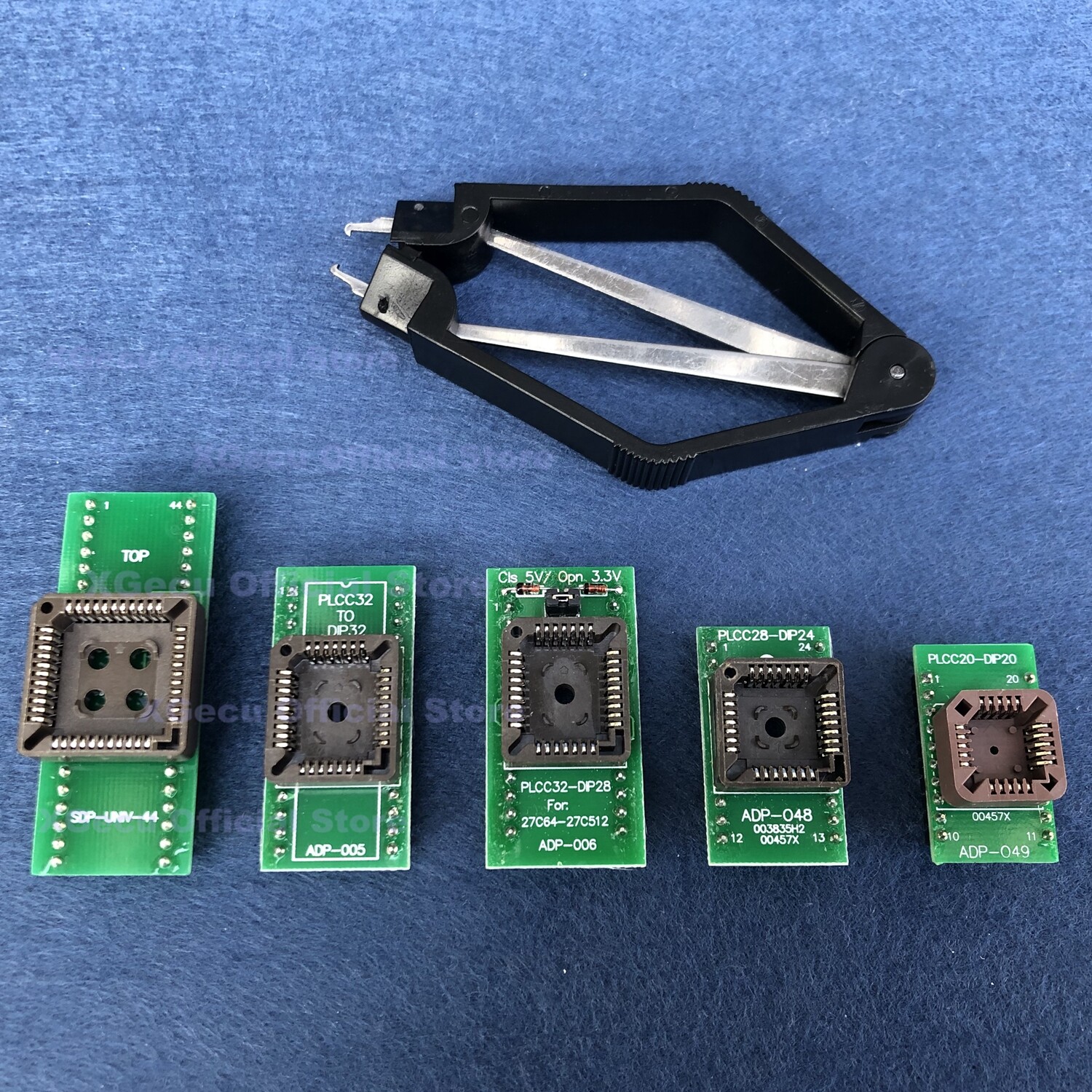

One PLCC44-DIP44 adapter
One PLCC32-DIP32 adapter
One PLCC32-DIP28 adapter
One PLCC28-DIP24 adapter
One PLCC20-DIP20 adapter
One SOIC SOP8 IC test clip/ IC clip
Please note: the package don't include CD, you can download documents on official website: www.xgecu.com
T56 Universal Programmer parameters:
(1). 32-bit MCU 200MHZ + Xilinx SP6 FPGA structure, USB2.0 HS 480MHZ transmission
(2). 56-pins powerful pindrivers IO design. It is small in size, but the internal hardware has a high performance with the 56-pin powerful pins drivers, that is unparalleled in the marketplace.
56-pin powerful pins drivers IO design includes as below:
1. 56-pin Independently controllable adjustable VCC, from 1.2V to 6.5V
2. 56-pin Independently controllable GND
3. 48+2 ISP 50-pin independently controllable adjustable VPP, from 6V-25V
4. 56-pin special 30V high-voltage, high-speed isolated circuits
5. 56-pin IO overvoltage protection circuit (further IO protection to the main chip in case of damage to the high voltage isolation circuit)
6. 56-pin Independently controllable weak pull-up resistor
7. 56-pin Independently controllable weak pull-down resistor
8. 56-pin high-speed Input and Output IO (IO adjustable voltage from 1.2 to 3.6V), each pin can be used as a high-speed clock signal up to 50MHZ
(3). Stable and reliable 8-Pins in-circuit programming ISP interface, the wire Length is more than 30CM, and it can communicate reliably at 25MHZ. 25 series / EMMC in-circuit programming with a maximum clock frequency of 40MHZ-50MHZ
(4). VCC voltage 1.2-6.5V 64 levels adjustable
VPP voltage 6.5-25V 64 levels adjustable
IO communication signal voltage continuously adjustable 1.2V-3.6V
VCC 120MA-320MA overcurrent protection continuously adjustable
VPP 120MA overcurrent protection.
(5). Power consumption: 5V < 500MA. All chips do not need external power supply.
It can be connected to an external power supply 5V-5.5V 500MA for multipile programming.
The external power can be powered by a cell phone charger or charge pal can be seen everywhere.
The programmer has multiple protections for the external power supply:
Overvoltage protection / reverse connection protection / overcurrent protection / low voltage prompt.
(6). Write EMMC Speed: 12MB/s-25MB/s
Reading EMMC speed: 14MB/s-45MB/s is 2-5 times faster than similar programmers.
(This is important for large-capacity chips, 64GB EMMC chips,
If 10MB/s (the average programmer cannot reach 10MB/s) reading takes 6400 seconds,
T56 can usually reach more than 20MB/s, as long as about 3000 seconds)
Ability to handle extremely high speeds, meaning that programmer hardware has greater stability at lower speeds
(7). Open self-test function, self-check each VPP/VCC /GND/ IO
Outer shell size: 12.9CM*8.5CM*3CM, it's small and easily portable. Cool appearance, low power consumption, excellent work stability. Support simultaneously working with 4 Programmers on each computer. User-friendly software interface, supports multi-language (English, Chinese, Russian, Polish, German, Spanish, Portuguese, Turkish, Czech, Italian), it can automatically identify the operating system to install and run under XP/WIN 2003/WIN 2008/WIN VISTA /WIN7/WIN8/WIN10 (32BIit/64Bit).
Open source programming adapter
For example, TSOP32/TSOP40/TSOP48/TSOP56, PLCC32, PLCC44, TQFP44, BGA48, BGA63, BGA64, SOP44, TQFP32 and so on. No adapter required for any DIL devices. All programming adapters are fully open source. No encryption adapter is used. You can buy a universal adapter, or make your own adapters. This feature will bring customers incomparable convenience, it will save you a lot of money.
Design focused on high-capacity memories fast programming. IC supported 28468+ for Nor Flash / NAND Flash / EMMC / TSOP48 / TSOP56 / BGA48 / BGA63 / BGA64 / BGA100 / BGA153 / BGA162 / BGA169 / BGA221, please check Device List in details.
XGecu T56 Support Device List:
www.xgecu.com/MiniPro/T56_List.txt
(please note: before buying, make sure the models you want to program are in the support list!)
Support high voltage, the highest voltage up to 25V
The T56 programmer solves the contradiction between high voltage and high frequency pins.
It supports high speed and high voltage programming.
You can directly program many 27C series and MCU series that require high voltage VCC (6.5V) and VPP (12V-25V)
