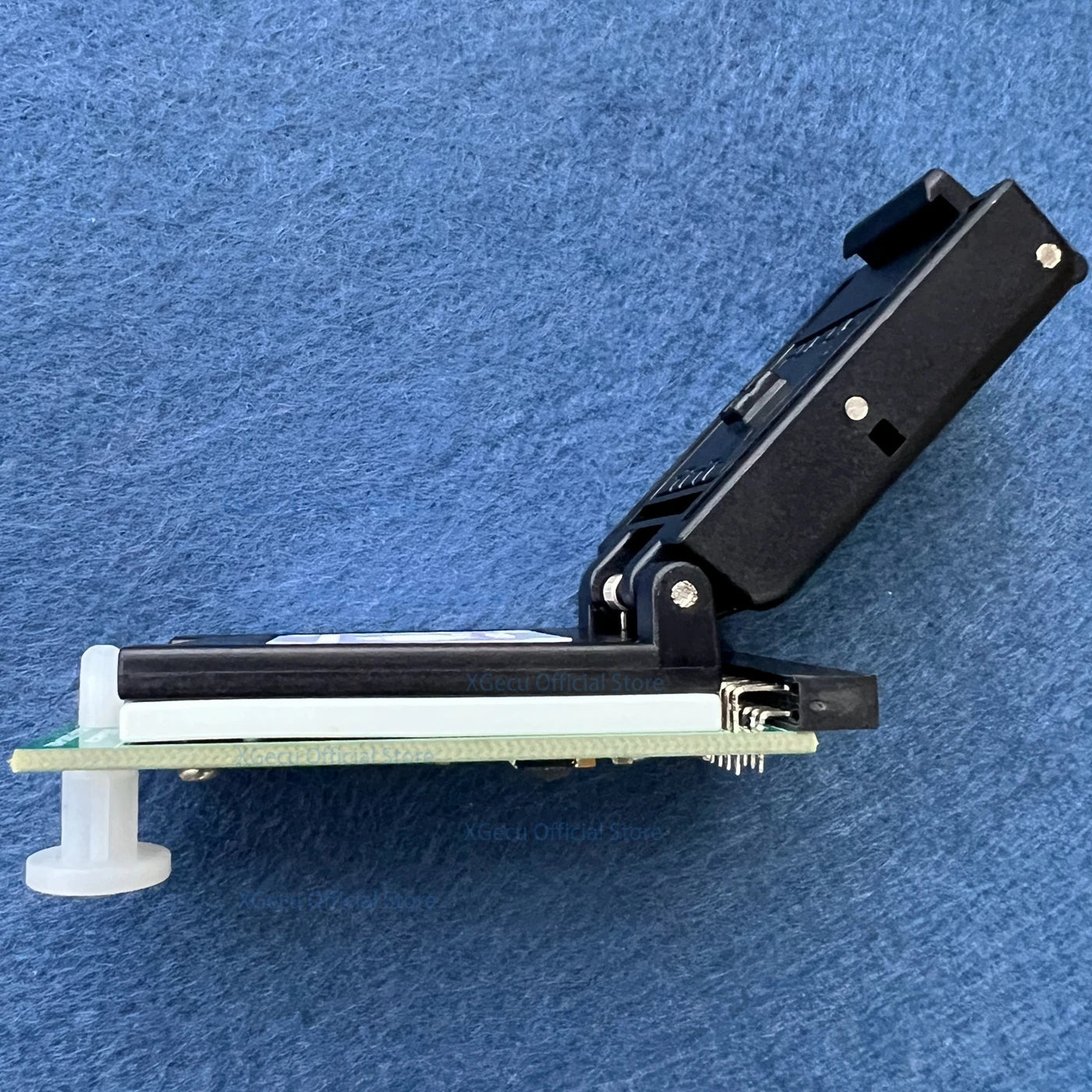

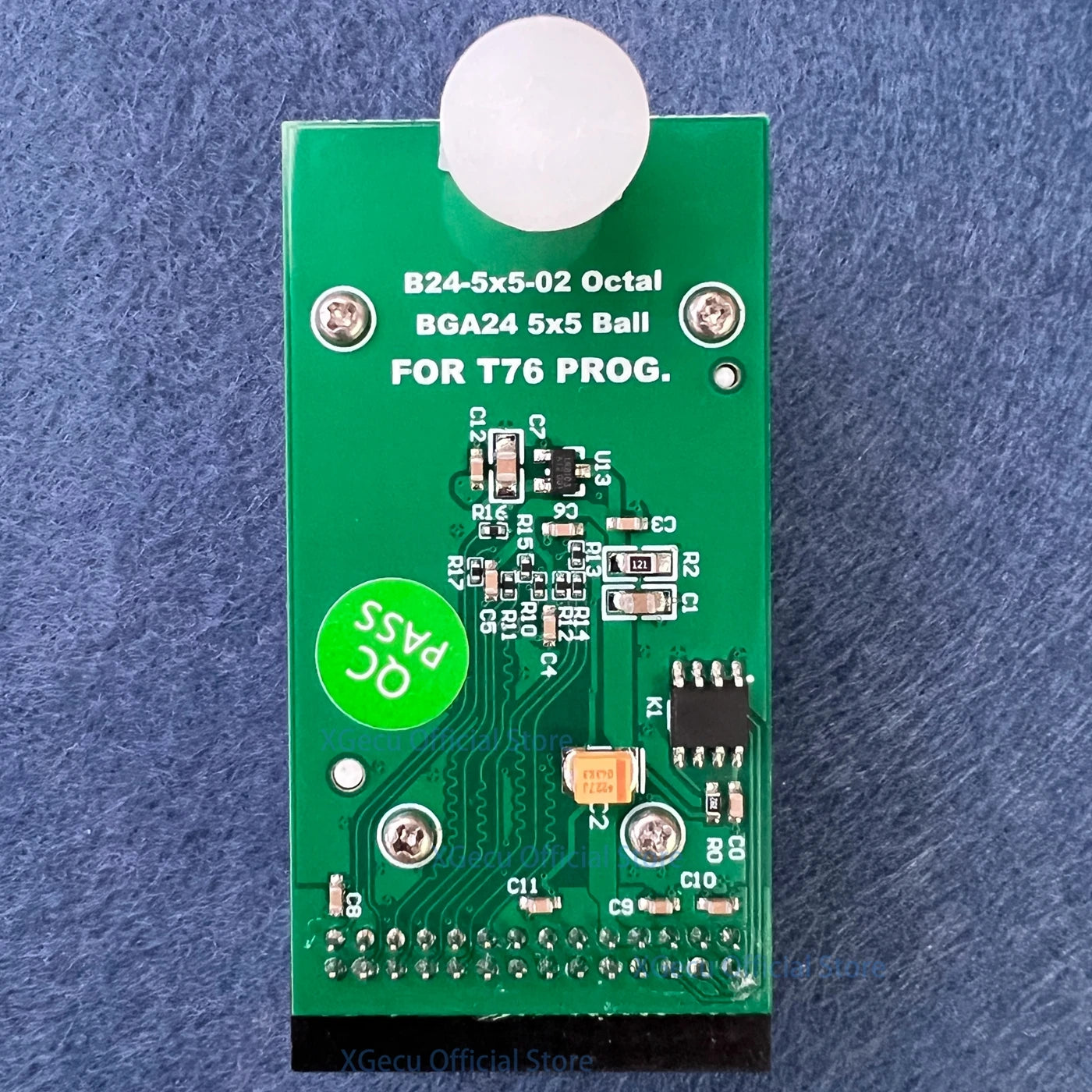

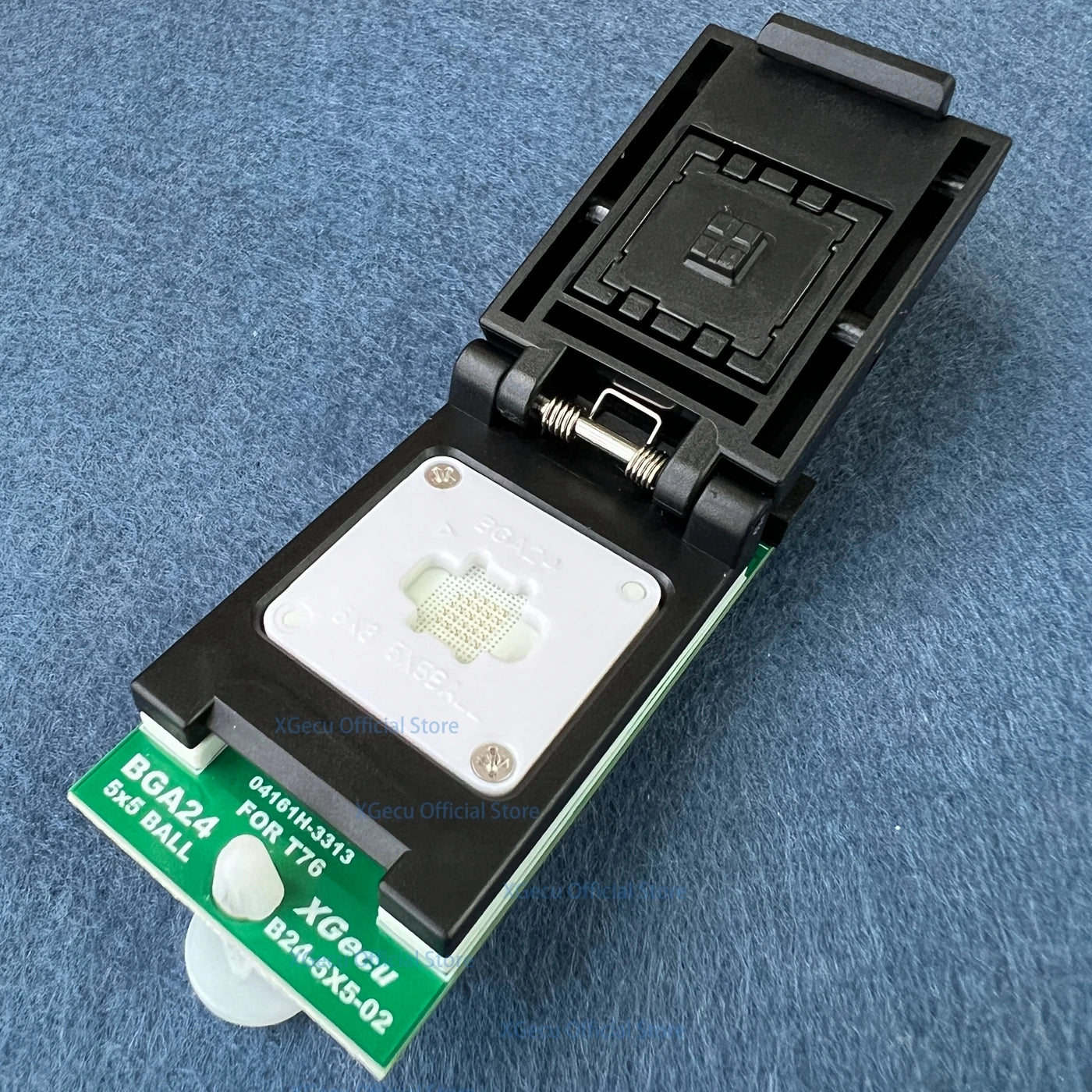

100% XGECU Original High-Speed BGA24 Adapter Probe Socket  Size: 6mm x 8mm 5x5 Ball BGA24 Full-Pin 24-Pin Socket

Designed for 25-OCTAL series chips, 8-wire DTR/STR support

Maximum Speed: 60MB/s

Note: Exclusively compatible with the XGECU T76 Programmer and must be connected to the 28-pin ISP interface. Not usable with other programmer models.

Features:

•
Utilizes high-quality probes with a lifespan exceeding 100,000 cycles.

•
Optimized circuit design ensures minimal signal interference.

•
Compatible with all 25-series BGA24 5x5 Ball chips, specifically for 25-OCTAL series chips with 8-wire DTR/STR support.

•
Supports ultra-high-speed programming up to 60MB/s with exceptional reliability.

IC socket with spring-loaded probe
Long service life

Easy to use with a single adapter

Cost-effective Useful Reliable

Package includes:

One pcs BGA24 adapter adapter for Xgecu T76 Programmer

Self-developed high-precision mould to create a higher stability, longer life (has applied for a patent, counterfeit will be punished!)

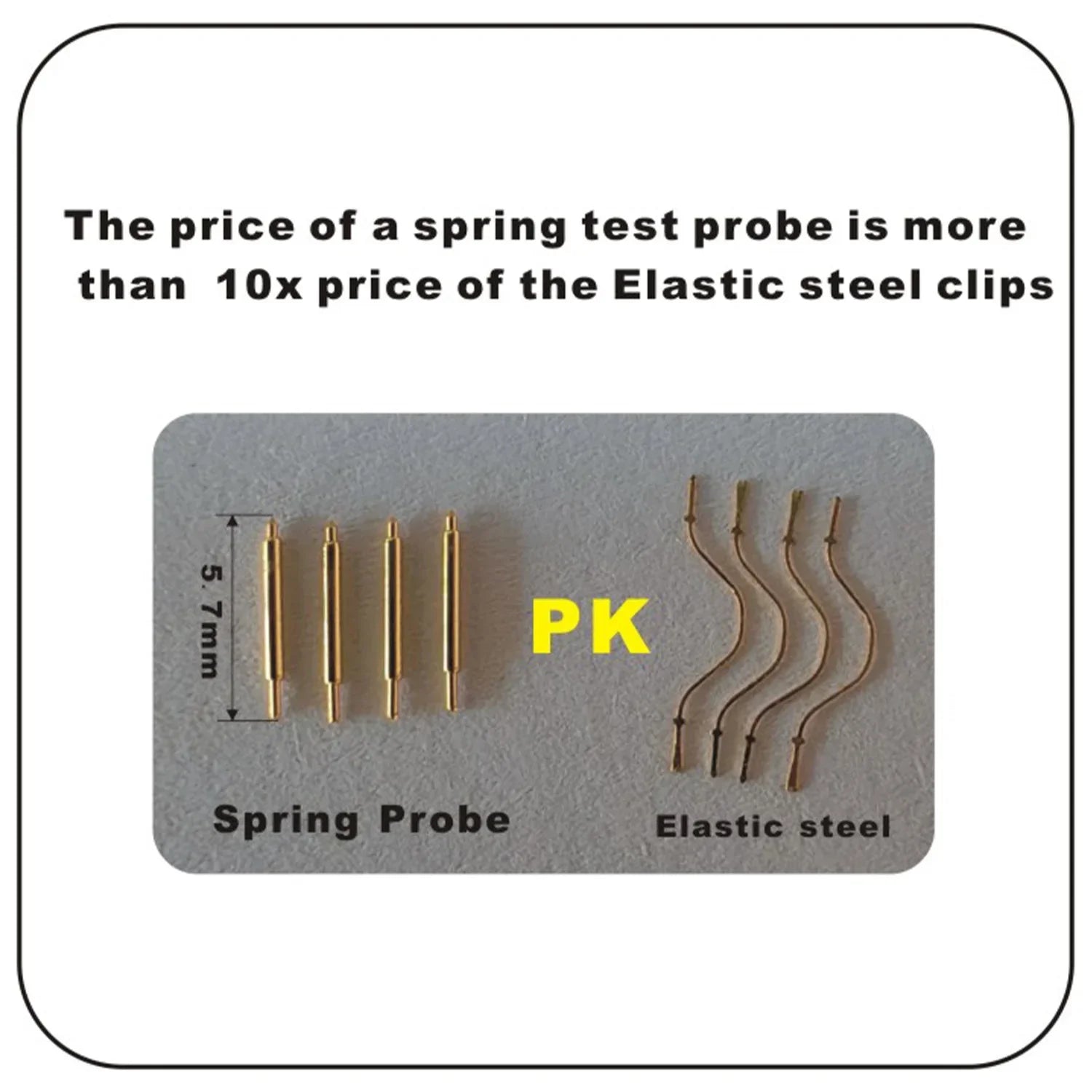

Please note: The price of the probe is more than 10 times the price of the elastic steel clip, the probe is generally only used in high-end test holder!
Please note: It is strictly prohibited to use washboard water and halogen-containing solvents to clean the BGA socket, which will cause the material to melt and be scrapped!!!

Advantages of XGecu BGA probe holders:

●Reliable contact, long service life of the probe, theoretically up to 100,000 times.
●High positioning accuracy, the chip can be tested with or without ball implantation.
●Probe can be replaced by yourself, which can greatly reduce the user's cost of use.
●Self-developed high-precision mould production, very high cost-effective
