Applicable to: XGecu T76 Programmer
Model: T76_B24_10-4x6
Specifications:

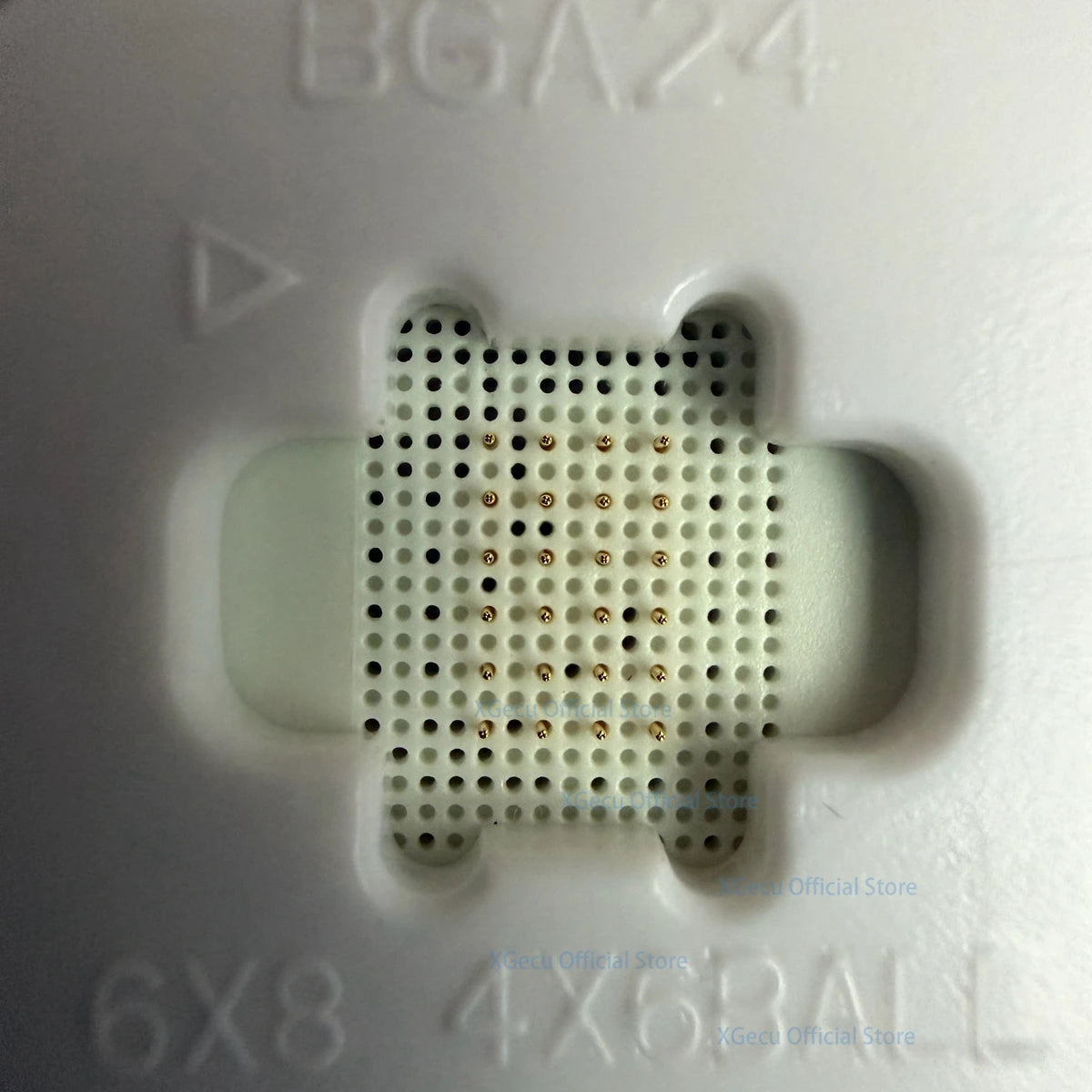

Chip Size: 6 * 8mm; 4x6 Ball Array

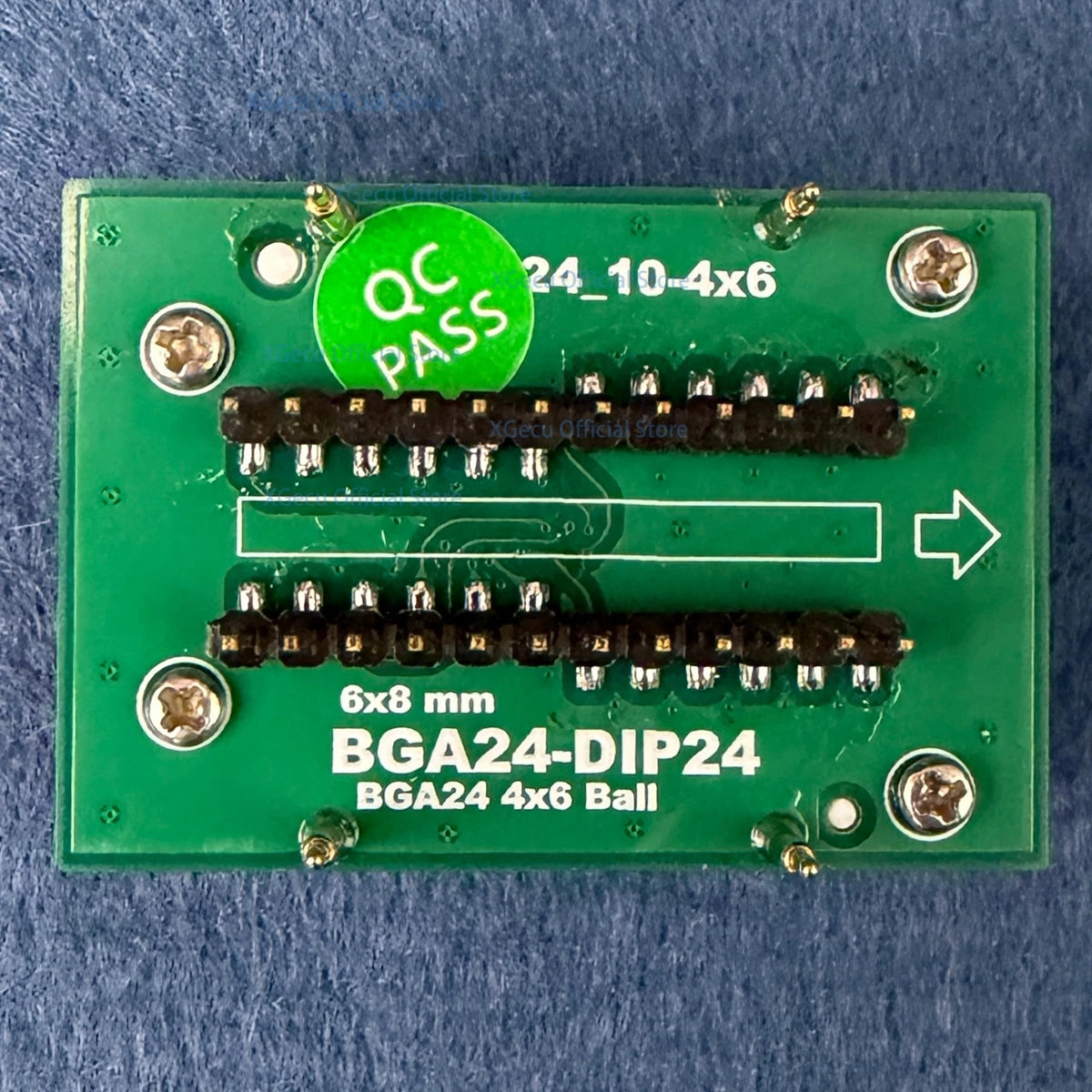

Note: This BGA24-DIP24 adapter is a dedicated accessory for the XGECU T76 programmer.
It requires dedicated software for operation and is NOT compatible with programmers from other brands.

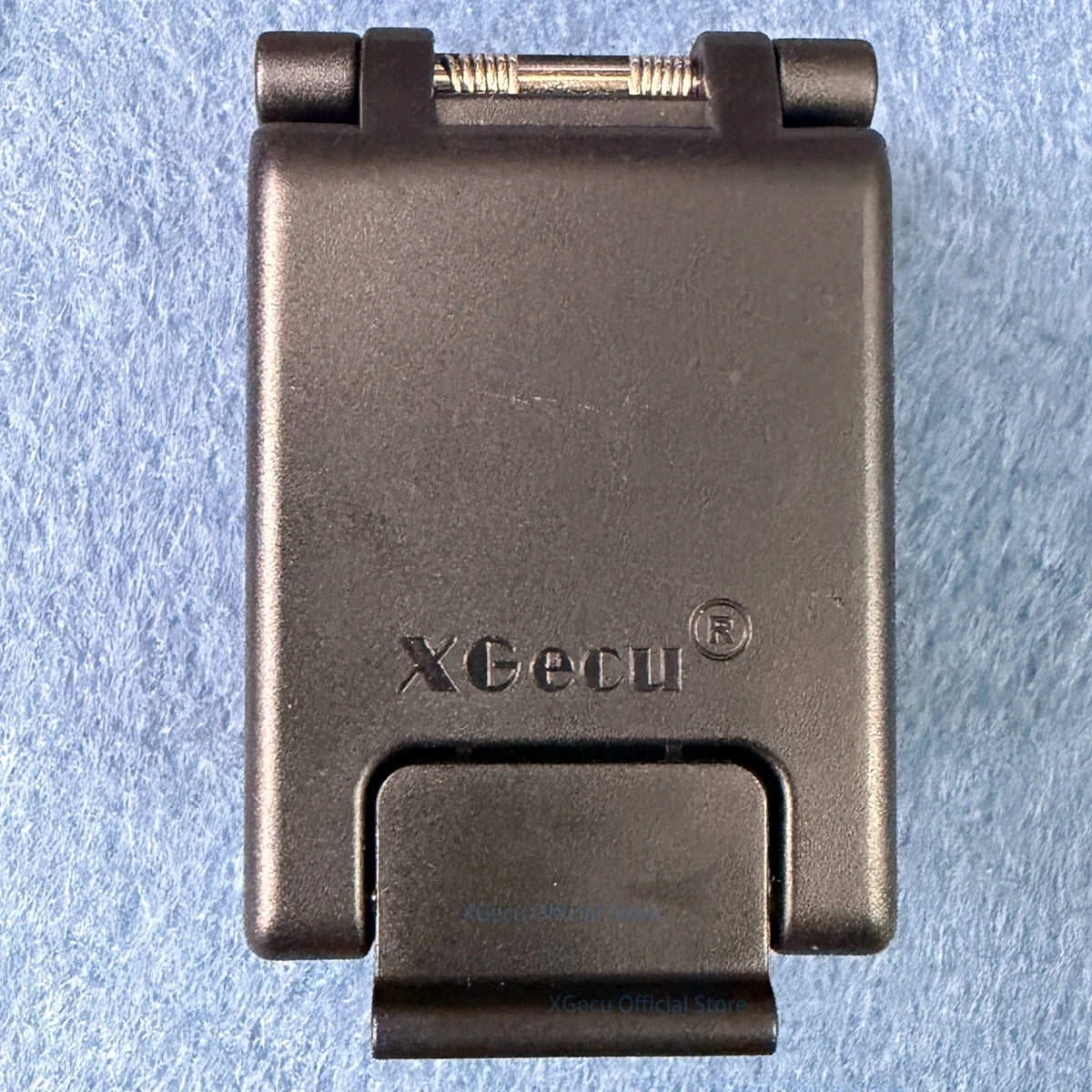

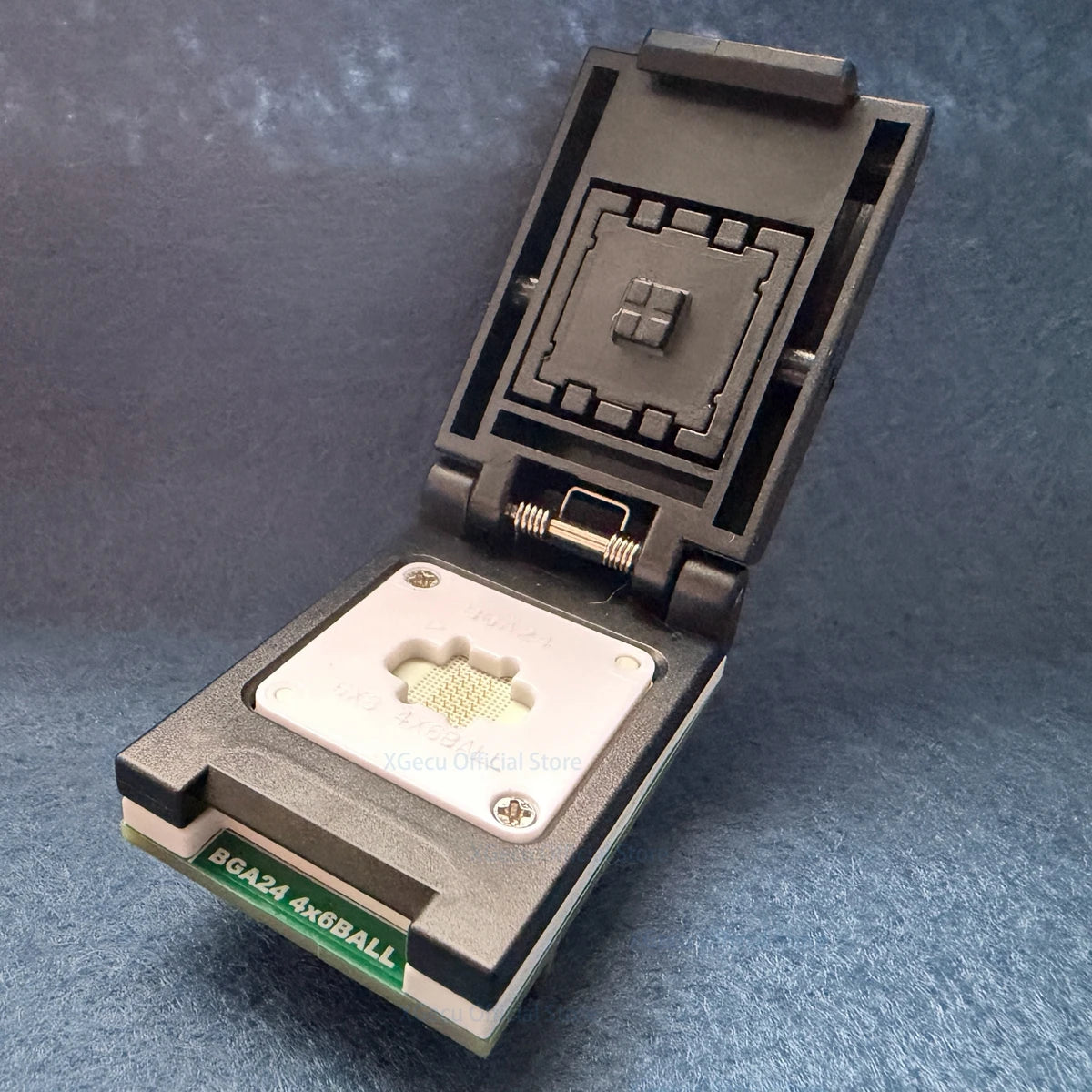

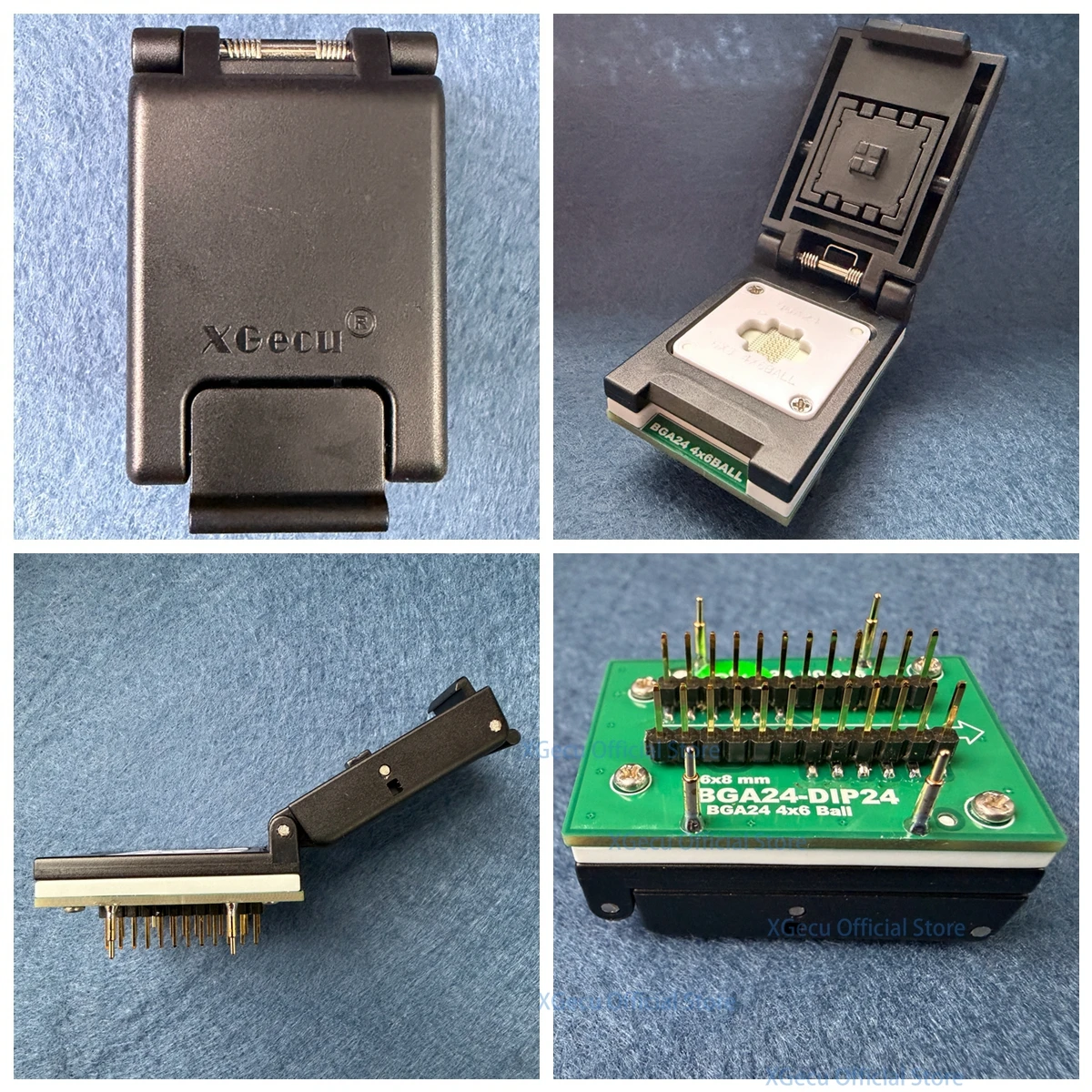

100% XGECU Original High-Speed BGA24 Adapter Probe Socket Size: 6mm x 8mm 4x6 Ball BGA24 Full-Pin 24-Pin Socket
Product Description:
The 2026 latest BGA24-DIP24 Universal Adapter features a 24-pin full-pin design and employs long-life probe pins with a durability rating of up to 100,000 cycles. For use, insert it into the ZIF socket of the T76 programmer. Equipped with shielding and grounding points for enhanced performance, it supports the vast majority of 25-series BGA24-packaged chips. (Note: Does not support octal. Specific supported models are subject to software verification.)
IC socket with spring-loaded probe
Long service life
Easy to use with a single adapter
Cost-effective Useful Reliable
Package includes:
One pcs BGA24 adapter adapter for Xgecu T76 Programmer
Self-developed high-precision mould to create a higher stability, longer life (has applied for a patent, counterfeit will be punished!)

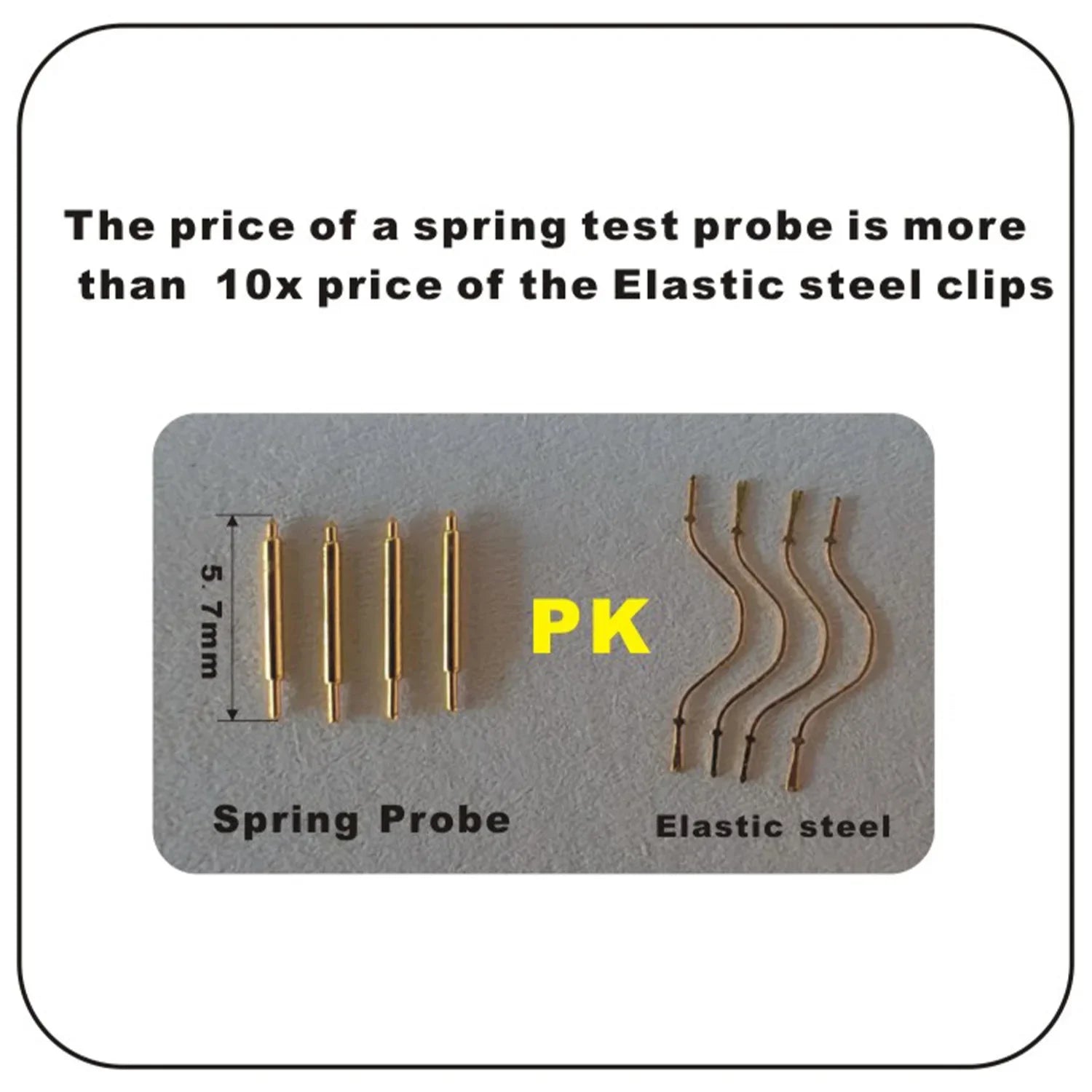

Please note: The price of the probe is more than 10 times the price of the elastic steel clip, the probe is generally only used in high-end test holder!
Please note: It is strictly prohibited to use washboard water and halogen-containing solvents to clean the BGA socket, which will cause the material to melt and be scrapped!!!
Advantages of XGecu BGA probe holders:
●Reliable contact, long service life of the probe, theoretically up to 100,000 times.
●High positioning accuracy, the chip can be tested with or without ball implantation.
●Probe can be replaced by yourself, which can greatly reduce the user's cost of use.
●Self-developed high-precision mould production, very high cost-effective
