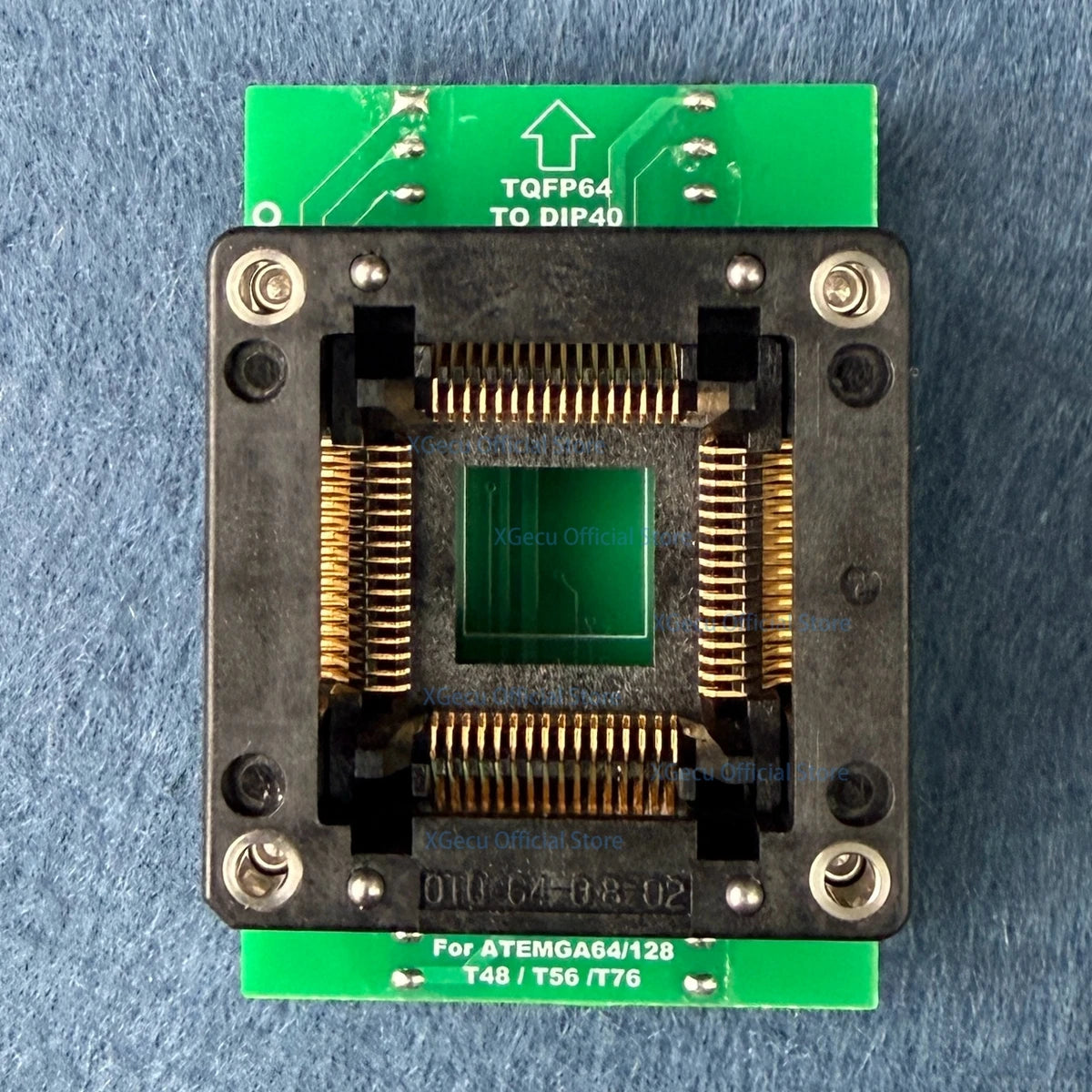

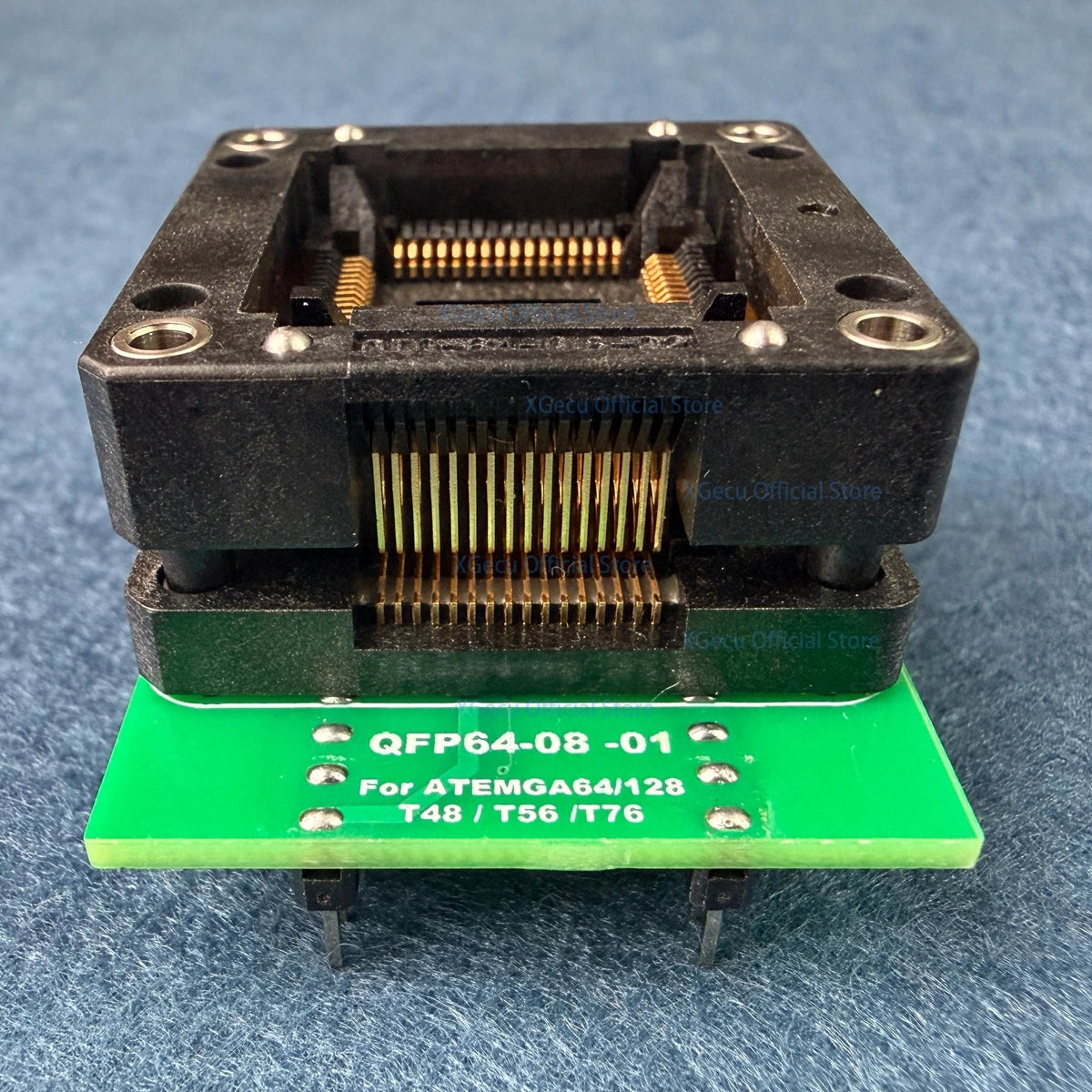

Supports ATMEGA64/128, ATMEGA165/169, ATMEGA325/329/645/649, and other chips. Includes genuine Japanese-made socket.
***********************************

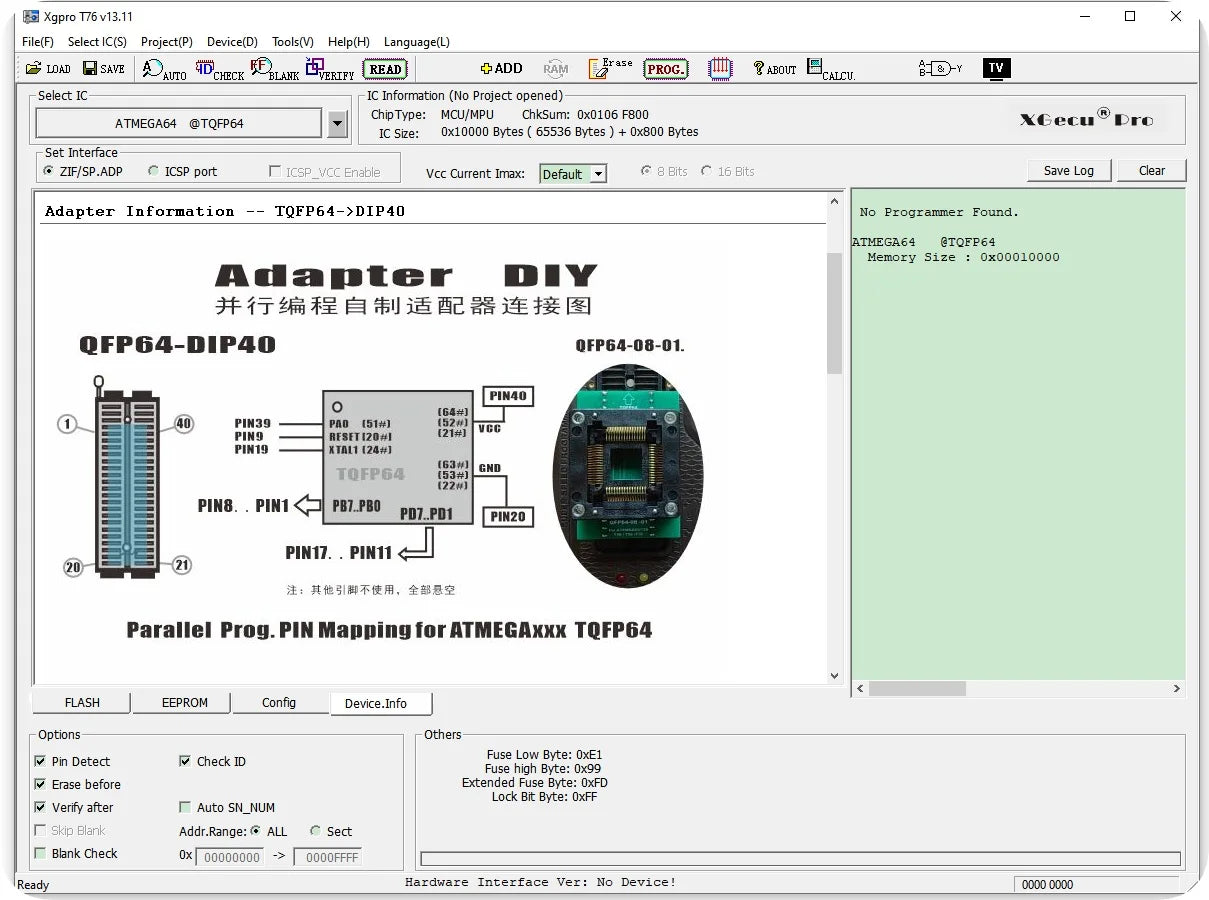

Note: This QFP64-DIP40 adapter is exclusively designed for use with XGECU series programmers and requires dedicated software. It is not compatible with other brands!
Specifications Table:

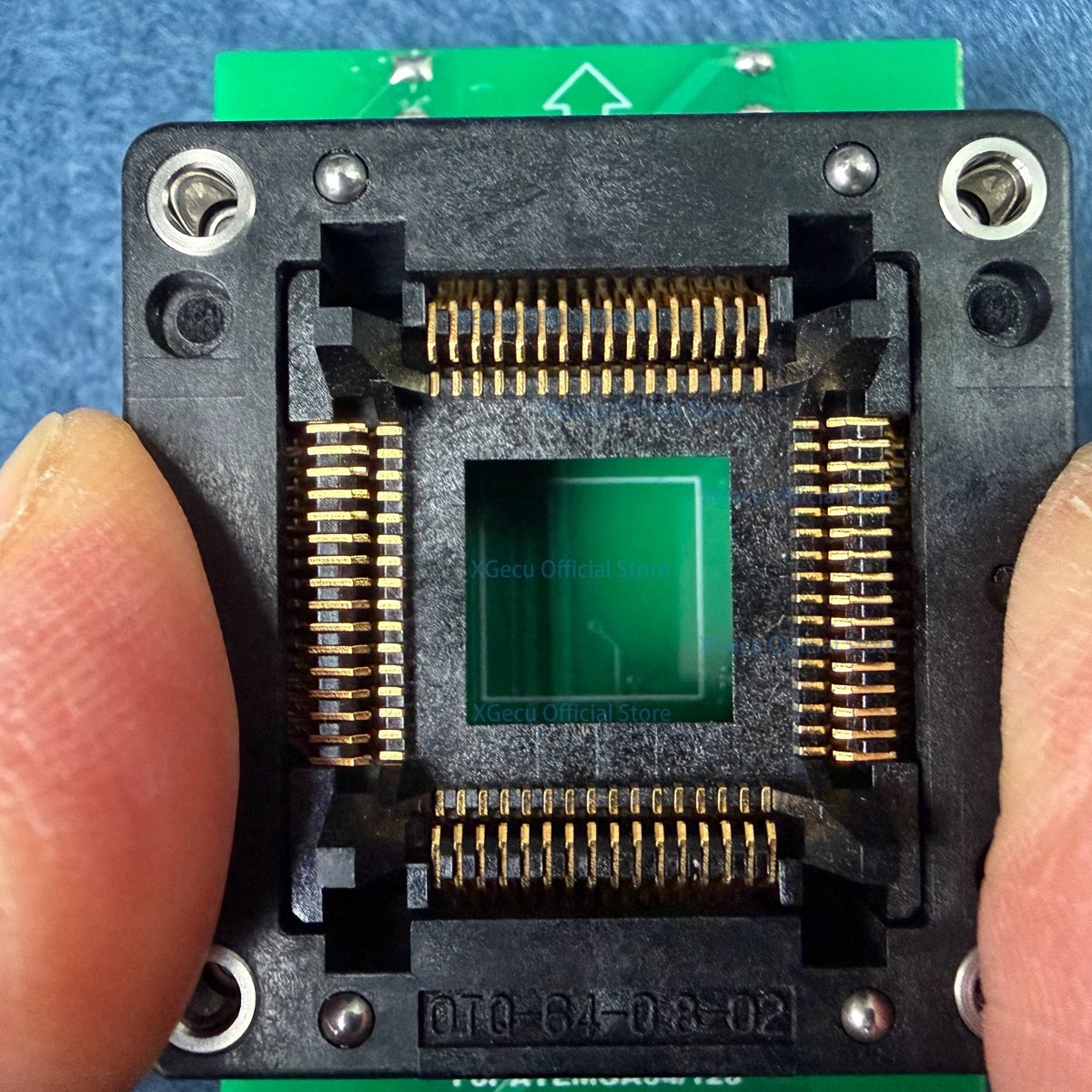

Socket Model: OTQ-64-0.8-01
Socket Brand: Enplas
Application: Programming socket, test socket, used for programming and testing QFP64 IC chips.
Features: Pin pitch: 0.8mm, irregular pin arrangement on the bottom.
Applicable IC Specifications:
Chip size including pins: 17.2×17.2mm
Chip body size (excluding pins): 14×14mm
Pin pitch: 0.8mm for 64-pin QFP packages.
Socket Dimensions: 34×34mm (L×W)
Supported Chip Models:
ATMEGA64 @TQFP64
ATMEGA64A @TQFP64
ATMEGA64L @TQFP64
ATMEGA128 @TQFP64
ATMEGA128A @TQFP64
ATMEGA128L @TQFP64
ATMEGA165A @TQFP64
ATMEGA165P @TQFP64
ATMEGA165PA @TQFP64
ATMEGA165PV @TQFP64
ATMEGA169A @TQFP64
ATMEGA169P @TQFP64
ATMEGA169PA @TQFP64
ATMEGA169PV @TQFP64
ATMEGA325A @TQFP64
ATMEGA325PA @TQFP64
ATMEGA329A @TQFP64
ATMEGA329PA @TQFP64
ATMEGA645A @TQFP64
ATMEGA645P @TQFP64
ATMEGA649A @TQFP64
ATMEGA649P @TQFP64
