100% original XGecu T48 EMMC BGA High Speed programming Adapter kit / Socket
Upgrade 2.0 Dual Head Probe Holder
Package includes:

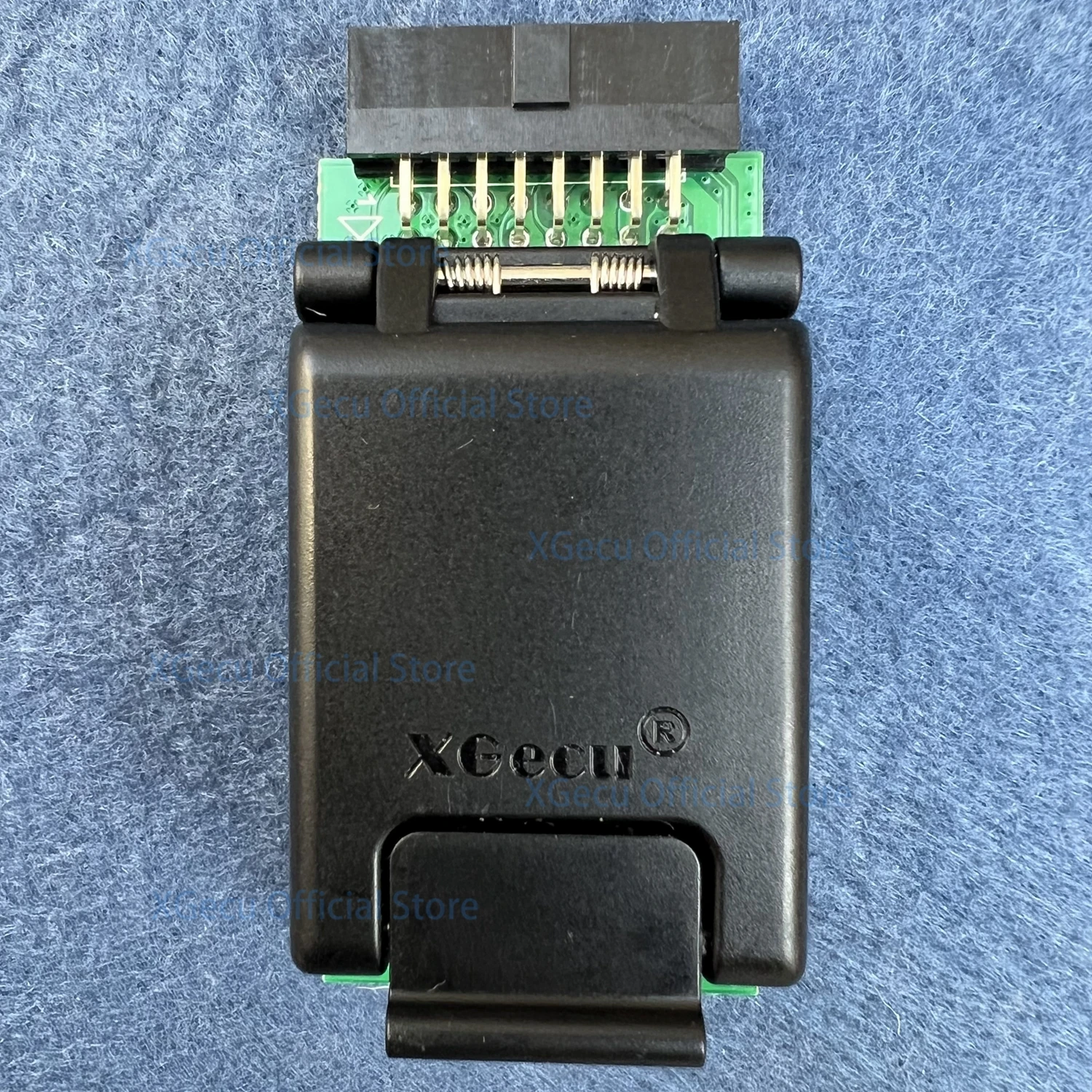

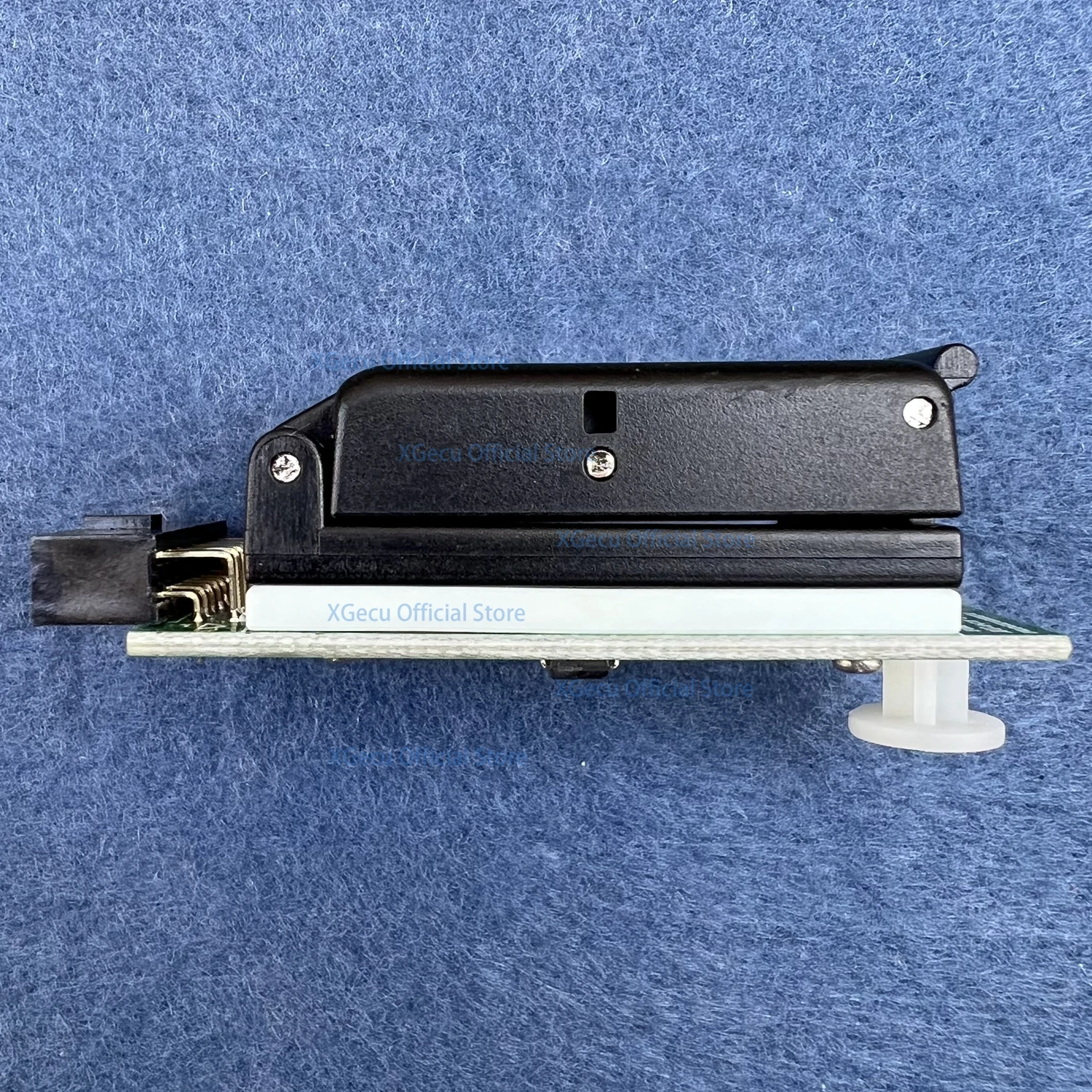

One pcs BGA socket

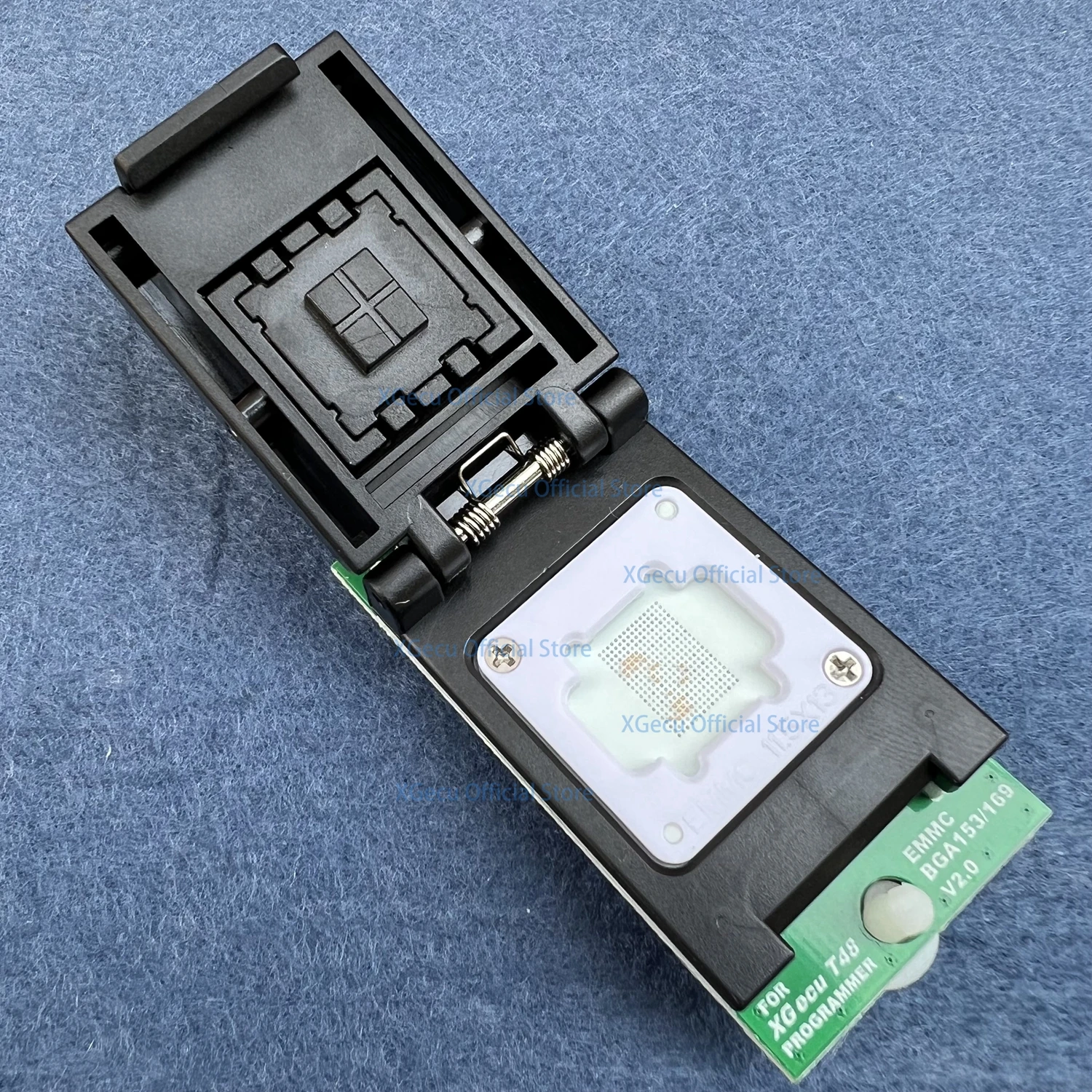

One pcs BGA153/169 adapter board

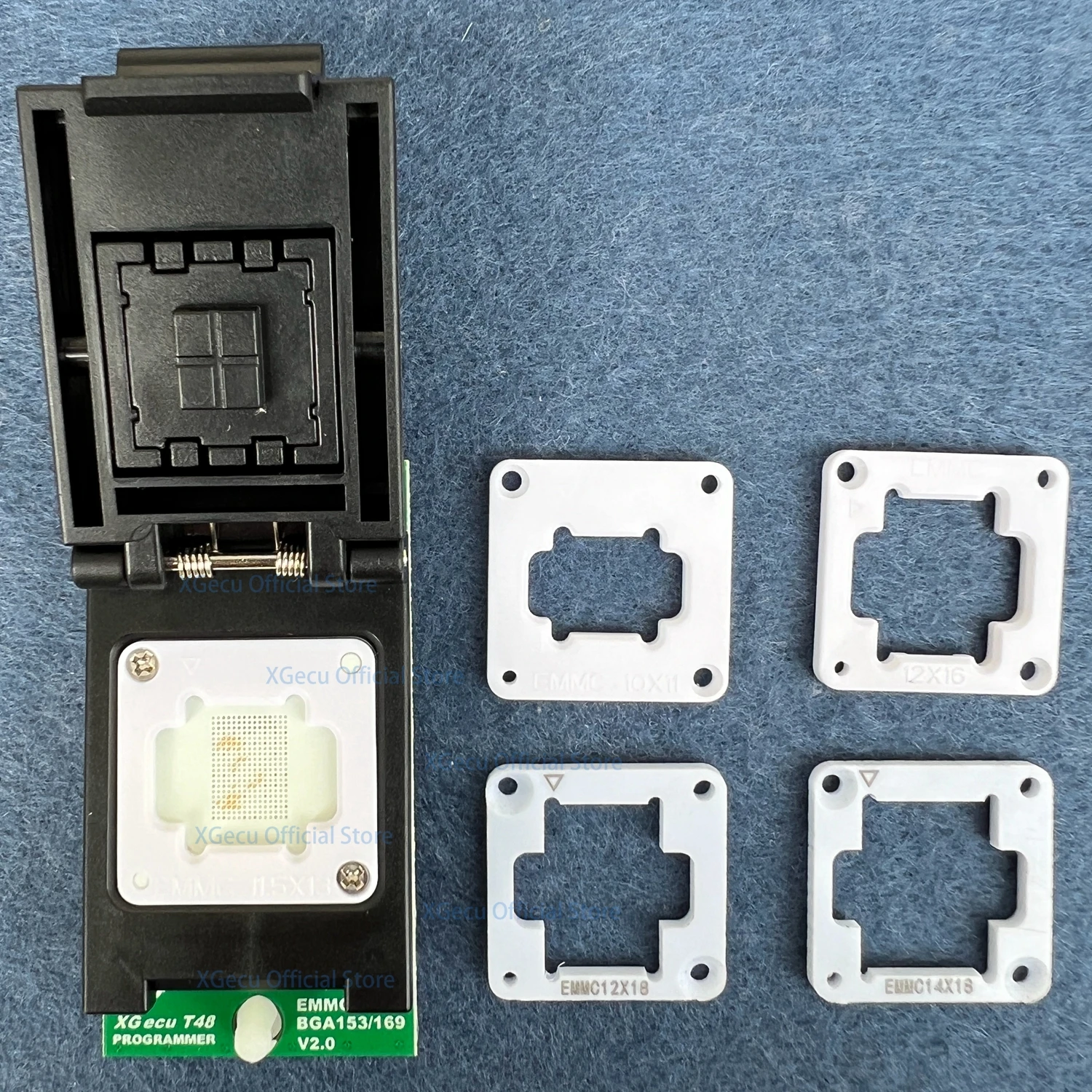

Five pcs limit frames:
11.5x13mm (already mounted into socket)
10x11 mm
12x1 6mm
12X18mm
14X18mm

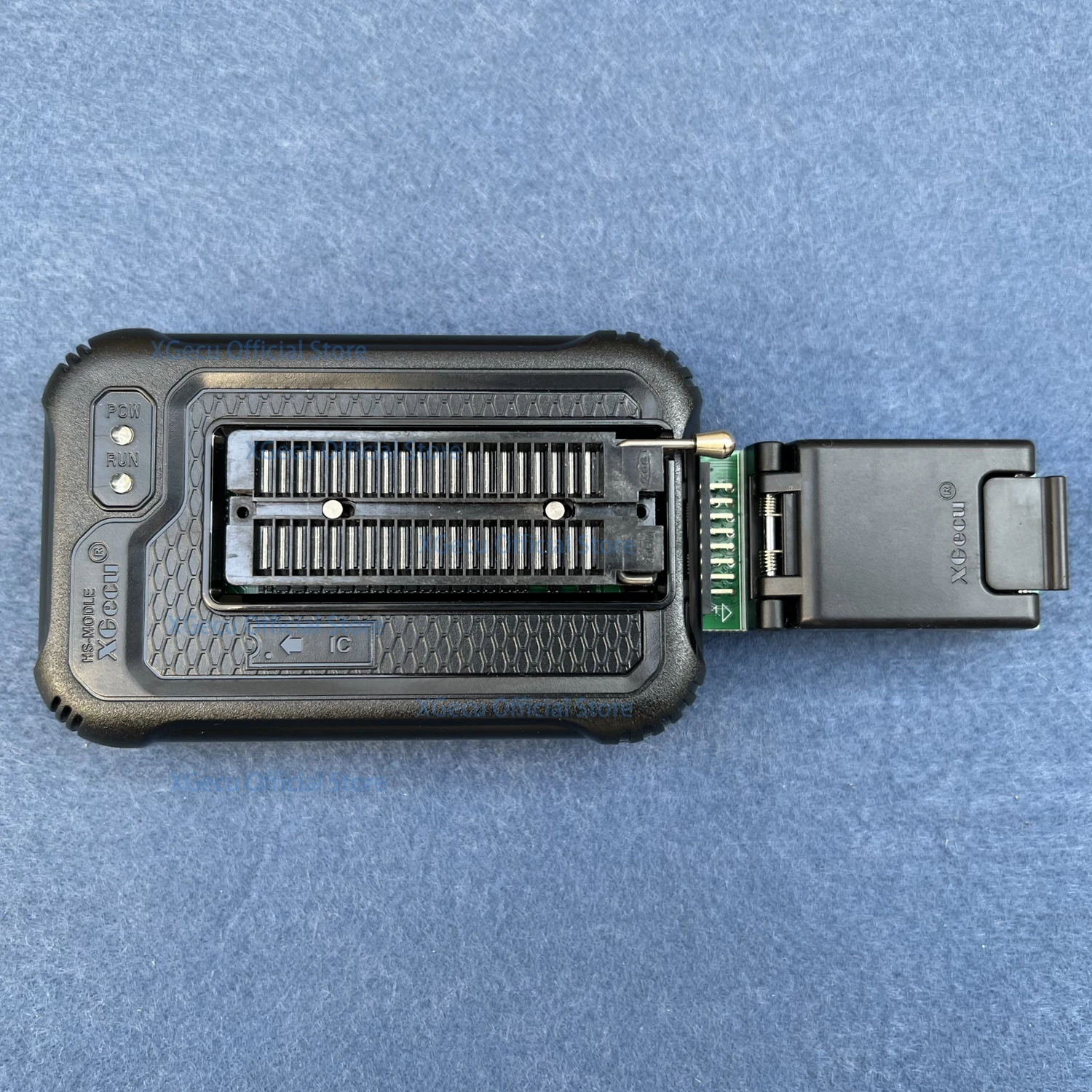

Support BGA153/ BGA169, can only work on XGecu T48 (TL866-3G) programmer
This is the special EMMC_BGA153/169 adapter for XGecu T48 programmer, with secure encryption chips and anti-interference circuit on PCB board, need to get from manufacturer, cannot DIY.
Please note: This adapter only can work on XGecu T48 programmer! Cannot use this adapter on other programmers, such as TL866CS, TL866A, TL866II or T56 !!!
Assigned for high-speed programming EMMC BGA153/ BGA169 chips.
T48 programmer support list :
www.xgecu.com/MiniPro/T48_List.txt
(Before buying, please make sure the chip models you want to program are in support list!)
Self-developed high-precision mould to create a higher stability, longer life (has applied for a patent, counterfeit will be punished!)
Please note: The price of the probe is more than 10 times the price of the elastic steel clip, the probe is generally only used in high-end test holder!
Please note: It is strictly prohibited to use washboard water and halogen-containing solvents to clean the BGA socket, which will cause the material to melt and be scrapped!!!

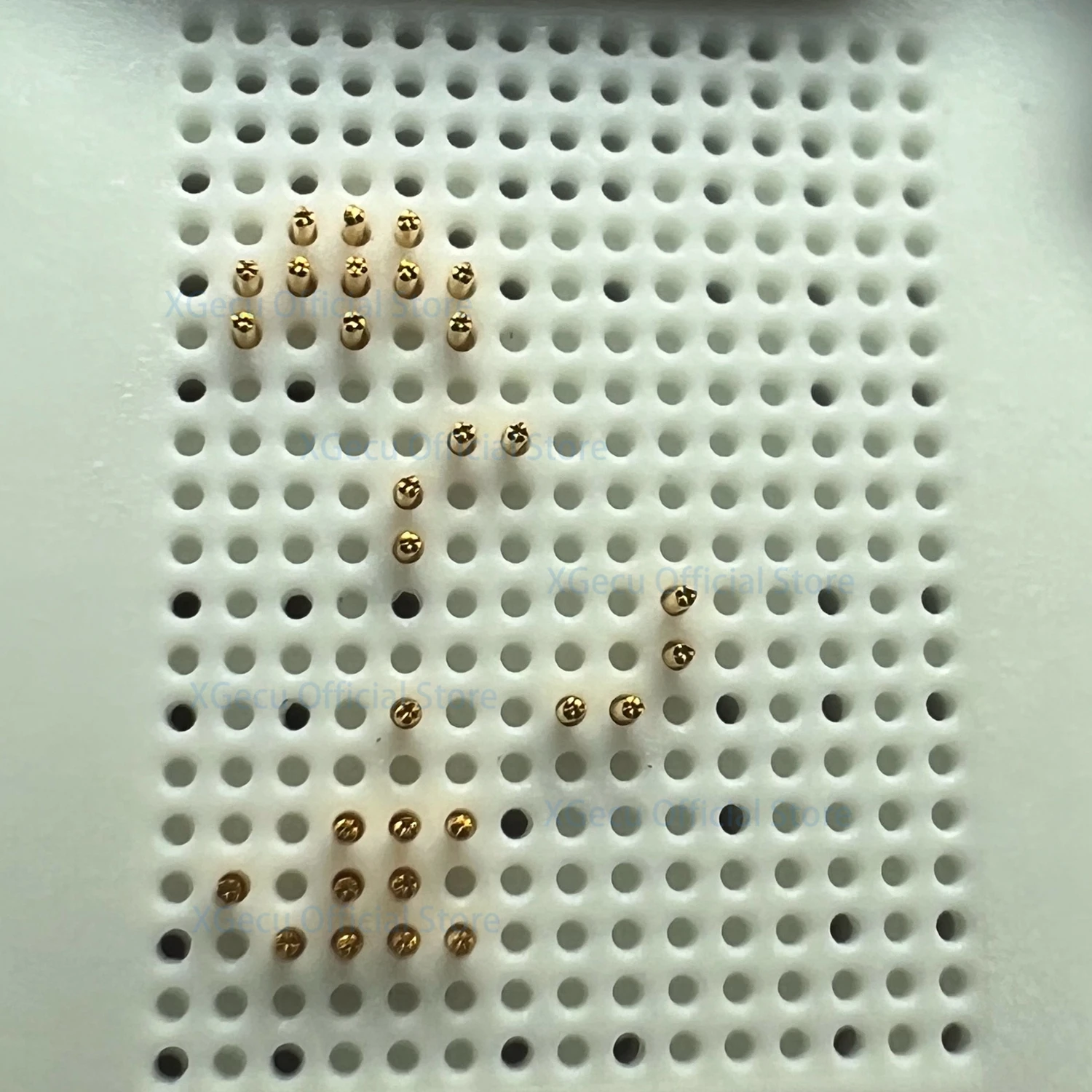

Advantages of XGecu BGA probe holders:
●Reliable contact, long service life of the probe, theoretically up to 100,000 times.
●High positioning accuracy, the chip can be tested with or without ball implantation.
●Probe can be replaced by yourself, which can greatly reduce the user's cost of use.
●Self-developed high-precision mould production, very high cost-effective
