Description

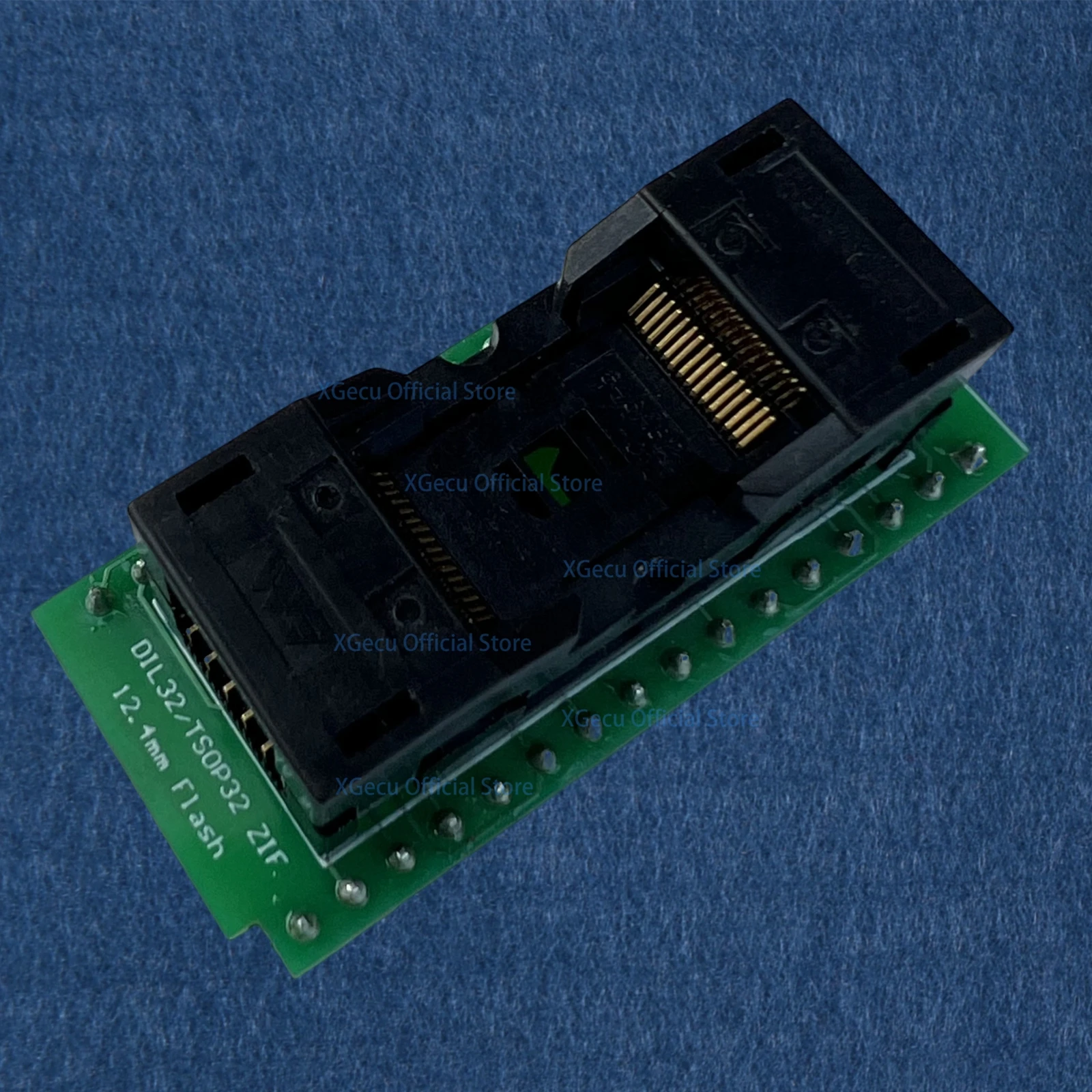

This TSOP32 (S) adapter is a standard EPROM programmer adapter.
It is suitable for (8mm x 14mm) body width TSOP32 package chips such as SST39SF020A, SST39SF040, SST39LF512, SST39LF010, SST39LF020, SST39LF040,SST39VF512, SST39VF010, SST39VF020, SST39VF040 etc. It can be used on: XGecu T56/ T48/ TL866A / TL866CS, All willem, GQ-4X, TOP853/TOP2004/TOP2005/TOP2048, G540/G840/VS4800, TNM2000/TNM5000, EasyPro, SuperPRO programmers and other 40 or 48 pin ZIF socket programmers.

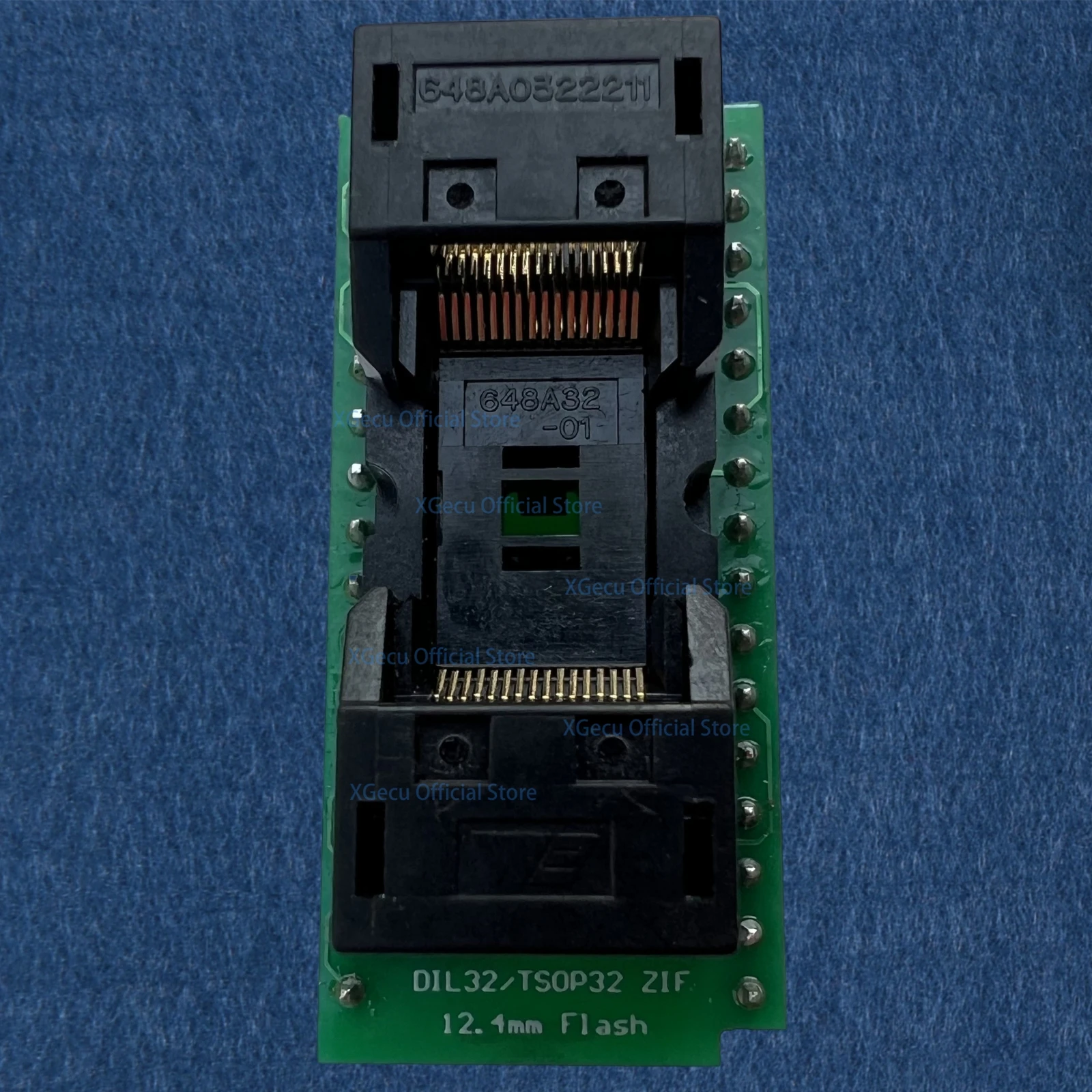

Model Number: 648A0322211-A01
Brand: WELLS-CTI
High quality, made in USA
Applicable Devices:

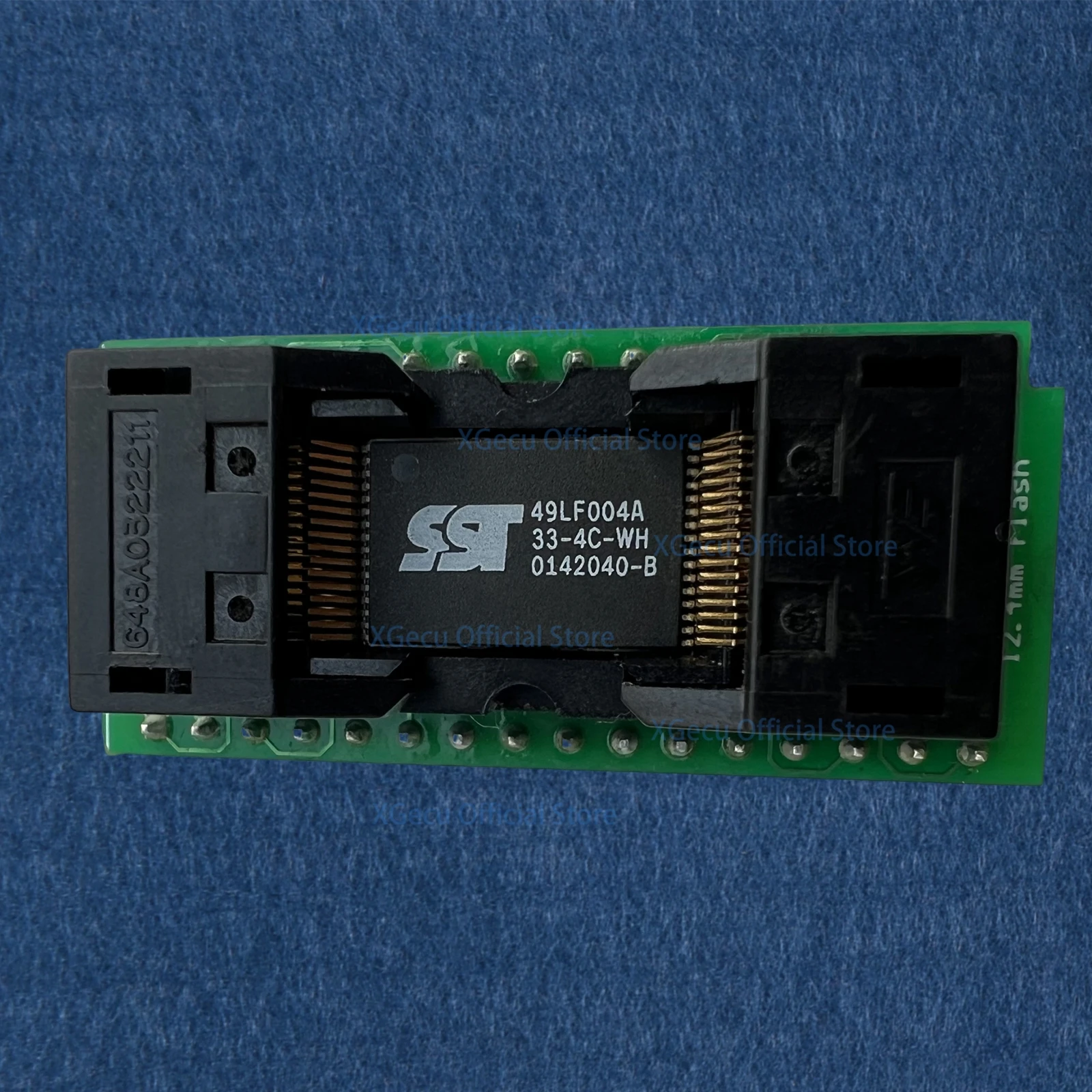

Suitable for (8mm x 14mm) body width TSOP32 chips. You can see the chip dimension as above.
Pitch: 0.5mm

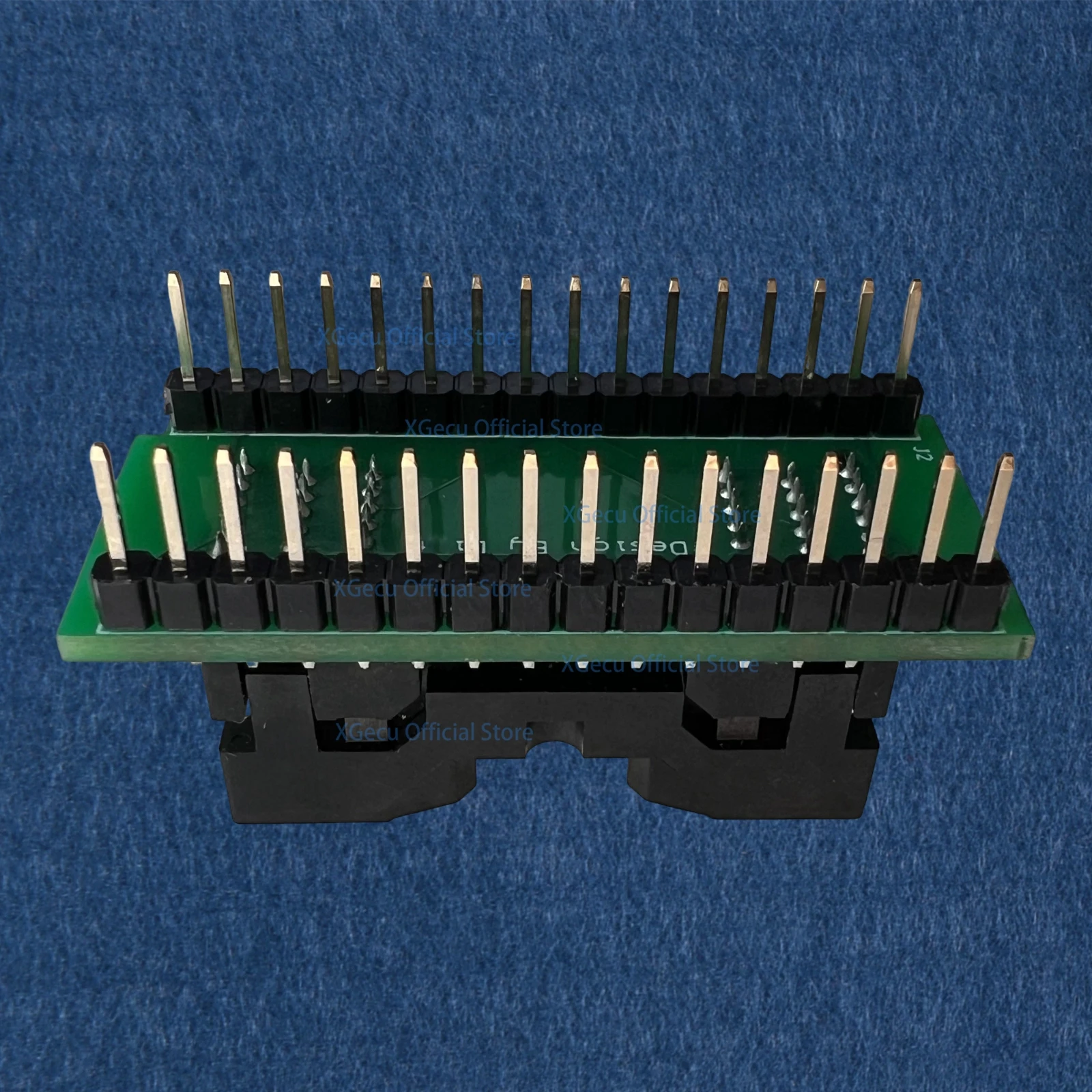

DIP Pin Header Dimensions:
Pitch: 100mil (2.54mm)
Width: 600mil (1.52cm)
Package include:
1pcs TSOP32-DIP32 adapter

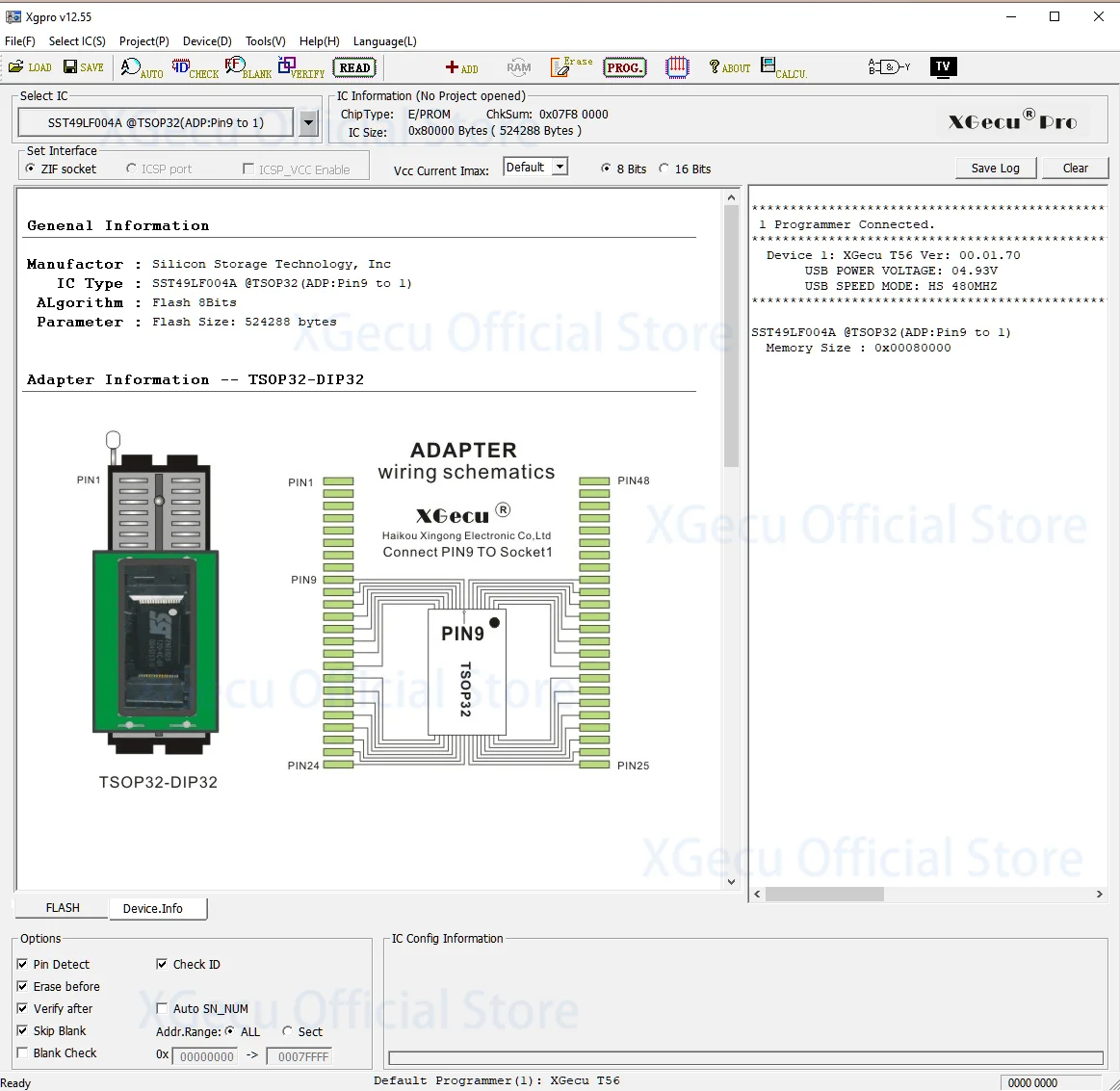

for example,
