100% original BGA64 3-in-1 Adapter IC socket for XGecu T48 progammer
Model: ADP_BGA64_EX-A ADP_BGA64_EX-B ADP_BGA64_EX-C
Upgrade V2.0 Dual Head Probe Holder

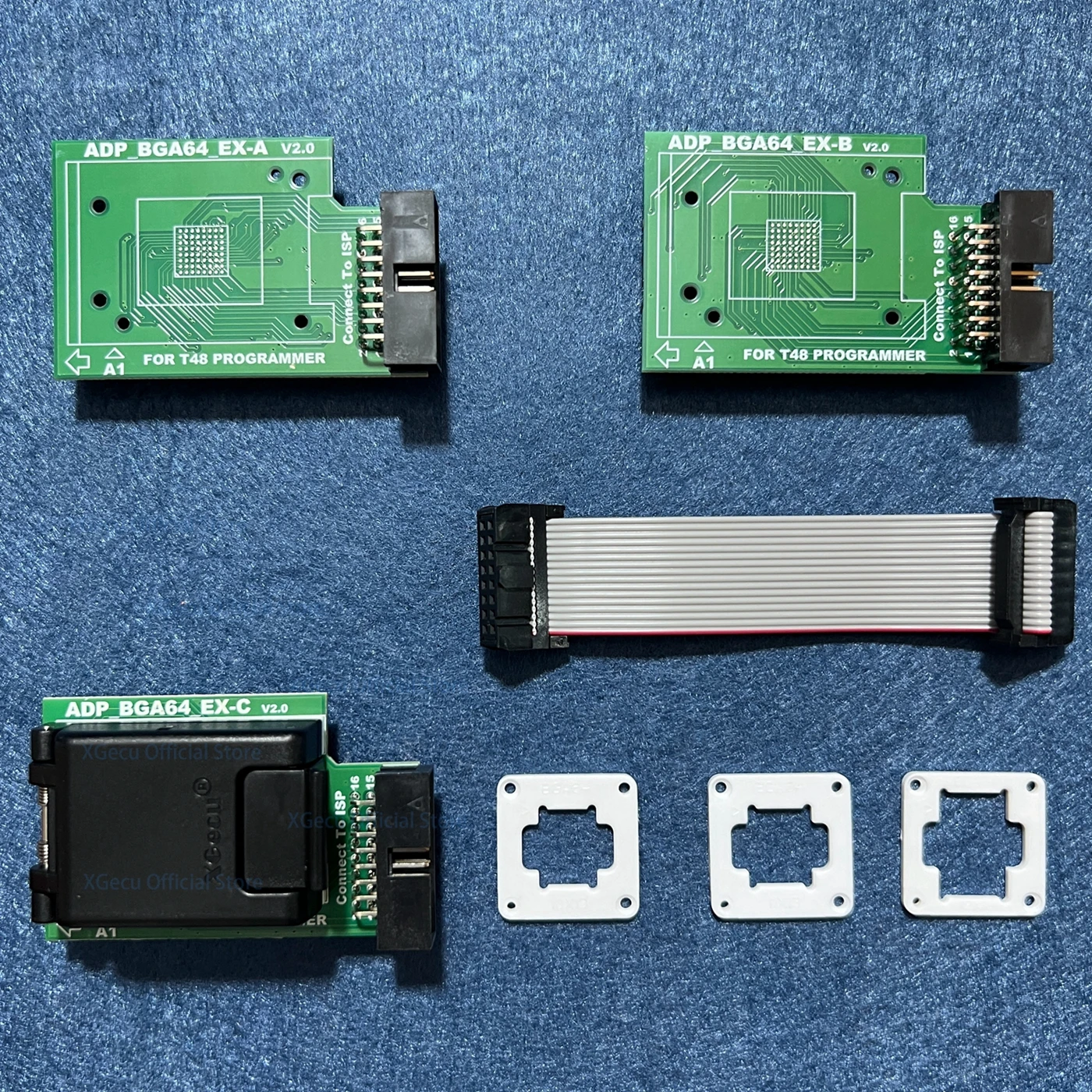

The BGA64 V2 adapter kit includes:

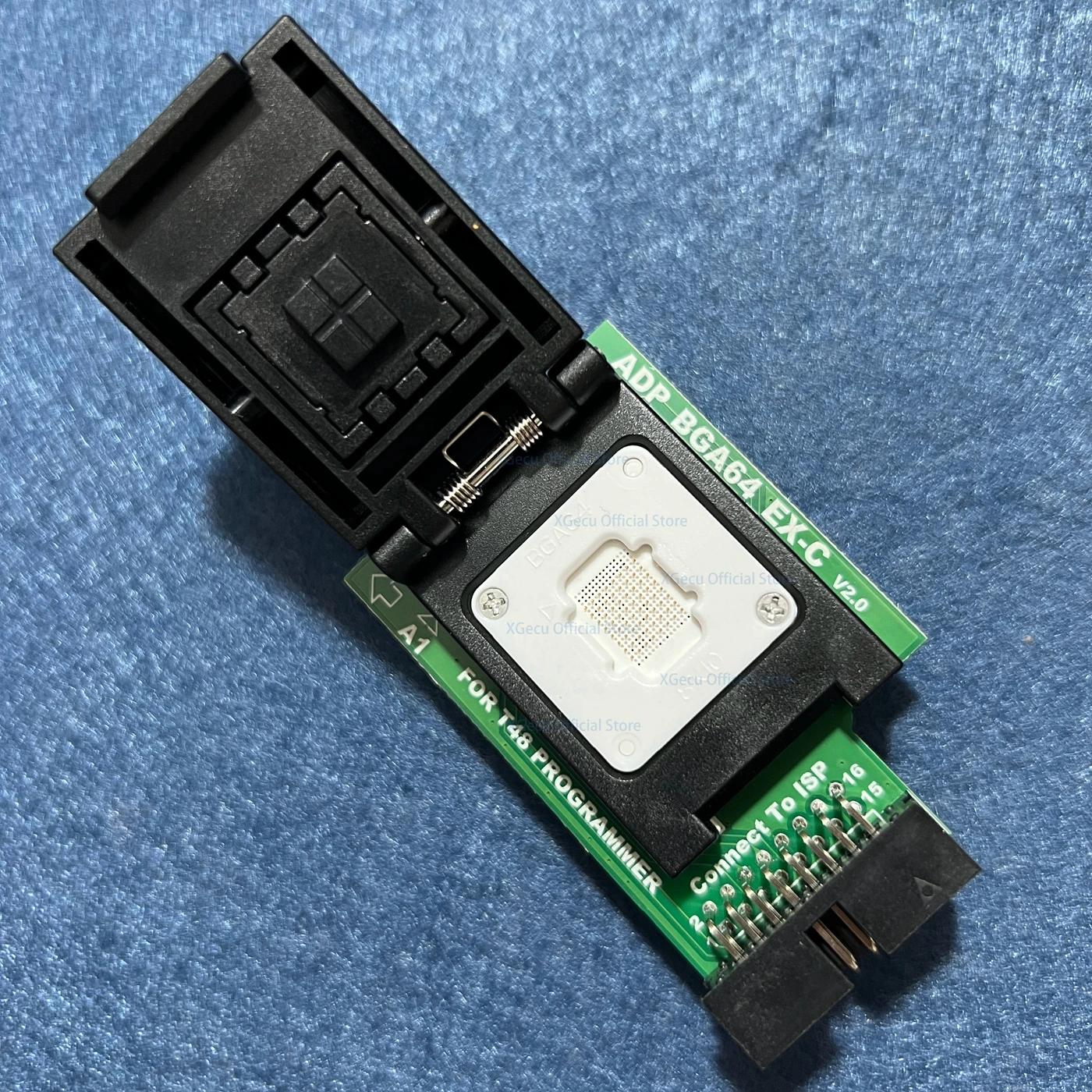

1. BGA64 socket (with one pcs positioning frame: 8X10 mm)

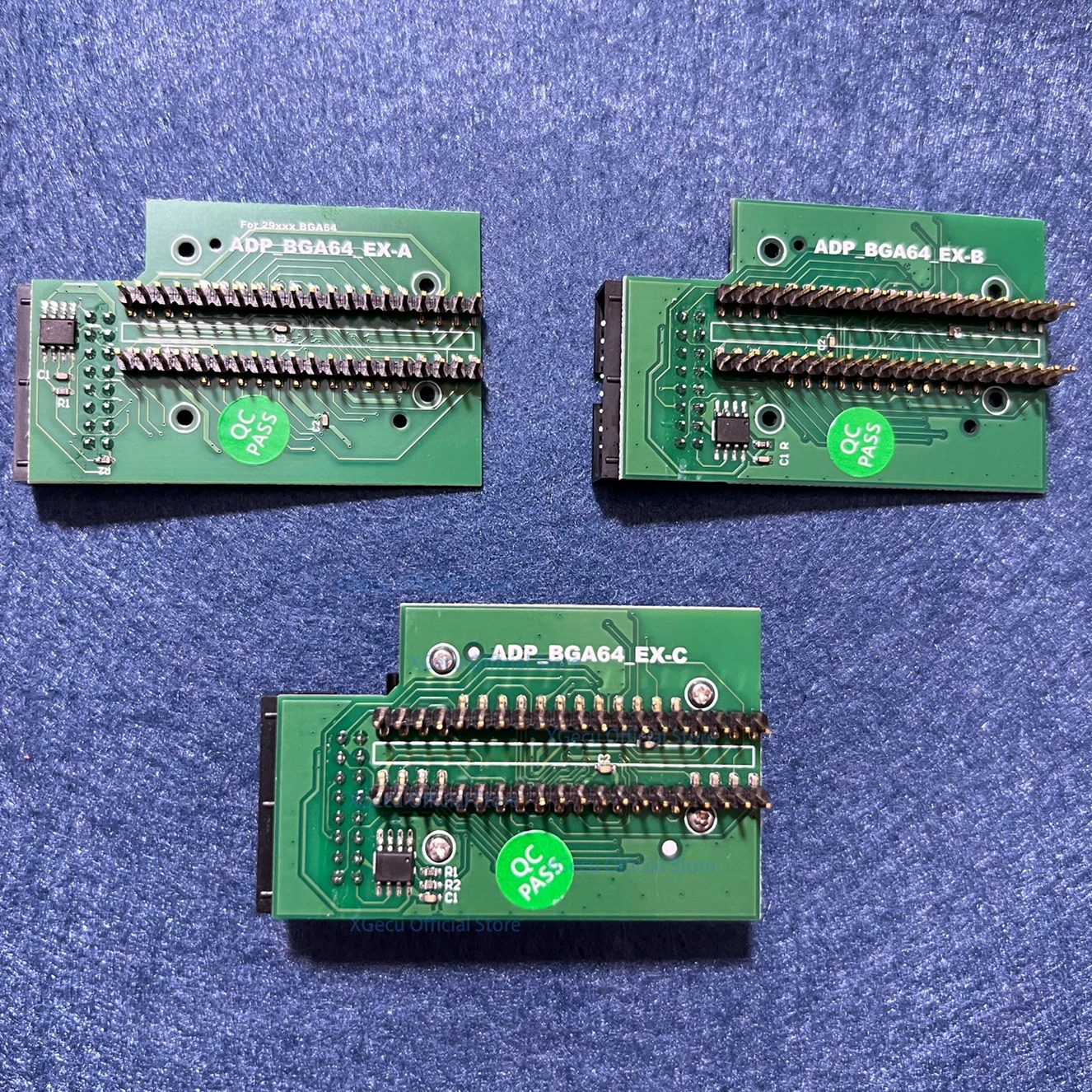

2. ADP_BGA64_EX-A bottom board
3. ADP_BGA64_EX-B bottom board
4. ADP_BGA64_EX-C bottom board

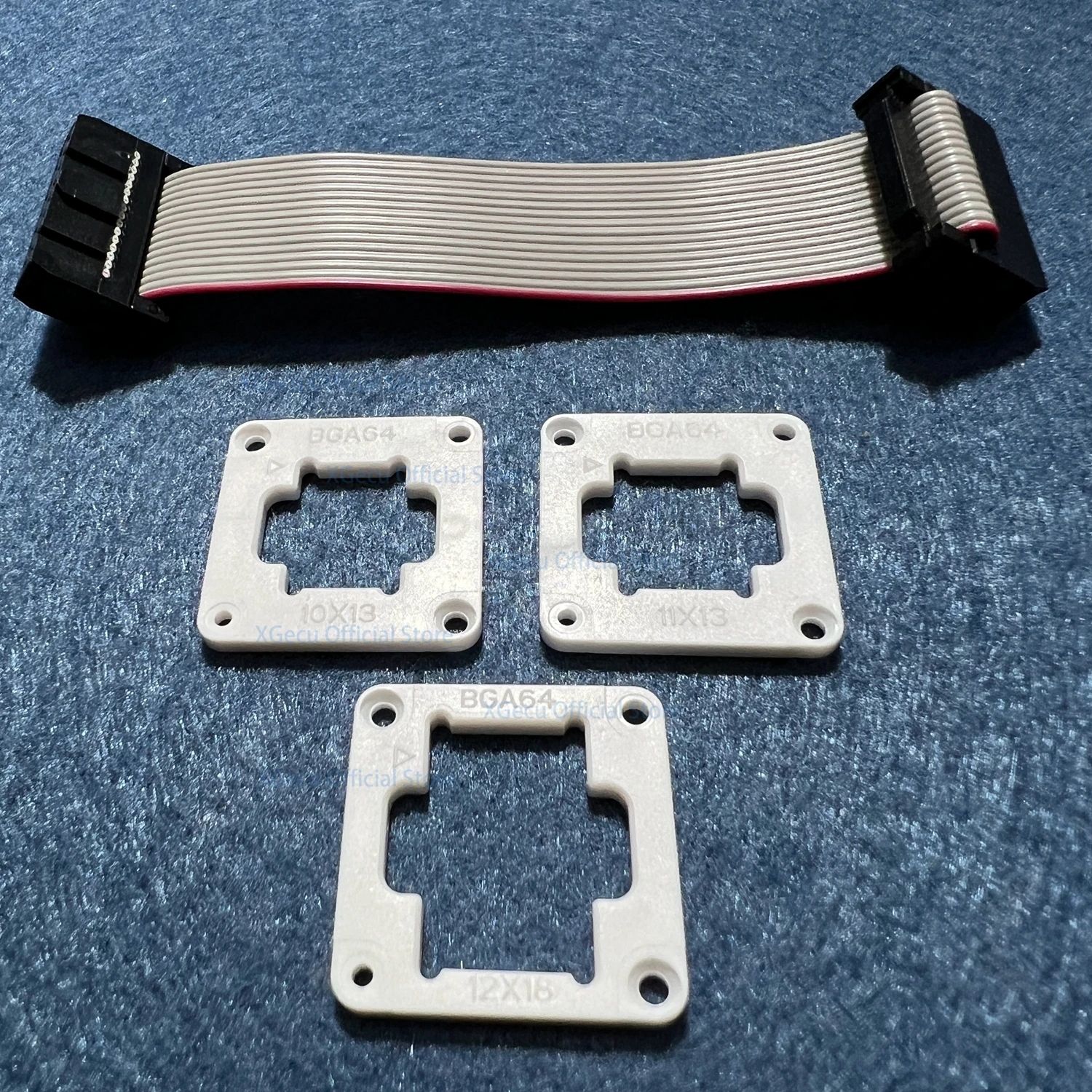

5. ISP cable
6. IC Positioning frame 10X13 mm
7. IC Positioning frame 11X13 mm
8. IC Positioning frame 12X18 mm
This special programming adapter, assigned for Nor flash in BGA64 package
(for example: 29XXX BGA64; 28F32/64/128/256; 28F128/256/51200A-P )
Supported BGA64 chip sizes:8X10 mm, 10X13 mm, 11X13 mm, 12X18 mm
Please note: This adapter only can work on XGecu T48 programmer! Cannot use this adapter on other programmers, such as TL866CS, TL866A, TL866II or T56 !!!
Assigned for high-speed programming EMMC BGA64 chips.

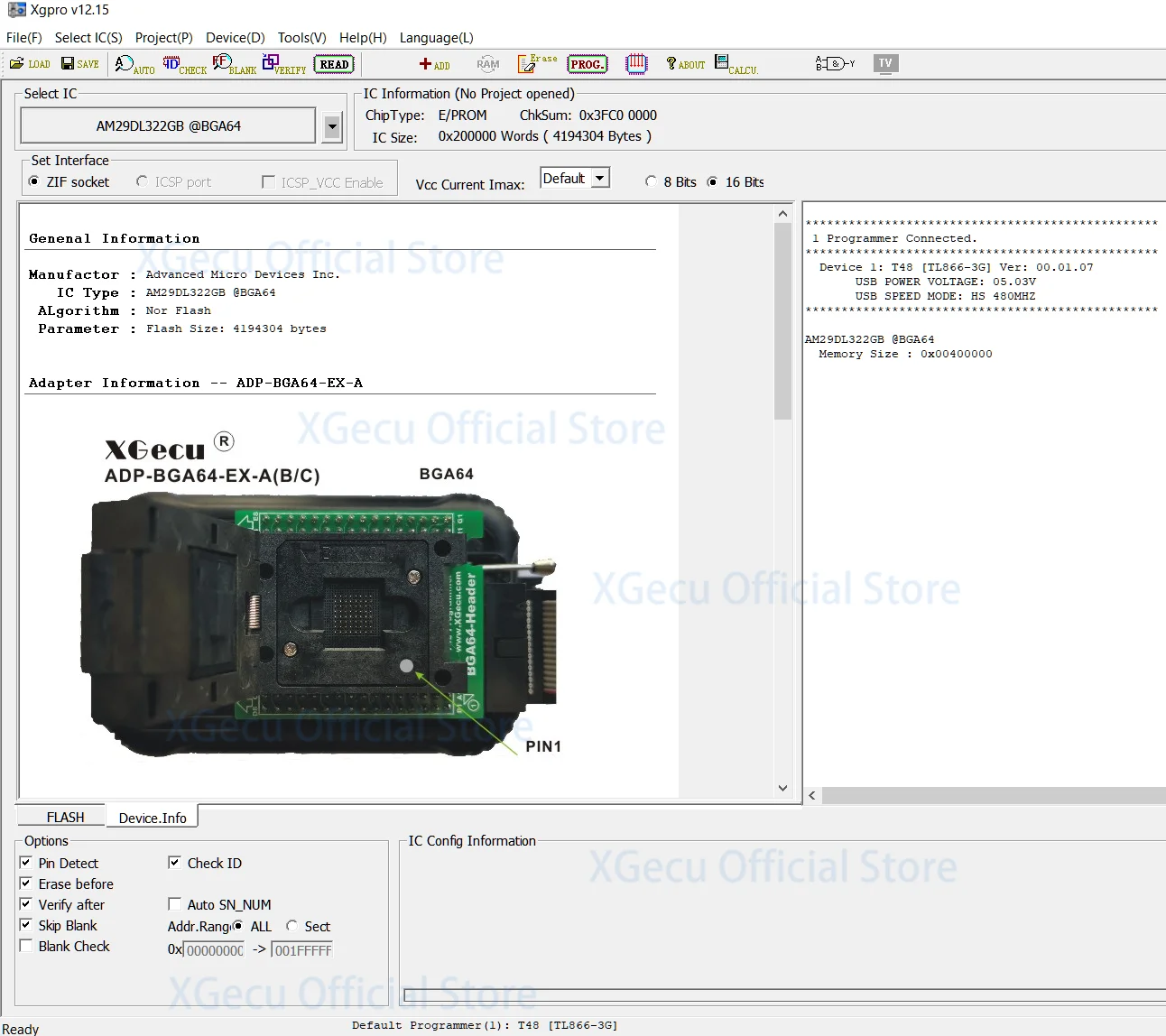

T48 programmer support list :
www.xgecu.com/MiniPro/T48_List.txt
(Before buying, please make sure the chip models you want to program are in support list!)
Self-developed high-precision mould to create a higher stability, longer life
Please note: The price of the probe is more than 10 times the price of the shrapnel, the probe is generally only used in high-end test holder!
Please note: It is strictly prohibited to use washboard water and halogen-containing solvents to clean the BGA socket, which will cause the material to melt and be scrapped!!!

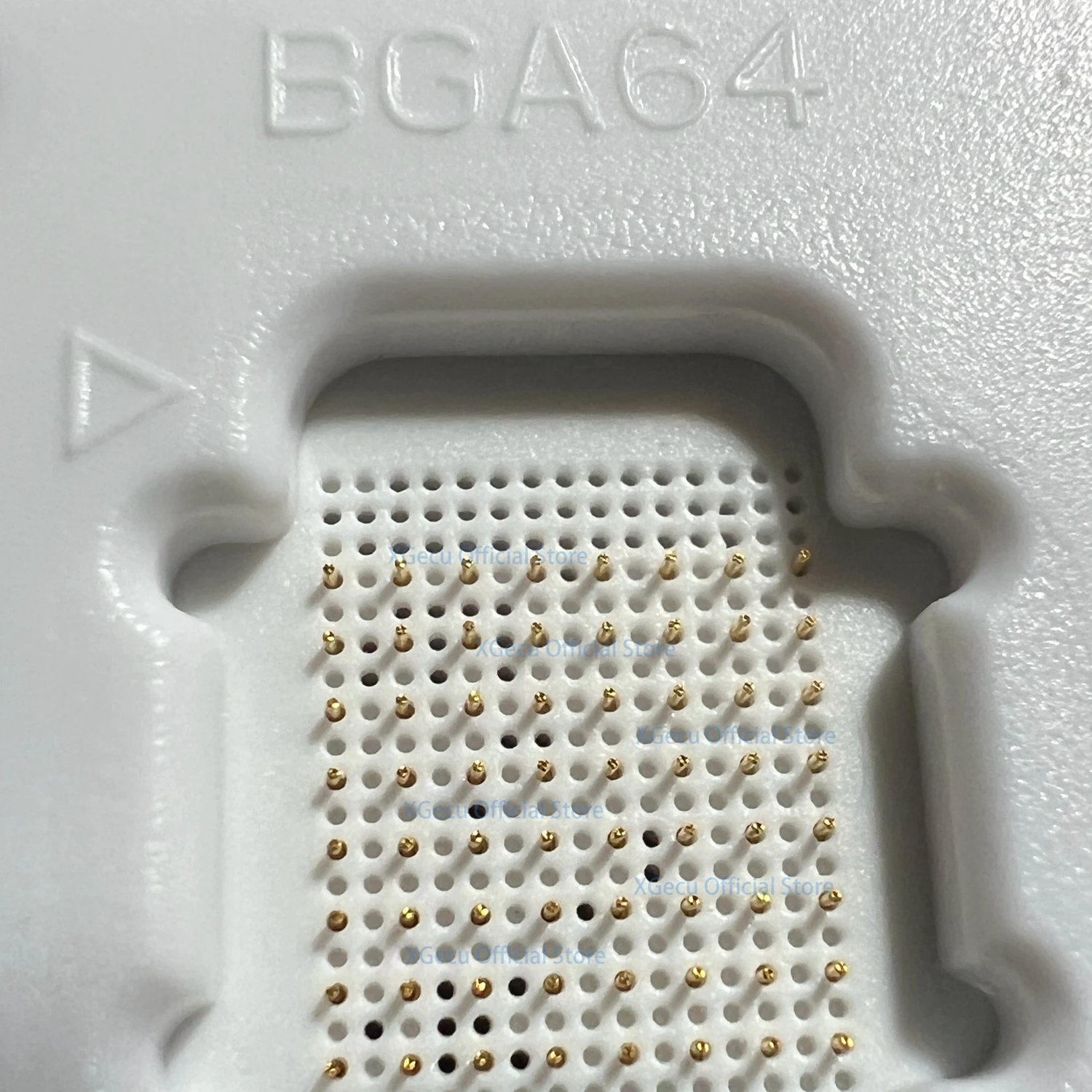

Advantages of XGecu BGA probe holders:
●Reliable contact, long service life of the probe, theoretically up to 100,000 times.
●High positioning accuracy, the chip can be tested with or without ball implantation.
●Probe can be replaced by yourself, which can greatly reduce the user's cost of use.
●Self-developed high-precision mould production, very high cost-effective
