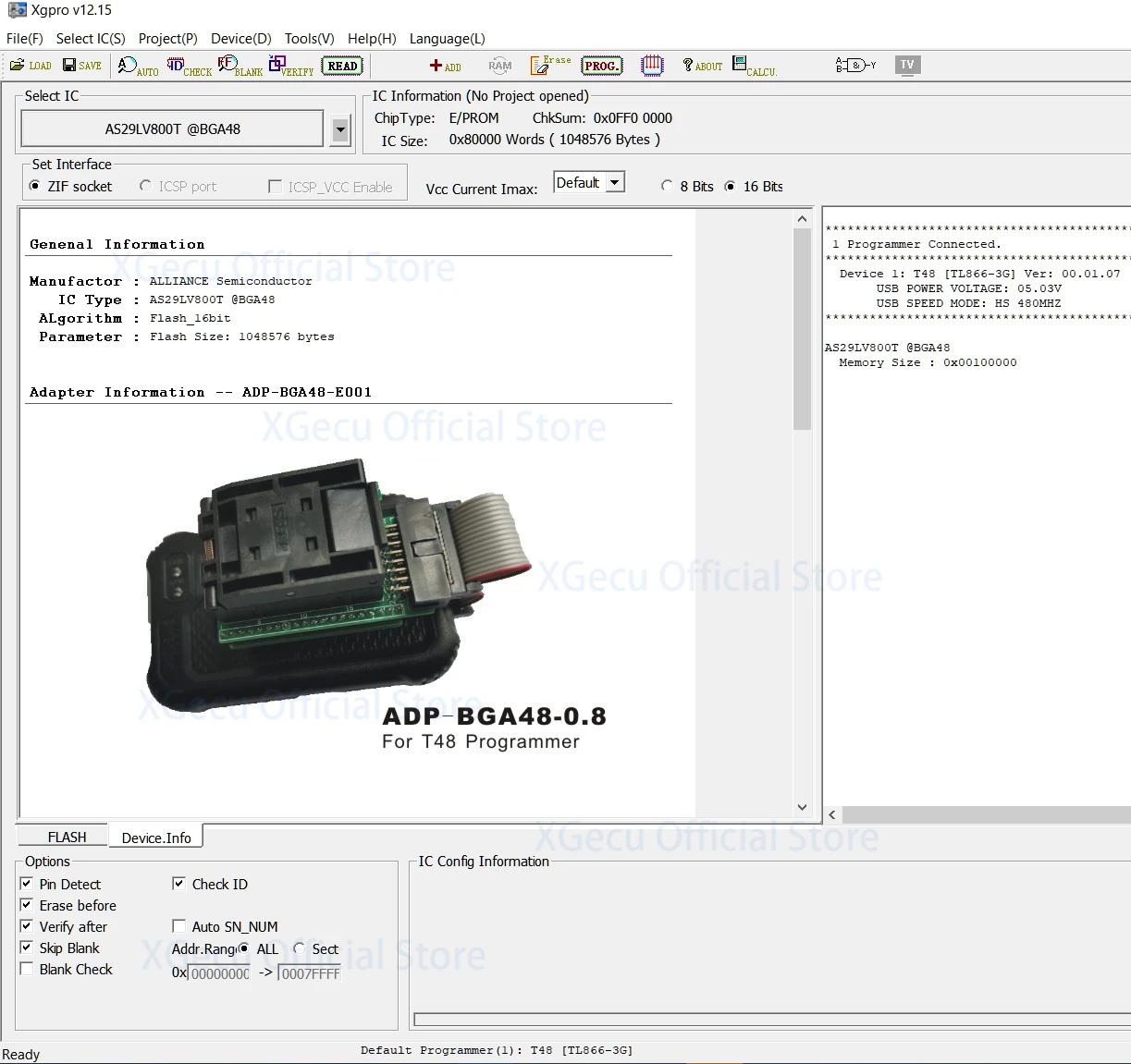

BGA48 Adapter can only work on XGecu T48 progammer model: ADP-BGA48-E001 for NOR and NAND Flash BGA48 package of chips
specialized adapter for NOR and NAND flash devices in package BGA48 pitch 0.8 mm
Supported BG48 chip sizes: 6X8 mm, 6.15X8.15 mm, 6.5X8 mm
operating (mechanical) warranty of ZIF socket - 50,000 actuations,
The product adopts bow-shaped shrapnel structure, this structure coupled with imported beryllium copper gold plating has good stretch performance, special crescent-shaped needle, more can do Japan and other brands of test holders can not do the important feature: our can have a ball without ball residual ball can be tested! The other brands can only test new chips with balls.

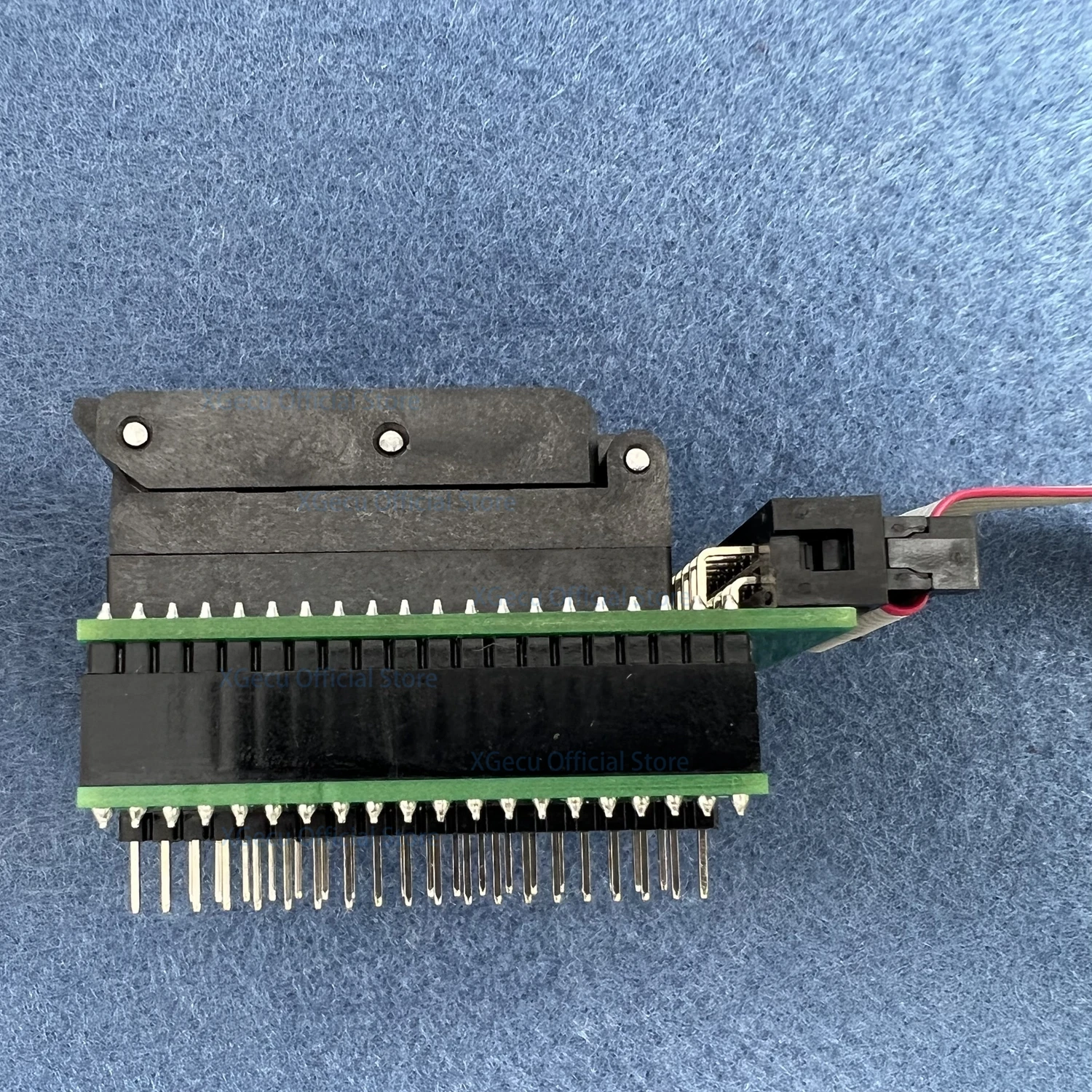

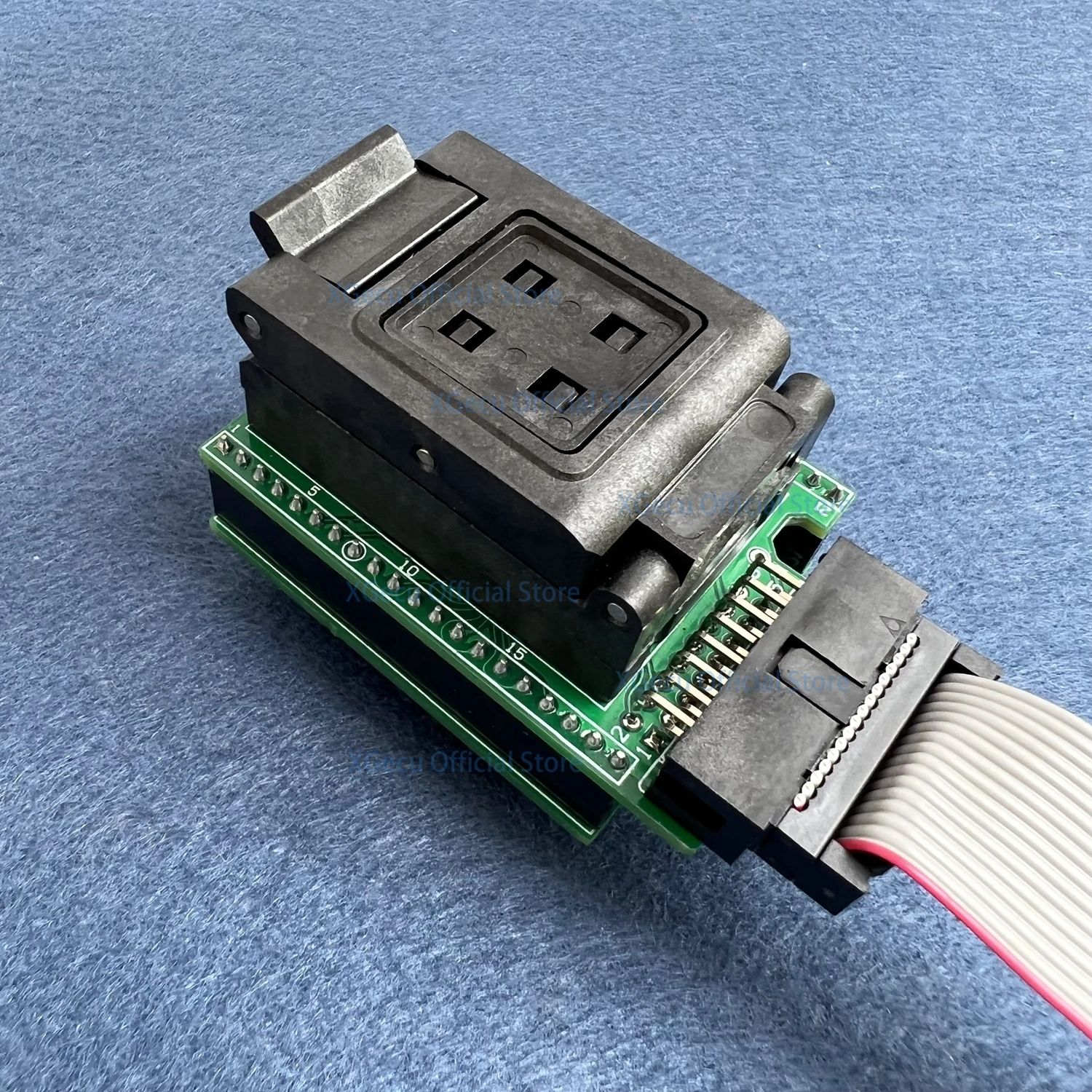

Socket ZIF BGA48, ClamShell type
Bottom 2 rows, 2x20 pins, square, 0.6x0.6mm, rows spacing 600mil
Class Specialized
Subclass Memory (NOR/NAND/eMMC)
Package includes:
1. BGA48 Header

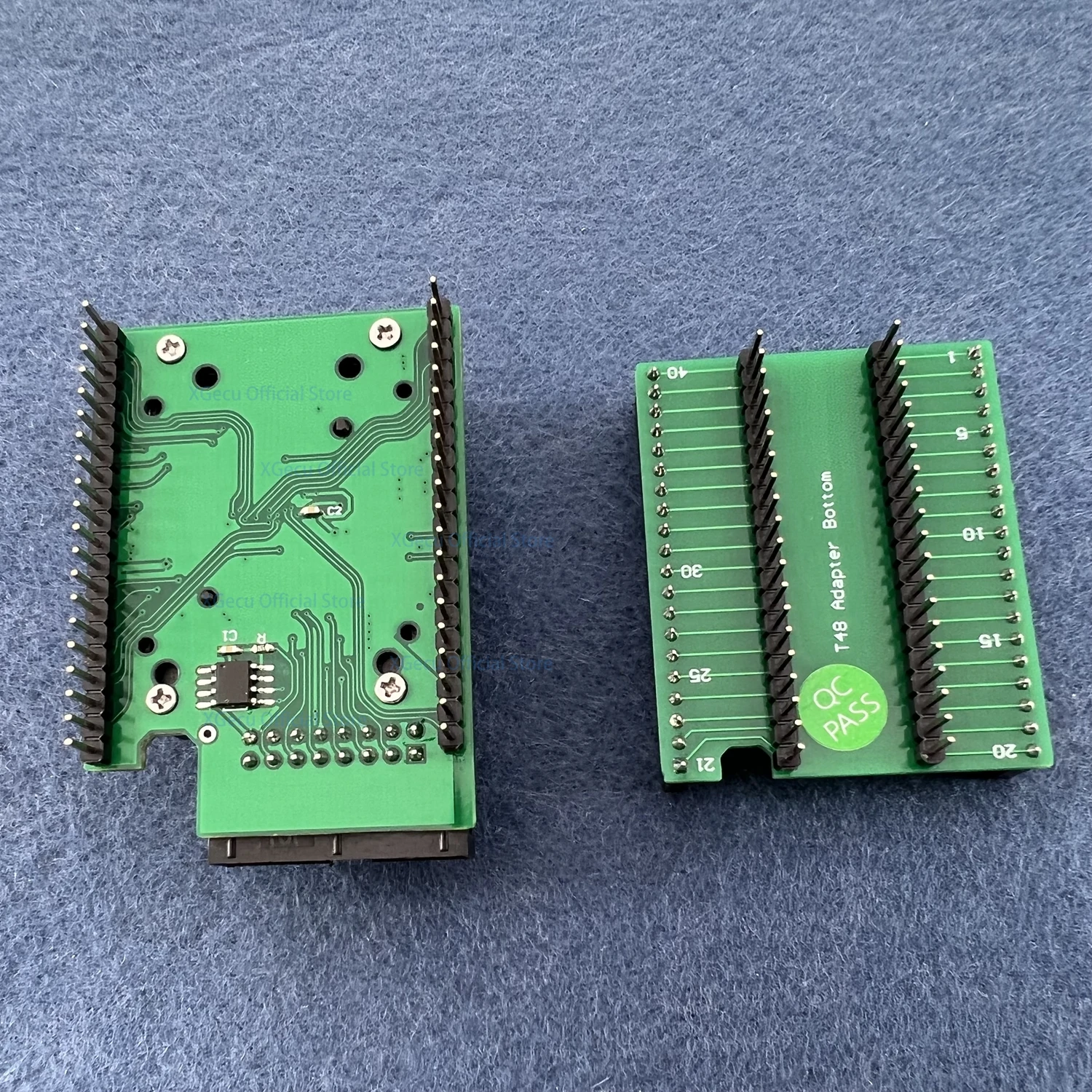

2. T48 adapter bottom board
3. ISP cable
4. IC positioning frame 6X8 mm
5. IC positioning frame 6.15X8.15 mm
6. IC positioning frame 6.5X8 mm
Please note: This BGA48 adapter can only be used for the T48 (TL866-3G) programmer, it does not support TL866CS, TL866A, TL866II and T56 programmers, nor other brands of programmers.
