ADP-BGA48-0.8 & ADP-BGA63-0.8 Two-in-One Adapter For BGA48/63 to DIP48 only for use T56 or T76 programmer
**Product Model:** ADP-BGA48-0.8 & ADP-BGA63-0.8 Two-in-One Adapter
**Product Overview:**
The BGA48/63 two-in-one adapter, launched by XGecu, is an efficient chip programming tool featuring a modular split design. This design allows the BGA48 and BGA63 to share the same socket. Users can easily switch between the BGA48 or BGA63 PCB with a simple plug-and-play operation, providing flexibility for different chip specifications and ensuring a user-friendly, quick operation experience.
**Key Advantages:**
- **Modular Split Design:** A single socket is compatible with both BGA48 and BGA63 chip specifications, offering convenient operation.
- **Magnetic Positioning Frame:** The magnetic positioning frame allows for quick frame switching without the need for screws, saving both time and effort.
- **Multiple Size Positioning Frames:** Comes with 10 commonly used positioning frame sizes, covering almost all mainstream BGA48 and BGA63 package chips, ensuring stronger compatibility.
- **Cost-Effective:** One product set fulfills the dual functionality of BGA48 and BGA63, reducing equipment procurement costs.
**Compatible Devices:**
- Compatible with XGecu T56 programmer
- Compatible with the latest XGecu T76 programmer
**Product Package List:**

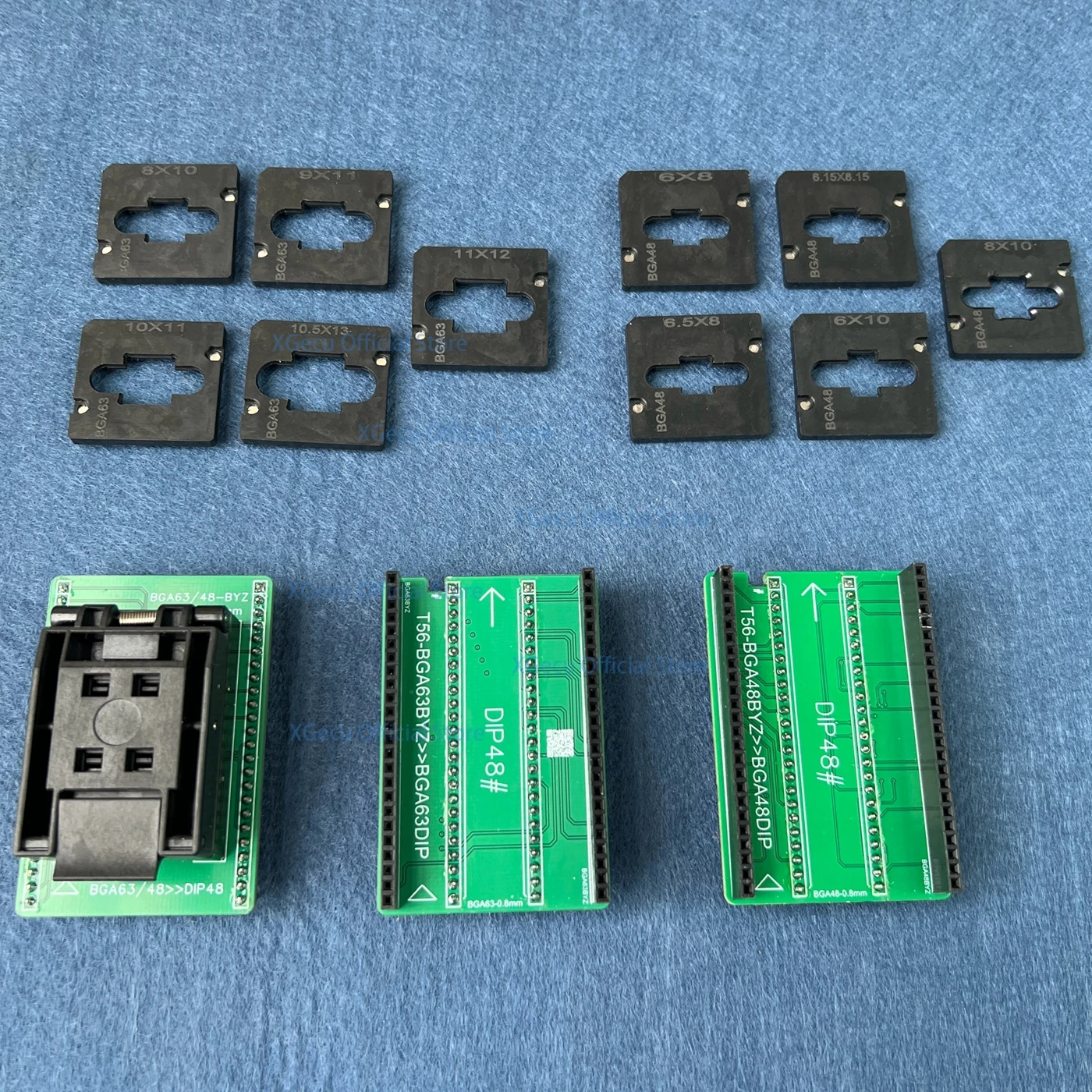

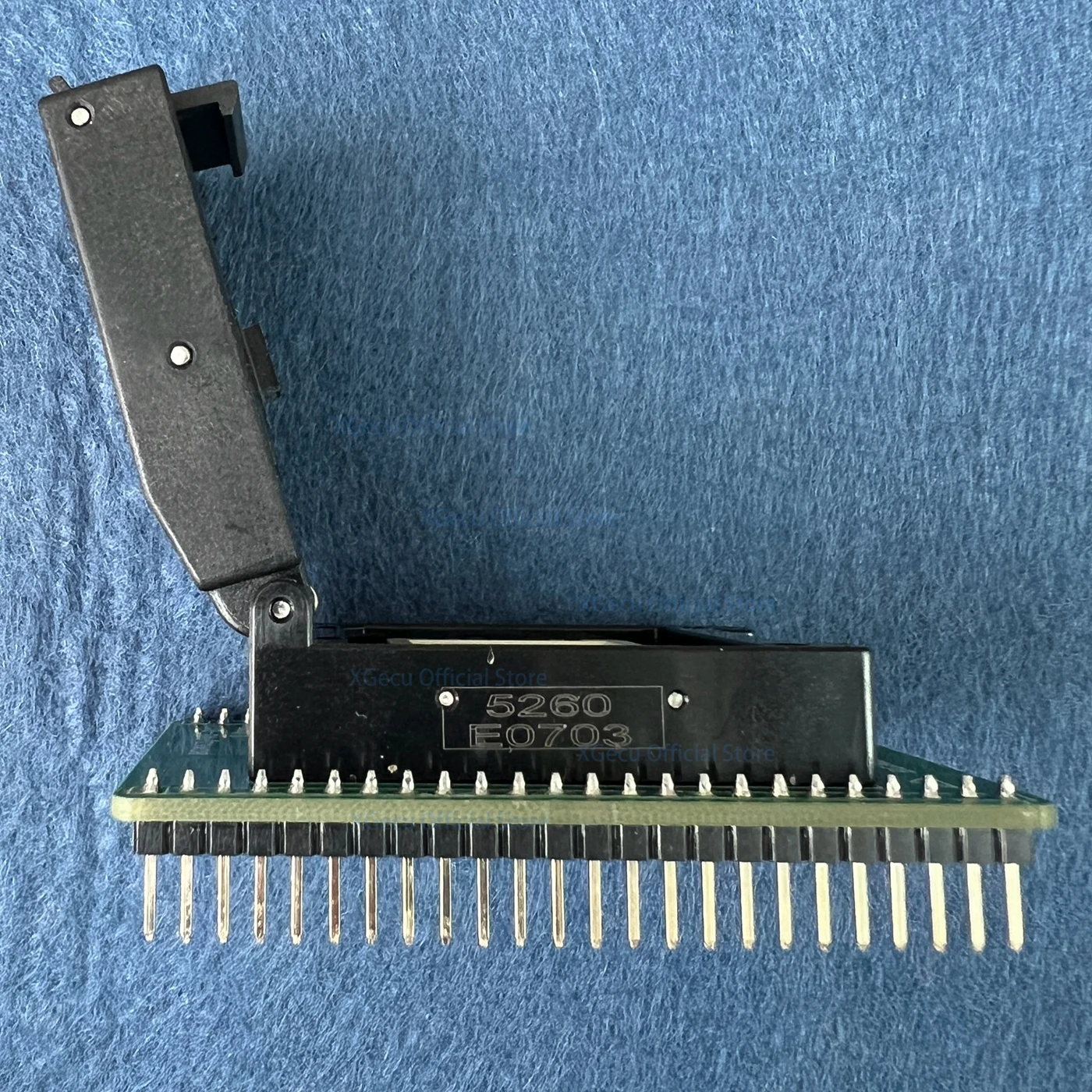

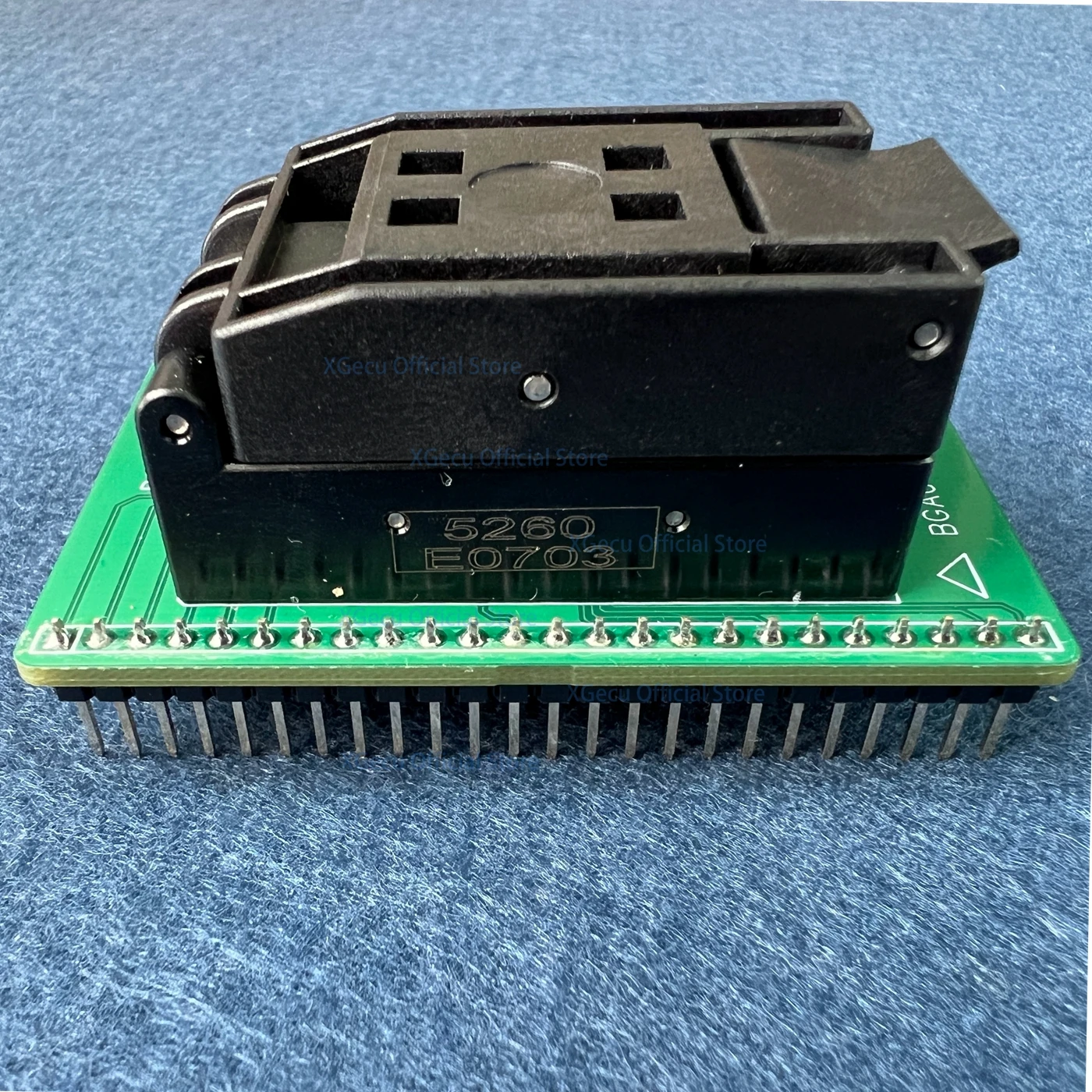

- **BGA63/48 Socket** × 1

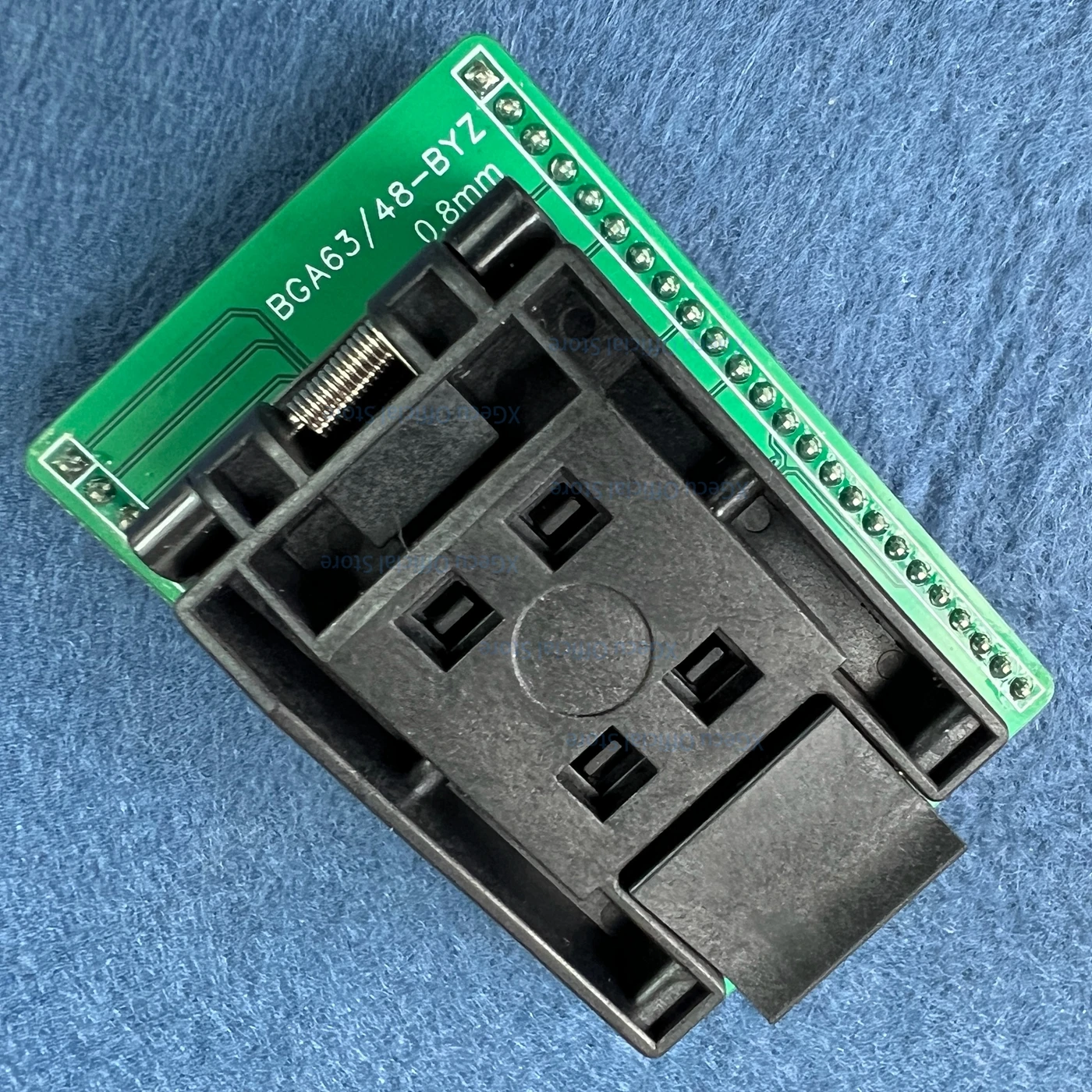

- **BGA48/63 Adapter Top board** × 1
- **T56/76-BGA48 Base board** × 1
- **T56/76-BGA63 Base board** × 1
- **BGA63 Positioning Frames** × 5 (Sizes: 11×12 / 10.5×13 / 8×10 / 10×11 / 11×9)
- **BGA48 Positioning Frames** × 5 (Sizes: 6.15×8.15 / 6.5×8 / 6×10 / 10×8 / 6×8)
**Usage Instructions:**
1. **Install the Base board:** Depending on your needs, install the BGA48 or BGA63 conversion PCB onto the T56 or T76 programmer.
2. **Replace the Positioning Frame:** Select the corresponding positioning frame based on the size of the chip to be programmed. The frame can be easily replaced without any tools.
3. **Insert the Chip:** Place the chip into the positioning frame, ensuring proper alignment to prevent poor contact.
4. **Connect the Programmer:** Connect the XGecu T56 or T76 programmer to begin chip read and write operations.
**Precautions:**
- Ensure the chip package matches the size of the positioning frame to avoid damage to the chip.
- When replacing the positioning frame, handle it with care to avoid damaging the magnetic components.
- To change the programmer's connection board, simply remove the existing conversion PCB and replace it with another specification, ensuring a straightforward operation.
**Friendly Reminder:**
- The sockets in this set support BGA48 and BGA63 dual specifications for chip programming.
- By replacing the adapter base and Positioning frame, users can flexibly switch between the T56 and T76 programmers, accommodating various specifications of BGA chips to meet different usage scenarios.
